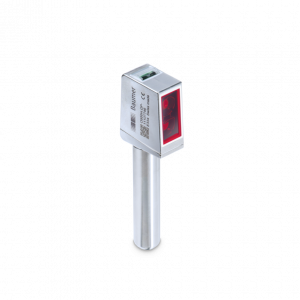

O500H.RP.T-GW1J.PVOK - Retro-reflective sensors - hygiene

O500H.RP.T-GW1J.PVOK - Retro-reflective sensors - hygiene
  • retro-reflective sensor
  • 5,5 m
  • pulsed PinPoint LED
  • push-pull
  • Teach-in and IO-Link
  • flylead connector M12, L=300 mm
  • -25 … 60 °C
  • IP 68/69K & proTect+
Objednací číslo: 11157356
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Retro-reflective sensor
Speciální typ: Hygienic design
Verze: Transparency object detection
Zdroj světla: Pulsed PinPoint LED
Skutečný rozsah Sb: 5.5 m
jmenovitý rozsah: 6 m
Polarizační filtr: Yes
Minimální útlum signálu: 10 % / 20 % / 30 %
Světelný indikátor: LED yellow
Indikace napájení: LED green
Nastavení citlivosti: Teach-in and IO-Link
Vlnová délka: 630 nm
Potlačení vzájemného ovlivňování: Yes
Odklon od osy: < 1°
Schválení | Osvědčení:
  • Ecolab
  • Adapted from EHEDG

Elektrické parametry

Doba odezvy: < 0.25 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 35 mA
Běžná spotřeba proudu: 30 mA
Pokles napětí Vd: <3 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: Push-pull
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 20.2 mm
Výška | Délka: 47.7 mm
Hloubka: 36.4 mm
Konstrukce: Rectangular
Materiál pouzdra: Stainless steel 1.4404 (V4A)
Materiál krycího skla: PMMA
Způsoby připojení: Flylead connector M12, L=300 mm

Okolní podmínky

Pracovní teplota: -25 - +60 °C
Třída krytí: IP 68/69K & proTect+
