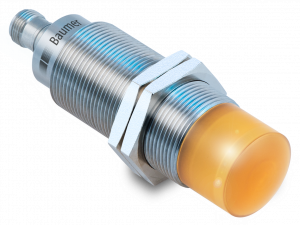

RR30.DAJ2-IGPI.9CF/P043

Small blind range 0.2 m
IO-Link and analog output (current 4–20 mA)
Wide beam 12° opening angle
Suitable for structured surfaces (e.g. stones)
Economy version with adapted performance

Objednací číslo: 11230003
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

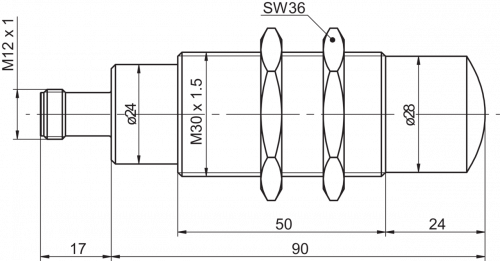

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	0.3 - 12 m
Minimální vzdálenost rozsahu Sdc:	0.3 - 12 m
Maximální vzdálenost rozsahu Sde:	0.3 - 12 m (0.2-.18 m IO-Link)
Opakovatelnost:	< 4 mm
Doba sepnutí ton:	< 40 ms, adjustable via IO-Link to 12 ms
Doba vypnutí toff:	< 40 ms, adjustable via IO-Link to 12 ms
Teplotní drift:	<± 10 mm (Full Scale)
Teplotní drift po zapnutí:	< 2 mm compensated after 20 min.
Nastavení:	IO-Link
Nosná frekvence:	122 GHz
Šířka pásma:	1 GHz
Hystereze typ.:	5 % (adjustable via IO-Link)
Chyba linearity:	< ± 20 mm (<1m) < ± 6 mm (>1m)
Typ modulace:	FMCW
Vyzařovací výkon (EIRP):	< +20 dBm
Vyzařovací úhel:	6 °
MTTF:	> 126 years
Schválení \| Osvědčení:	FCC / CFR-47 part 18 (USA) RSS-210 Issue 10 (Canada) EN 305 550-1 V.1.2.1 (European Union) EN 305 550-2 V.1.2.1 (European Union)

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	220 mA
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND
Výstupní obvod:	Current output / push-pull
Výstupní signál:	4 ... 20 mA / 20 ... 4 mA
Výstupní proud:	<100 mA
Pokles napětí Vd:	<2.5 VDC

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Materiál aktivní části:	Plastics (PEI)
Šířka \| průměr:	30 mm
Výška \| Délka:	107 mm
Způsoby připojení:	Connector M12

Okolní podmínky

Pracovní teplota:	-40 - +65 °C
Skladovací teplota:	-40 - +85 °C
Třída krytí:	IP 68/69K

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 4 ms
Procesní data:	208 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement Bit 48-207 = 5 Peak data (16Bit distance; 16Bit amplitude)
IO-Link připojení:	Class A
Nastavitelné parametry:	Switching point Switching window definition Switching hysteresis Measured value filtering Measuring range Time filters Signal sensitivity Signal selection (1. / 2. / strongest / last) Tracking mode Output logic Output circuit Counter Analog output characteristic LED-function Deactivate sending antenna Find Me function

Příslušenství

Obsahuje:Odrazky Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem

Odrazky

Další podobné produkty naleznete v kategorii: Odrazky

Produkt (3) / Popis	Produktová skupina	Skladová dostupnost
ZREFL-RAD.CCUBE100 - Metal reflector as corner cube, edge length 100 mm Metal reflector in corner cube design For radar sensors Material: Steel Reliable object detection	Odrazky	na dotaz
ZREFL-RAD.CCUBE200 - Metal reflector as corner cube, edge length 200 mm Metal reflector in corner cube design For radar sensors Material: Steel Reliable object detection	Odrazky	na dotaz
ZREFL-RAD.CCUBE30 - Metal reflector as corner cube, edge length 30 mm Metal reflector in corner cube design For radar sensors Material: Steel Reliable object detection	Odrazky	na dotaz

Periferie

Další podobné produkty naleznete v kategorii: Periferie

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	USB-C IO-Link Master		8 ks
	ZUSDF-M30 - Sonic beam deflector series 30 rectangular	Periferie	na dotaz

Montážní příslušenství

Foto	Produkt (13)
	11200030 - Sensofix series 30
	Mounting base
	Mounting plate ø30 mm
	Mounting rod 200 mm
	Mounting rod 250 mm
	Mounting rod 300 mm
	Mounting rod with mounting plate holder 200 mm
	Mounting rod with mounting plate holder 250 mm
	Mounting rod with mounting plate holder 300 mm
	Two-way connector
	ZADAP-M30.LONG - Mounting bracket long series 30 (L design)
	ZADAP-M30.STANDARD - Mounting bracket series 30
	ZPH1-9B13 - Hygienic adapter RR30

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (56) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A5-11230337 M12, female, A-coded, 5-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230338 M12, female, A-coded, 5-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230345 M12, female, A-coded, 5-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230346 M12, female, A-coded, 5-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230351 M12, female, A-coded, 5-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230352 M12, female, A-coded, 5-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230353 M12, female, A-coded, 5-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230357 M12, female, A-coded, 5-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230449 M12, female, A-coded; 5-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230450 M12, female, A-coded; 5-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230454 M12, female, A-coded; 5-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230455 M12, female, A-coded; 5-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230974 M12, female, A-coded, 5-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230977 M12, female, A-coded, 5-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230981 M12, female, A-coded, 5-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230982 M12, female, A-coded, 5-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230987 M12, female, A-coded; 5-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230988 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11230989 M12, female, A-coded; 5-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230990 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11230997 M12, female, A-coded; 5-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230998 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11230999 M12, female, A-coded; 5-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11231000 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11232985 M12, female, A-coded, 5-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11232986 M12, female, A-coded, 5-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11232987 M12, female, A-coded, 5-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11232988 M12, female, A-coded, 5-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11232995 M12, female, A-coded, 5-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11232996 M12, female, A-coded, 5-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11232997 M12, female, A-coded, 5-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11232998 M12, female, A-coded, 5-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233005 M12, female, A-coded, 5-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11233006 M12, female, A-coded, 5-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11233007 M12, female, A-coded, 5-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11233008 M12, female, A-coded, 5-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233010 M12, female, A-coded, 5-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11233011 M12, female, A-coded, 5-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11233012 M12, female, A-coded, 5-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11233013 M12, female, A-coded, 5-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233025 M12, female, A-coded; 5-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233026 M12, female, A-coded; 5-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233027 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233028 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A5-11233030 M12, female, A-coded; 5-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233031 M12, female, A-coded; 5-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233032 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233033 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A5-11233050 M12, female, A-coded; 5-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233051 M12, female, A-coded; 5-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233052 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233053 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A5-11233055 M12, female, A-coded; 5-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233056 M12, female, A-coded; 5-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233057 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233058 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (21) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A5-11230402 M12, female, A-coded, 5-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A5-11230406 M12, female, A-coded, 5-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230451 M12, female, A-coded; 5-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A5-11230975 M12, female, A-coded, 5-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A5-11230976 M12, female, A-coded, 5-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A5-11230978 M12, female, A-coded, 5-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230979 M12, female, A-coded, 5-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A5-11230991 M12, female, A-coded; 5-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A5-11230992 M12, female, A-coded; 5-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A5-11232990 M12, female, A-coded, 5-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A5-11232991 M12, female, A-coded, 5-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A5-11232992 M12, female, A-coded, 5-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A5-11232993 M12, female, A-coded, 5-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A5-11233000 M12, female, A-coded, 5-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A5-11233001 M12, female, A-coded, 5-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A5-11233002 M12, female, A-coded, 5-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A5-11233003 M12, female, A-coded, 5-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A5-11233035 M12, female, A-coded; 5-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A5-11233036 M12, female, A-coded; 5-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A5-11233037 M12, female, A-coded; 5-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A5-11233038 M12, female, A-coded; 5-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

Produkt (15)	Výstup/Rozhraní	Typ připojení	Skladová dostupnost
R600V.DAE0-11188367 - Off-Highway radar sensor for ground and crop distance	CAN (5 V), CAN SAE J1939	Konektor	na dotaz
R600V.DAE0-11209335 - Off-Highway radar sensor for ground and crop distance (for sprayer applications)	CAN (5 V), CAN SAE J1939	Konektor	na dotaz
R600V.DAH5-11205779 - Off-Highway radar sensor	CAN (5 V), CAN SAE J1939	Konektor	na dotaz
R600V.DAH5-11221283 - Off-Highway multi-object radar sensor	CAN (5 V), CAN SAE J1939	Konektor	na dotaz
RR30.DAF0-GGPI.9VF/E029	IO-Link	Konektor	na dotaz
RR30.DAF0-IGPI.9CF/E029_P043	Proudový	Konektor	na dotaz
RR30.DAF0-IGPI.9VF/E029	Proudový	Konektor	1 ks
RR30.DAH5-IGPB.9VF	Proudový	Konektor	na dotaz
RR30.DAJ2-GGPI.9VF	IO-Link	Konektor	na dotaz
RR30.DAJ2-IGPI.9CF/P043	Proudový	Konektor	na dotaz
RR30.DAJ2-IGPI.9VF	Proudový	Konektor	na dotaz
RR30.DAM0-IGPB.9VF	Proudový	Konektor	1 ks
RR30.DAM0-UGPB.9VF	Napěťový push-pull	Konektor	na dotaz
RR30.DAO0-GGPI.9VF	IO-Link	Konektor	na dotaz
RR30.DAO0-IGPI.9VF	Proudový	Konektor	1 ks
