RR30.DAJ2-GGPI.9VF

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Universal measurement range 0.3 m to 12 m (18 m IO-Link)
Push-pull and IO-Link output
Narrow beam 6° opening angle
Suitable for distance measurement of all kinds
Ideal for level measurement in large containers

Objednací číslo: 11221309
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	0.3 - 12 m
Minimální vzdálenost rozsahu Sdc:	0.3 - 12 m
Maximální vzdálenost rozsahu Sde:	0.3 - 12 m
Verze:	IO-Link dual channel
Opakovatelnost:	1 mm
Doba sepnutí ton:	< 40 ms
Doba vypnutí toff:	< 40 ms
Teplotní drift:	<± 10 mm (Full Scale)
Teplotní drift po zapnutí:	Compensated after 20 min.
Nastavení:	IO-Link
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Nosná frekvence:	122 - 123 GHz
Šířka pásma:	1 GHz
Rozsah rozlišení:	500 mm
Hystereze typ.:	5 % Sde
Chyba linearity:	± 10 mm
Typ modulace:	FMCW
Vyzařovací výkon (EIRP):	< +20 dBm
Vyzařovací úhel:	6 °
MTTF:	> 126 years
Schválení \| Osvědčení:	Ecolab FCC / CFR-47 part 15 (USA) RSS-210 Issue 10 (Canada) EN 305 550-1 V.1.2.1 (European Union) EN 305 550-2 V.1.2.1 (European Union)

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	200 mA
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND
Výstupní obvod:	IO-Link / push-pull
Výstupní proud:	100 mA 50 mA (out 2)
Pokles napětí Vd:	<2.5 VDC

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Stainless steel 1.4404 (V4A)
Šířka \| průměr:	30 mm
Výška \| Délka:	107 mm
Způsoby připojení:	Connector M12

Okolní podmínky

Pracovní teplota:	-40 - +65 °C
Skladovací teplota:	-40 - +85 °C
Třída krytí:	IP 68/69K & proTect+

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 4 ms
Procesní data:	208 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement Bit 48-207 = 5 Peak (32 Bit Daten)
IO-Link připojení:	Class A
Další údaje:	Distance Excess gain Operating cycles Operating hours Boot cycles Operating voltage Device temperature Histograms Velocity
Nastavitelné parametry:	Switching point Switching hysteresis Measured value filtering Measuring range Time filters Output logic Output circuit Counter Analog output characteristic LED status indicators Deactivate the sensor element Find Me function Switching window definition Signal sensitivity Signal selection (1. / 2. / strongest / last) Tracking mode
Předdefinovaný profil:	Precise (standard) Fill level fluid (slow) Fill level fluid (fast) Fill level solid Fast detection Tracking (slow) Tracking (standard) Tracking (fast)

Nákresy

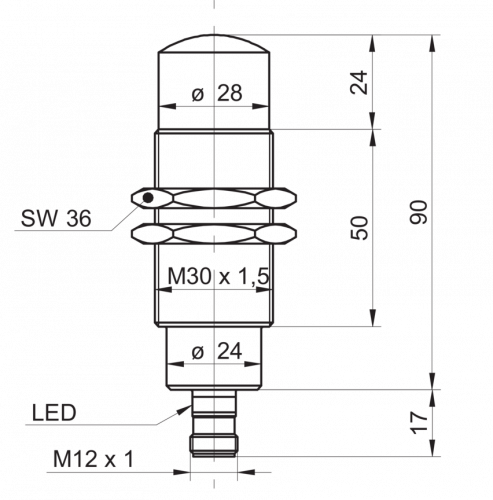

Výkresy

4668-RR30_oTeach.png | stáhnout (png, 2025-07-12 03:43:16)

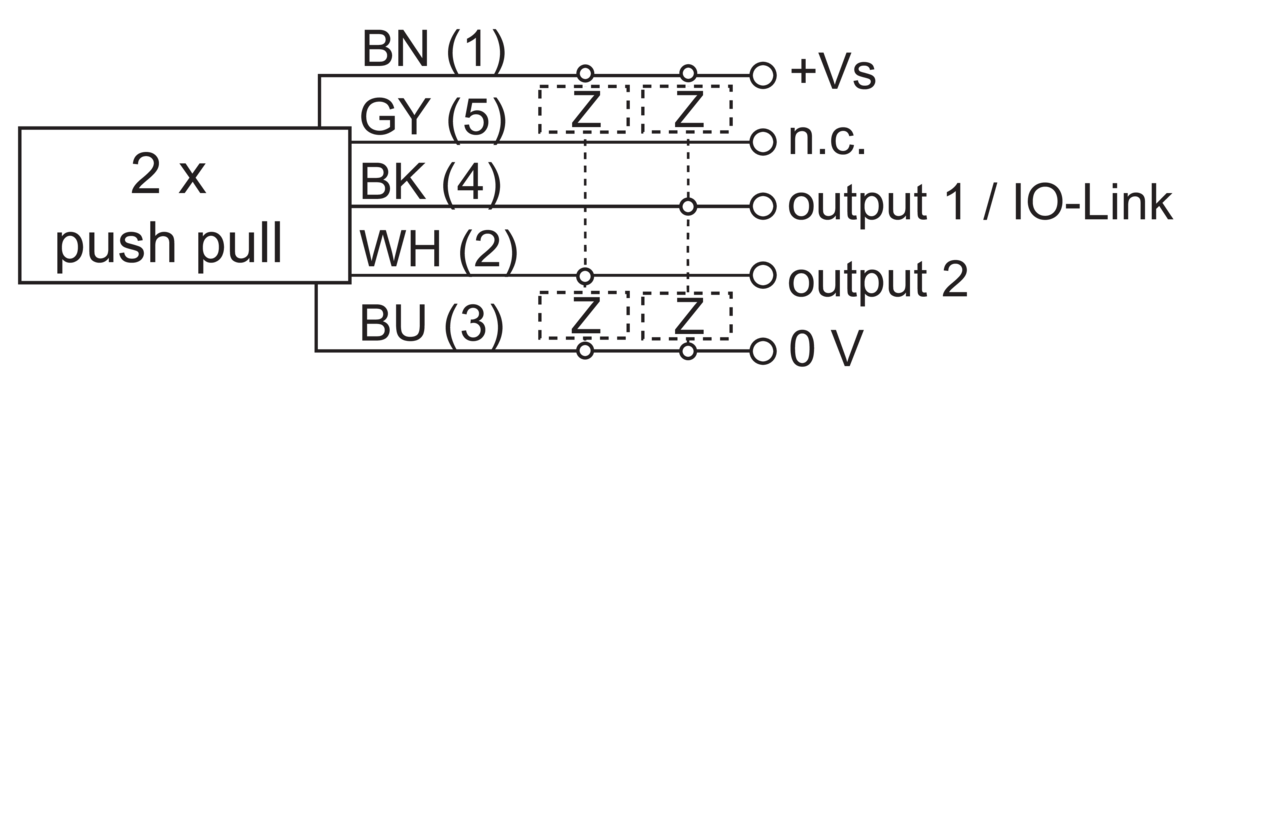

Diagram připojení

Zchn-6100-2PPIO-1.png | stáhnout (png, 2025-07-12 03:56:32)

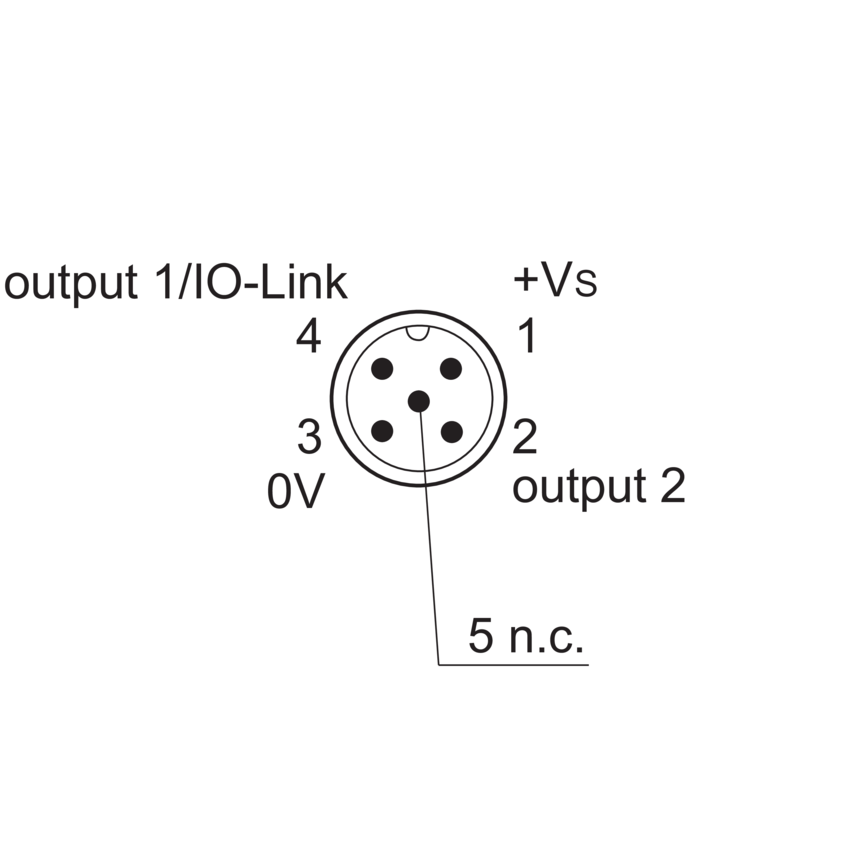

Přiřazení pinů

Zchn-4046-20.png | stáhnout (png, 2025-07-12 03:56:22)

Ke stažení

Datový list

Data sheet – RR30.DAJ2-GGPI.9VF | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:40:08)
Data sheet – RR30.DAJ2-GGPI.9VF | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:40:08)
Data sheet – RR30.DAJ2-GGPI.9VF | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:40:08)

Rychlý start

Quickstart – RR30.DAJ2-GGPI.9VF | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:09:46)

Příručka k softwaru

Operating instruction – RR30 IO-Link | stáhnout | zobrazit (EN, pdf, 2025-04-11 12:01:32)

Certifikáty/ osvědčení

DoC / CoC - RR30 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:40:06)

CAD

RR30.DAJ2-GGPI.9VF / IGES | stáhnout (zip, 2025-04-28 18:41:13)
RR30.DAJ2-GGPI.9VF / STEP | stáhnout (zip, 2025-07-11 17:00:38)
RR30.DAJ2-GGPI.9VF / PARASOLIDS | stáhnout (zip, 2025-04-28 18:41:12)
ePlan macro - 11221309 | stáhnout (edz, 2023-09-20 09:51:37)

Software

Software – IODD V1.1 (RR30.DAxx-GGPI) | stáhnout (zip, 2025-07-11 17:00:42)
