RR30.DAF0-IGPI.9CF/E029_P043

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Small blind range 0.2 m
IO-Link and analog output (current 4–20 mA)
Wide beam 12° opening angle
Suitable for structured surfaces (e.g. stones)
Ideal for level measurement in small containers
Economy version with adapted performance

Objednací číslo: 11230002
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Meřicí rozsah:	0.2 - 6 m
Minimální vzdálenost rozsahu Sdc:	0.2 - 6 m
Maximální vzdálenost rozsahu Sde:	0.2 - 6 m
Opakovatelnost:	< 4 mm
Doba sepnutí ton:	< 40 ms, adjustable via IO-Link to 12 ms
Doba vypnutí toff:	< 40 ms, adjustable via IO-Link to 12 ms
Teplotní drift:	<± 10 mm (Full Scale)
Teplotní drift po zapnutí:	< 2 mm compensated after 20 min.
Nastavení:	IO-Link
Nosná frekvence:	122 GHz
Šířka pásma:	1 GHz
Rozsah rozlišení:	500 mm
Hystereze typ.:	5 % (adjustable via IO-Link)
Chyba linearity:	< ± 10 mm (<1m) < ± 3 mm (>1m)
Typ modulace:	FMCW
Vyzařovací výkon (EIRP):	< +20 dBm
Vyzařovací úhel:	12 °
MTTF:	> 126 years
Schválení \| Osvědčení:	FCC / CFR-47 part 18 (USA) RSS-210 Issue 10 (Canada) EN 305 550-1 V.1.2.1 (European Union) EN 305 550-2 V.1.2.1 (European Union)

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	220 mA
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND
Výstupní obvod:	Current output / push-pull
Výstupní signál:	4 ... 20 mA / 20 ... 4 mA
Výstupní proud:	<100 mA
Pokles napětí Vd:	<2.5 VDC

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál pouzdra:	Brass nickel plated
Materiál aktivní části:	Plastics (PEI)
Šířka \| průměr:	30 mm
Výška \| Délka:	97 mm
Způsoby připojení:	Connector M12

Okolní podmínky

Pracovní teplota:	-40 - +65 °C
Skladovací teplota:	-40 - +85 °C
Třída krytí:	IP 68/69K

Komunikační rozhraní

Rozhraní:	IO-Link V1.1
Modulační rychlost (baud rate):	230.4 kBaud (COM 3)
Čas cyklu:	≥ 4 ms
Procesní data:	208 Bit
Struktura procesních dat:	Bit 0 = SSC1 (distance) Bit 1 = SSC2 (distance) Bit 2 = quality Bit 3 = alarm Bit 5 = SSC4 (counter) Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement Bit 48-207 = 5 Peak data (16Bit distance; 16Bit amplitude)
IO-Link připojení:	Class A
Nastavitelné parametry:	Switching point Switching window definition Switching hysteresis Measured value filtering Measuring range Time filters Signal sensitivity Signal selection (1. / 2. / strongest / last) Tracking mode Output logic Output circuit Counter Analog output characteristic LED-function Deactivate sending antenna Find Me function

Nákresy

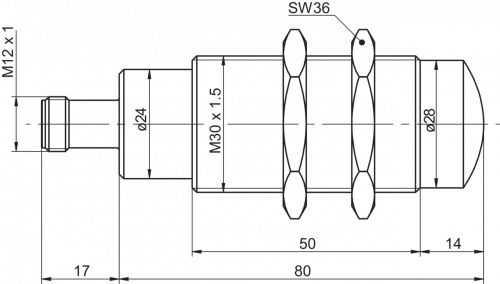

Výkresy

85010178-a.png | stáhnout (png, 2025-07-12 05:46:47)

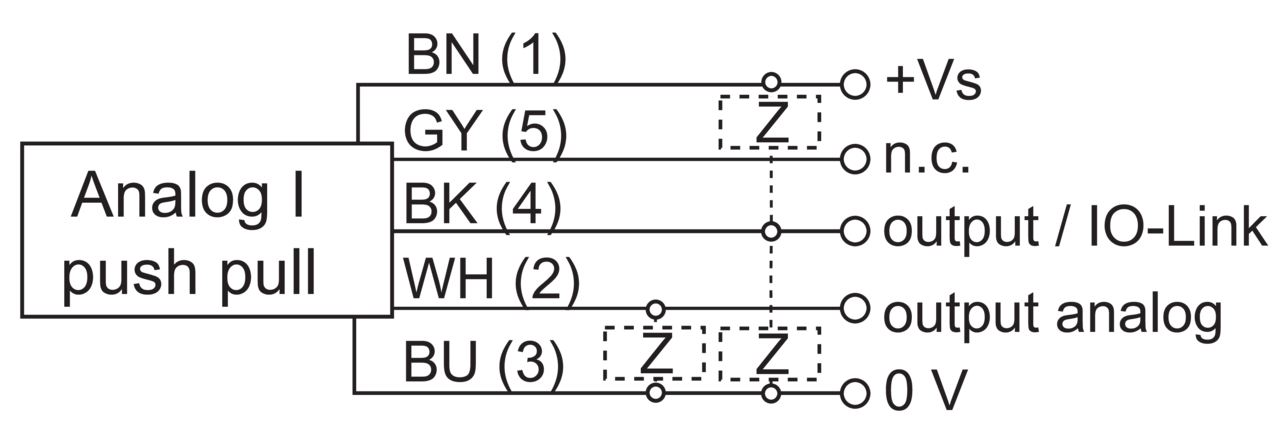

Diagram připojení

Zchn-6100-AIPPIO.png | stáhnout (png, 2025-07-12 03:56:43)

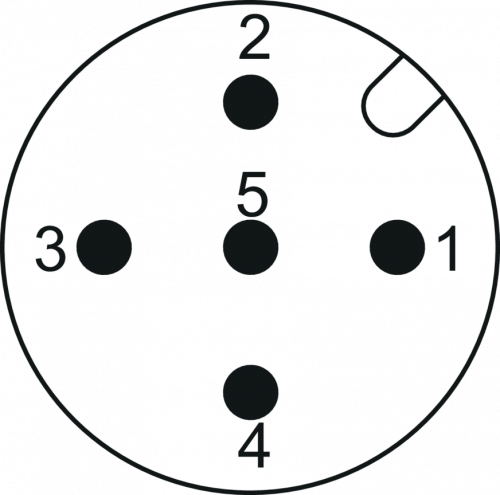

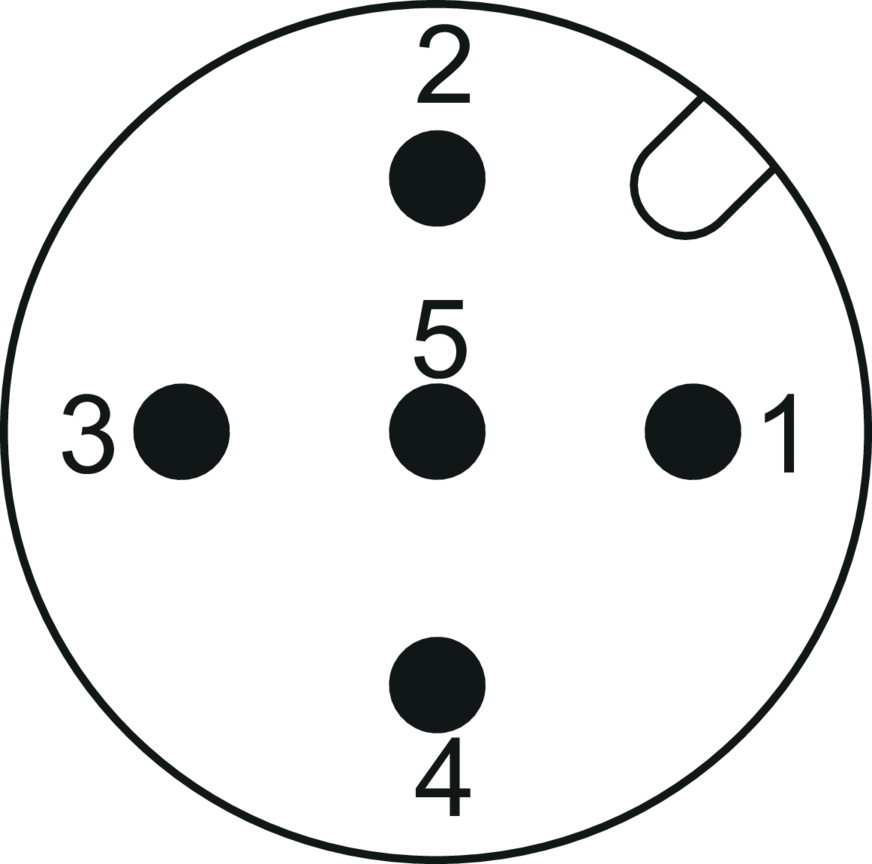

Přiřazení pinů

M12-5Pol-männlich-A_1.png | stáhnout (png, 2025-07-12 05:27:43)

Ke stažení

Datový list

Data sheet – RR30.DAF0-IGPI.9CF/E029_P043 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:40:07)
Data sheet – RR30.DAF0-IGPI.9CF/E029_P043 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:40:07)

Rychlý start

Quickstart - RR30.DAF0-IGPI.9CF/E029_P043 | stáhnout | zobrazit (EN/DE/FR, pdf, 2025-04-11 12:09:46)

Příručka k softwaru

Operating instruction – RR30 IO-Link | stáhnout | zobrazit (EN, pdf, 2025-04-11 12:01:32)

Certifikáty/ osvědčení

DoC / CoC - RR30 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:40:06)

CAD

RR30.DAF0-IGPI.9CF/E029_P043 / STEP | stáhnout (zip, 2025-07-11 22:14:44)
RR30.DAF0-IGPI.9CF/E029_P043 / IGES | stáhnout (zip, 2025-04-28 17:56:39)
RR30.DAF0-IGPI.9CF/E029_P043 / PARASOLIDS | stáhnout (zip, 2025-04-28 17:56:39)
ePlan macro - 11230002 | stáhnout (edz, 2023-09-20 09:54:43)

Software

IODD V1.1 - RR30.DAF0 | stáhnout (zip, 2025-07-11 20:47:04)
