ZADM 034I220.0021 - Edge sensors

measuring mode: edges, width
22 mm
0… 200 mm
pulsed infrared diode
analog
Teach-in
connector M8 4 pin
55 °C
IP 67

Objednací číslo: 11004221
Výrobce: Baumer Electric AG

Dostupnost: 4 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Martin Bulenínec

Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER | IOSS

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Typ:	Measuring mode: edges, width
Šířka měřicího pole:	22 mm
Měřicí rozsah ve směru objektu:	0 - 200 mm
Nastavení:	Teach-in
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Opakovatelnost:	0.1 mm (S = 0 ... 150 mm) 0.2 mm (S = 150 ... 200 mm)
Chyba linearity:	± 1.75 mm (S = 0 ... 200 mm) ± 1 mm (S = 50 ... 150 mm)
Nejmenší velikost objektu:	3 mm
Rozlišení:	< 0.1 mm (S = 0 ... 150 mm) 0.2 mm (S = 150 ... 200 mm)

Zdroj světla

Zdroj světla:	Pulsed infrared diode
Vlnová délka:	880 nm

Elektrické parametry

Měřicí frekvence:	1100 Hz
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	120 mA
Výstupní obvod:	Analog
Výstupní signál:	4 ... 20 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND
Čas odezvy:	< 0.9 ms

Mechanické parametry

Šířka \| průměr:	34 mm
Konstrukce:	Rectangular, front view
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass

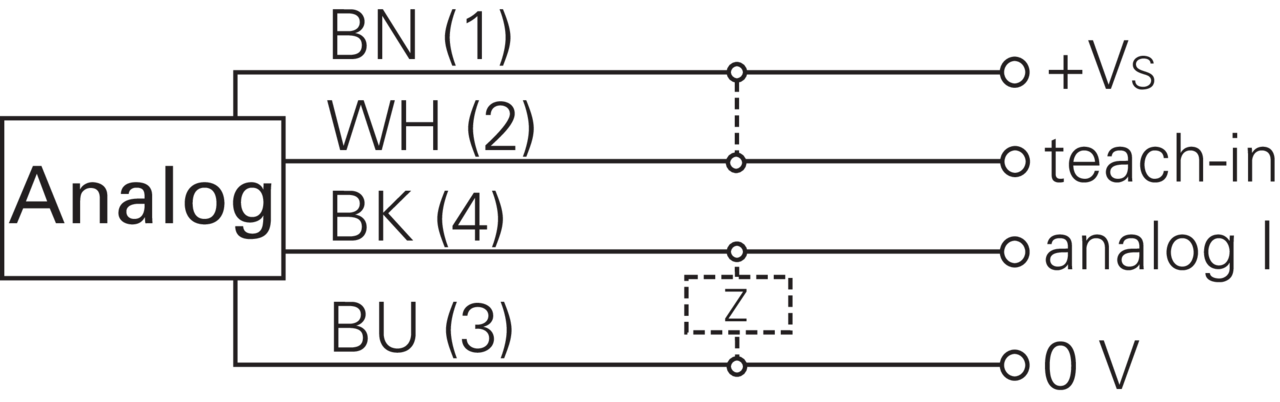

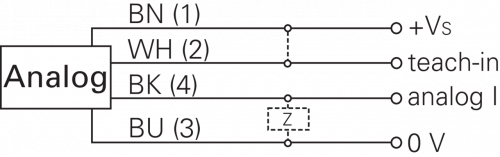

Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	0 - +55 °C
