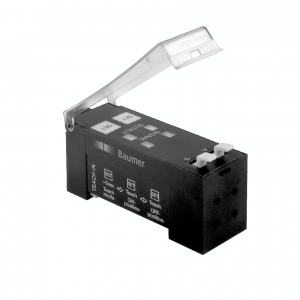

FVDK 22P6501/S14C - Fiber optic sensors

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

pulsed red LED
PNP
Teach-in
connector M12 5 pin
-25 … 55 °C
IP 65

Objednací číslo: 10119655
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Verze:	Integrated alarm output
Snímací vzdálenost:	90 mm
Zdroj světla:	Pulsed red LED
Světelný indikátor:	LED green
Indikace znečištění:	LED green, flashing
Výstupní indikátor:	LED yellow
Nastavení:	Teach-in
Vlnová délka:	660 nm
Potlačení vzájemného ovlivňování:	Yes

Elektrické parametry

Doba odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	68 mA
Běžná spotřeba proudu:	50 mA
Pokles napětí Vd:	<1.8 VDC
Výstupní funkce:	Light / dark operate switchable
Min. délka výstupního pulsu:	40 ms
Výstupní obvod:	PNP
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	22 mm
Výška \| Délka:	33.2 mm
Hloubka:	60 mm
Konstrukce:	Rectangular
Materiál pouzdra:	PBT / PC
Způsoby připojení:	Connector M12 5 pin

Okolní podmínky

Pracovní teplota:	-25 - +55 °C
Třída krytí:	IP 65

Nákresy

Výkresy

1242-FVDK_22_S14C.png | stáhnout (png, 2025-07-11 19:42:12)

Diagram připojení

E-Zchn-0289-C-7.png | stáhnout (png, 2025-07-11 17:30:00)

Ke stažení

Datový list

Data sheet – FVDK 22P6501/S14C | stáhnout | zobrazit (ZH, pdf, 2025-05-13 13:44:24)
Data sheet – FVDK 22P6501/S14C | stáhnout | zobrazit (DE, pdf, 2025-05-13 13:44:22)
Data sheet – FVDK 22P6501/S14C | stáhnout | zobrazit (EN, pdf, 2025-05-13 13:44:22)

Rychlý start

Quickstart – FVDK 22P6501/S14C | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:09:25)

Certifikáty/ osvědčení

DoC / CoC - Fxxx_22 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:28:34)

CAD

FVDK 22P6501/S14C / IGES | stáhnout (zip, 2025-04-28 19:13:30)
FVDK 22P6501/S14C / STEP | stáhnout (zip, 2025-07-11 17:50:43)
FVDK 22P6501/S14C / PARASOLIDS | stáhnout (zip, 2025-04-28 19:13:31)
ePlan macro - 10119655 | stáhnout (edz, 2023-09-20 09:51:02)
