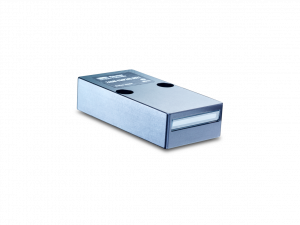

ZADM 034I220.0021 - Snímač hrany Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

measuring mode: edges, width
22 mm
0… 200 mm
pulsed infrared diode
analog
Teach-in
connector M8 4 pin
55 °C
IP 67

Objednací číslo: 11004221
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

Mám dotaz

Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Measuring mode: edges, width
Šířka měřicího pole:	22 mm
Měřicí rozsah ve směru objektu:	0 - 200 mm
Nastavení:	Teach-in
Indikace napájení:	LED green
Výstupní indikátor:	LED yellow
Opakovatelnost:	0.1 mm (S = 0 ... 150 mm) 0.2 mm (S = 150 ... 200 mm)
Chyba linearity:	± 1.75 mm (S = 0 ... 200 mm) ± 1 mm (S = 50 ... 150 mm)
Nejmenší velikost objektu:	3 mm
Rozlišení:	< 0.1 mm (S = 0 ... 150 mm) 0.2 mm (S = 150 ... 200 mm)

Zdroj světla

Zdroj světla:	Pulsed infrared diode
Vlnová délka:	880 nm

Elektrické parametry

Měřicí frekvence:	1100 Hz
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	120 mA
Výstupní obvod:	Analog
Výstupní signál:	4 ... 20 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND
Čas odezvy:	< 0.9 ms

Mechanické parametry

Šířka \| průměr:	34 mm
Konstrukce:	Rectangular, front view
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Třída krytí:	IP 67
Pracovní teplota:	0 - +55 °C

Nákresy

Výkresy

2226-ZADM_034x220.xx21.pdf | stáhnout | zobrazit (pdf, 2025-04-11 11:19:27)

Diagram připojení

Zchn-3565.png | stáhnout (png, 2025-07-11 17:26:10)

Ke stažení

Datový list

Data sheet – ZADM 034I220.0021 | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:58:12)
Data sheet – ZADM 034I220.0021 | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:58:12)
Data sheet – ZADM 034I220.0021 | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:58:12)

Rychlý start

Quickstart – ZADM 034I220.0021 | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:09:52)

Certifikáty/ osvědčení

DoC / CoC - Zxxx_034 | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:58:50)

CAD

ZADM 034I220.0021 / STEP | stáhnout (zip, 2026-03-03 22:52:32)
ePlan macro - 11004221 | stáhnout (edz, 2023-09-20 09:48:25)
