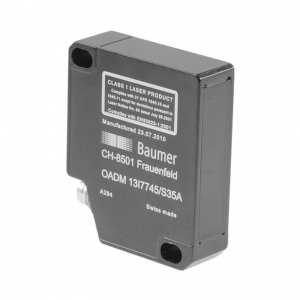

OADM 13U7745/S35A - Distance sensors - miniature

Objednací číslo: 11017091, Výrobce: Baumer Electric AG

60 … 100 mm
pulsed red laser diode
analog
Teach-in: button / external
connector M8 4 pin
50 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Měřicí vzdálenost Sd:	60 - 100 mm
Nastavení:	Teach-in: button / external
Teach-in rozsah - min.:	> 4 mm
Indikace napájení:	LED green
Indikátor znečištění optiky:	LED red
Rozlišení:	15 - 38 µm
Chyba linearity:	± 0.047 - 0.118 mm
Typ paprsku:	Line
Potlačení rušení:	< 30 ms
Odrazivost objektu:	> 0.8 %
Teplotní drift:	< 0,07 % Sde/K

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Vlnová délka:	650 nm
Třída laseru:	1

Elektrické parametry

Doba odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	80 mA
Výstupní obvod:	Analog
Výstupní signál:	0 ... 10 VDC
Odpor zátěže:	> 100 kOhm
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Šířka \| průměr:	13.4 mm
Výška \| Délka:	48.2 mm
Hloubka:	40 mm
Design:	Rectangular
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Odolnost vůči okolnímu osvětlení:	< 100 kLux
Třída krytí:	IP 67
Pracovní teplota:	0 - +50 °C
