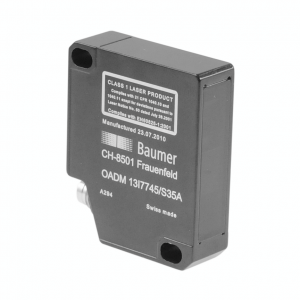

OADM 13I7745/S35A - Distance sensors - miniature

Objednací číslo: 11017068, Výrobce: Baumer Electric AG

60 … 100 mm
pulsed red laser diode
analog
Teach-in: button / external
connector M8 4 pin
50 °C
IP 67

Dostupnost: 2 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Měřicí vzdálenost Sd:	60 - 100 mm
Nastavení:	Teach-in: button / external
Teach-in rozsah - min.:	> 4 mm
Indikace napájení:	LED green
Indikátor znečištění optiky:	LED red
Rozlišení:	15 - 38 µm
Chyba linearity:	± 0.047 - 0.118 mm
Typ paprsku:	Line
Potlačení rušení:	< 30 ms
Odrazivost objektu:	> 0.8 %
Teplotní drift:	< 0,07 % Sde/K

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Vlnová délka:	650 nm
Třída laseru:	1

Elektrické parametry

Doba odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	100 mA
Výstupní obvod:	Analog
Výstupní signál:	4 ... 20 mA
Odpor zátěže:	< (+Vs - 6 V) / 0,02 A
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Šířka \| průměr:	13.4 mm
Výška \| Délka:	48.2 mm
Hloubka:	40 mm
Design:	Rectangular
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Odolnost vůči okolnímu osvětlení:	< 100 kLux
Třída krytí:	IP 67
Pracovní teplota:	0 - +50 °C

Příslušenství

Obsahuje:Periferie Montážní příslušenství Kabely s volným koncem LED-Kabely s volným koncem Kabely

Periferie

Další podobné produkty naleznete v kategorii: Periferie

Foto	Produkt (1)	Produktová skupina	Skladová dostupnost
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Montážní příslušenství

Foto	Produkt (2)	Popis	Produktová skupina	Skladová dostupnost
	10161695 - Mounting bracket for sensors series 13 (L design)	Material: Steel	Montážní příslušenství	na dotaz
	10161829 - Sensofix series 13	Clamps made of stainless steel Ball pivots made of galvanized steel Mounting panel made of stainless steel	Montážní příslušenství	na dotaz

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (28)	Popis	Délka kabelu	Skladová dostupnost
CAM8.A4-11232537	M8, female, A-coded; 4-poles; PUR, 100 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	1 m	na dotaz
CAM8.A4-11232538	M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	2 m	2 ks
CAM8.A4-11232539	M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	3 m	na dotaz
CAM8.A4-11232540	M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	5 m	na dotaz
CAM8.A4-11232541	M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	10 m	na dotaz
CAM8.A4-11232542	M8, female, A-coded; 4-poles; PUR, 1500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	15 m	na dotaz
CAM8.A4-11232543	M8, female, A-coded; 4-poles; PUR, 2000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against flames and oils Halogen free	20 m	na dotaz
CAM8.A4-11232545	M8, female, A-coded; 4-poles; PUR, 100 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	1 m	na dotaz
CAM8.A4-11232546	M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	2 m	na dotaz
CAM8.A4-11232547	M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	3 m	na dotaz
CAM8.A4-11232548	M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	5 m	na dotaz
CAM8.A4-11232549	M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	10 m	na dotaz
CAM8.A4-11232550	M8, female, A-coded; 4-poles; PUR, 1500 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	15 m	na dotaz
CAM8.A4-11232551	M8, female, A-coded; 4-poles; PUR, 2000 cm, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	20 m	na dotaz
CAM8.A4-11232562	M8, female, A-coded; 4-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A4-11232563	M8, female, A-coded; 4-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A4-11232564	M8, female, A-coded; 4-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A4-11232565	M8, female, A-coded; 4-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A4-11232566	M8, female, A-coded; 4-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A4-11232567	M8, female, A-coded; 4-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A4-11232568	M8, female, A-coded; 4-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A4-11232570	M8, female, A-coded; 4-poles; PUR, shielded, 100 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	1 m	na dotaz
CAM8.A4-11232571	M8, female, A-coded; 4-poles; PUR, shielded, 200 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	2 m	na dotaz
CAM8.A4-11232572	M8, female, A-coded; 4-poles; PUR, shielded, 300 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	3 m	na dotaz
CAM8.A4-11232573	M8, female, A-coded; 4-poles; PUR, shielded, 500 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	5 m	na dotaz
CAM8.A4-11232574	M8, female, A-coded; 4-poles; PUR, shielded, 1000 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	10 m	na dotaz
CAM8.A4-11232575	M8, female, A-coded; 4-poles; PUR, shielded, 1500 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	15 m	na dotaz
CAM8.A4-11232576	M8, female, A-coded; 4-poles; PUR, shielded, 2000 cm, free cable end Dragchain capable Head A: IP65, IP67 Cable: good resistance against chemicals, flames and oils Halogen free	20 m	na dotaz

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (7)	Popis	Délka kabelu	Skladová dostupnost
CAM8.A4-11232553	M8, female, A-coded; 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM8.A4-11232554	M8, female, A-coded; 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM8.A4-11232555	M8, female, A-coded; 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM8.A4-11232556	M8, female, A-coded; 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM8.A4-11232557	M8, female, A-coded; 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM8.A4-11232558	M8, female, A-coded; 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM8.A4-11232559	M8, female, A-coded; 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (42)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A3-11230431	M12, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A3-11230871	M12, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A3-11230872	M12, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A3-11230873	M12, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A3-11230874	M12, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A3-11232969	M12, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A3-11232970	M12, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 3-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11230429	M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230430	M12, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230432	M12, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230433	M12, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230949	M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230950	M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230951	M12, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230952	M12, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230953	M12, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232951	M12, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232952	M12, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232954	M12, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232955	M12, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232956	M12, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11230509	M8, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11230514	M8, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11230515	M8, male, A-coded, 3-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A3-11231058	M8, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11231059	M8, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11231063	M8, male, A-coded, 3-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A3-11231064	M8, male, A-coded, 3-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A3-11233223	M8, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11233224	M8, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11233225	M8, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A3-11233227	M8, male, A-coded, 3-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A3-11233228	M8, male, A-coded, 3-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A3-11233229	M8, male, A-coded, 3-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A3-11233230	M8, male, A-coded, 3-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM8.A4-11230374	M8, male, A-coded, 4-poles; PUR, 100 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM8.A4-11230375	M8, male, A-coded, 4-poles; PUR, 200 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM8.A4-11230519	M8, male, A-coded, 4-poles; PUR, 500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM8.A4-11231071	M8, male, A-coded, 4-poles; PUR, 300 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM8.A4-11231072	M8, male, A-coded, 4-poles; PUR, 1000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM8.A4-11231073	M8, male, A-coded, 4-poles; PUR, 1500 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM8.A4-11233221	M8, male, A-coded, 4-poles; PUR, 2000 cm; M8, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz

Název produktu	Počet na skladě
OADM 13I7745/S35A	2 ks
