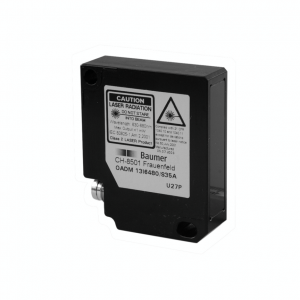

OADM 13I7480/S35A - Distance sensors - miniature

Objednací číslo: 11017093, Výrobce: Baumer Electric AG

50 … 550 mm
pulsed red laser diode
analog
Teach-in: button / external
connector M8 4 pin
50 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Měřicí vzdálenost Sd:	50 - 550 mm
Rozměr paprsku:	1 mm
Nastavení:	Teach-in: button / external
Teach-in rozsah - min.:	> 10 mm
Indikace napájení:	LED green
Indikátor znečištění optiky:	LED red
Rozlišení:	10 - 1150 µm
Chyba linearity:	± 0.08 - 3.5 mm
Typ paprsku:	Point
Potlačení rušení:	< 30 ms
Teplotní drift:	< 0,07 % Sde/K

Zdroj světla

Zdroj světla:	Pulsed red laser diode
Vlnová délka:	650 nm
Třída laseru:	2

Elektrické parametry

Doba odezvy:	< 2 ms
Rozsah napájecího napětí +Vs:	12 - 28 VDC
Maximální spotřeba proudu (bez zátěže):	100 mA
Výstupní obvod:	Analog
Výstupní signál:	4 ... 20 mA
Odpor zátěže:	< (+Vs - 6 V) / 0,02 A
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes, Vs to GND

Mechanické parametry

Šířka \| průměr:	13.4 mm
Výška \| Délka:	48.2 mm
Hloubka:	40 mm
Design:	Rectangular
Materiál pouzdra:	Aluminum
Materiál krycího skla:	Glass
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Odolnost vůči okolnímu osvětlení:	< 40 kLux
Třída krytí:	IP 67
Pracovní teplota:	0 - +50 °C
