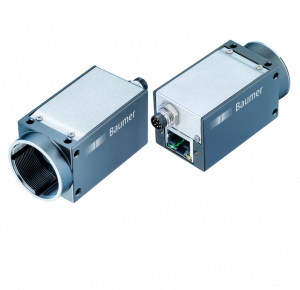

VCXG-23C

Objednací číslo: 11165942, Výrobce: Baumer Electric AG

1920 x 1200 px
Sony IMX174
1/1.2" CMOS
53 fps
Gigabit Ethernet

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Karel Fintes

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

karel.fintes@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	Sony IMX174 Gen1
Mono/Color:	Color
Typ snímače:	1/1.2" CMOS
Typ závěrky:	Global shutter
Rozlišení:	1920 × 1200 px
Rozměry pixelu:	5.86 × 5.86 µm
Expoziční čas:	0.035 - 60000 ms

Kvalita dat (EMVA 1288)

Temný šum:	6.2 e-
Saturační kapacita:	31887 e-
Dynamický rozsah:	73 dB
Poměr signál/šum:	45 dB
Kvantová účinnost:	55.6 % @ 465 nm 60.7 % @ 536 nm 47.1 % @ 631 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 1920 × 1200 px, max. 53 fps Binning 2×2, 960 × 600 px, max. 82 fps Binning 2×1, 960 × 1200 px, max. 82 fps Binning 1×2, 1920 × 600 px, max. 82 fps
Formáty obrazu, maximální frekvence sběru snímků (Burst Mód):	Full Frame, 1920 × 1200 px, max. 82 fps
Formát pixelu:	BayerRG8 BayerRG10 BayerRG12 BayerRG12 Packed Mono8 Mono10 Mono12 Mono12 Packed RGB8 BGR8

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 48 dB) Offset (0 - 255 LSB 12 Bit)
Barevné modely:	Mono Raw Bayer RGB

Funkce kamery

Základní funkce:	Exposure Gain / Color Gain Trigger / Exposure Active (Flash) Binning 2x2 Partial Scan Offset Free Running Mode (Live Image)
Automatické funkce:	Exposure Auto Gain Auto White Balance Auto Color Transformation Auto
Předzpracování obrazu:	Image Flipping (X/Y) Color Processing (RGB, BGR, Mono) Color Enhancement (with optimized ColorTransformationMatrix) LUT / Gamma
Akvizice / Rozhraní:	Burst Mode Adjustable Framerate Device Link Throughput Limit Internal Image Buffer
Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 sec, tracking and buffering of up to 256 trigger signals
Procesní synchronizace:	Events Timer Trigger Delay Debouncer Counter Sequencer Trigger via Action CMD (GigE) Additional Output Modes (e.g. Trigger Ready) Chunk data inside transferred image Encoder support via Counter End trigger source
Další funkce:	User Set Integrated temperature sensor Readable additional information (e.g. sensor information)
Kalibrační údaje:	Integrated color correction matrix (3000 K, 5000 K, 6500 K, 9500 K, and user defined) Customer data storage (128 bytes user defined)
Interní vyrovnávací paměť:	53 MB 8 images (Trigger Mode) 1 image (Free Running Mode)

Rozhraní a připojení

Datové rozhraní:	Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type
Rozhraní:	M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180)
Napájení:	via M8/8 pins or Power over Ethernet (PoE)

Mechanické parametry

Závit objektivu:	C-mount
Šířka:	29 mm
Výška:	29 mm
Hloubka:	49 mm
Hmotnost:	≤ 120 g
Materiál:	zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 2.4 W @ 12 VDC and 53 fps Approx. 2.8 W @ 48 VDC (PoE) and 53 fps

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	0 - +65 ° @ T = measurement point
Skladovací teplota:	-20 - +70 °C
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 40 (with mounted lens and cable)

Digitální vstupy|výstupy

Linky:

1 input line
1 output line
2 general purpose lines

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS
EAC
KC (R-R-BkR-VCXG-23C)
BIS-CRS (R-41207004)
