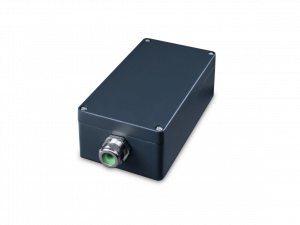

LWL-SBR

Transmission length up to 1500 m
Converting standard square-wave signals into optical signals
Transmission error detection via checksum (CRC)
High-precision transmission of signals (Jitter <100 ns)
Constant delay time <20 μs
Automatic channel switchover in realtime upon failure of one fiber-optic channel
Outdoor box with protection IP 66, IP 67

Objednací číslo: 11126092
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	9...30 VDC
Spotřeba:	≤300 mA
Vstupy:	HTL, TTL
Vstupní signály:	K1, K2, K0 + inverted Err + inverted
Výstup:	2 x fiber-optic
Počáteční čas:	<500 ms
Vlnová délka:	~820 nm
Přenosová vzdálenost:	≤1500 m

Mechanické provedení

Rozměry (Š x V x D):	122 x 81 x 220 mm
Ochrana EN 60529:	IP 66 / IP 67
Okolní teplota:	-20...+70 °C
Přibližná hmotnost:	1800 g
Připojení:	1x cable gland M16x1.5 1x cable gland M20x1.5 1x cable gland M32x1.5 Screw terminal connector 2x ST connector
Typ pouzdra:	Mounting on standard rails according to EN 50022
Materiál:	Housing: aluminium die-cast
