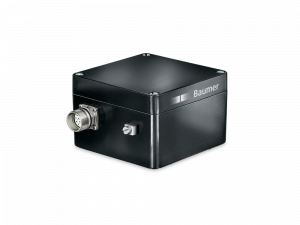

HEAG 159

Converting of SinCos signals into multiplied SinCos signals
Multiplying factor 1...128
Offset and amplitude adjustment
Oversampling with 24 MHz
Digitally pre-filter
High signal quality

Objednací číslo: HEAG159
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	5 VDC ±5 % 10...30 VDC
Spotřeba:	≤500 mA (5 VDC) ≤300 mA (10...30 VDC)
Vstupy:	SinCos 2x SinCos
Vstupní signály:	A+, A-, B+, B-, R+, R-
Výstup:	SinCos Error output
Výstupní signál:	A+, B+, R+, A-, B-, R- Option: A+, B+, R+, A-, B-, R-, Error-
Výstupní frekvence:	≤600 kHz
Maximální rozlišení:	12 bit
Interpolační faktor pro výstup SinCos (násobení):	1-128
Schválení:	CE

Mechanické provedení

Rozměry (Š x V x D):	122 x 122 x 80 mm
Ochrana EN 60529:	IP 65
Pracovní teplota:	0...+50 °C
Odolnost:	IEC 60068-2-6 Vibration 1 g, 50-2000 Hz IEC 60068-2-27 Shock 30 g, 11 ms
Přibližná hmotnost:	1 kg
Připojení:	Connector M23, 12-pin Connector, 3-pin, external voltage supply
