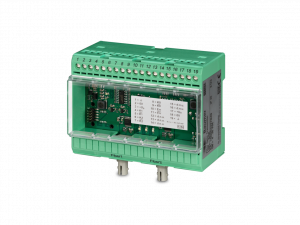

LWL-EHR HTL

Transmission length up to 1500 m
Reconversion of optical signals into electrical signals and generation of status signals
Transmission error detection via checksum (CRC)
High-precision transmission of signals (Jitter <100 ns)
Constant delay time <20 μs
Automatic channel switchover in realtime upon failure of one fiber-optic channel

Objednací číslo: 11090948
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	9...30 VDC
Spotřeba:	≤300 mA
Vstupy:	2 x fiber-optic 2 x error acknowledgement (Ack)
Vstupní signály:	Fiber1, Fiber2, Ack1, Ack2
Vstupní napětí:	Ack >2.5 V
Výstup:	HTL (power linedriver)
Výstupní signál:	K1, K2, K0 + inverted Err + inverted Status S1, status S2, sum status (SSum)
Výstupní frekvence:	≤300 kHz
Výstupní úroveň:	HTL: LOW: ≤0.2 UB; HIGH: ≥0.8 UB
Počáteční čas:	<500 ms
Vlnová délka:	~820 nm
Přenosová vzdálenost:	≤1500 m
Stav výstupu:	S1, S2 (configurable)
LED signalizace stavu:	1x power LED (green) 1x overload LED (red) 1x status LED (green) each channel 1x error LED (red) each channel 1x link LED (green) each channel

Mechanické provedení

Rozměry (Š x V x D):	100 x 75 x 53 mm
Ochrana EN 60529:	IP 20
Pracovní teplota:	-20...+70 °C (without dew)
Přibližná hmotnost:	300 g
Připojení:	Screw terminal connector 2x ST connector
Typ pouzdra:	Mounting on standard rails according to EN 50022

Foto	Produkt (13) / Popis	Skladová dostupnost
	HEAG 150 Signal level shifting from HTL → TTL or TTL → HTL Isolating signal cables to multiple receivers to avoid earth loops Regenerating of signals when transmitting over long distance 1 input unit and 3 output units	na dotaz
	HEAG 158 Converting of SinCos signals into TTL and HTL signals Additional interpolation of the signals (multiplying or dividing) Oversampling with 24 MHz Digitally pre-filter Very high output frequency possible	na dotaz
	HEAG 159 Converting of SinCos signals into multiplied SinCos signals Multiplying factor 1...128 Offset and amplitude adjustment Oversampling with 24 MHz Digitally pre-filter High signal quality	na dotaz
	HEAG 160 Converting of SinCos signals into multiplied SinCos signals Additional interpolation of HTL or TTL signals (multiplying or dividing) Oversampling with 24 MHz Digitally pre-filter Very high output frequency possible	na dotaz
	HEAG171 R ST 65 LWL-Transmitter For high interference locations Converting standard square-wave signals into fiber-optic signals Each channel is coupled onto fiber-optic easy-to-fit plug 3 different plug versions available Delay time over a 100 m length of fiber-optic is 1 µs Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm	na dotaz
	HEAG172 ST 65 LWL-Transmitter For high interference locations Converting standard square-wave signals into fiber-optic signals Each channel is coupled onto fiber-optic easy-to-fit plug 3 different plug versions available Delay time over a 100 m length of fiber-optic is 1 µs Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm	na dotaz
	HEAG173 ST For high interference locations Each channel is coupled onto fiber-optic easy-to-fit plug Reconversion of optical to electrical signals in the receiver control cabinet 3 different plug versions available Delay time over a 100 m length of fiber-optic is 1 µs Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm	na dotaz
	HEAG174 ST For high interference locations Each channel is coupled onto fiber-optic easy-to-fit plug Reconversion of optical to electrical signals in the receiver control cabinet 3 different plug versions available Delay time over a 100 m length of fiber-optic is 1 µs Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm	na dotaz
	HEAG176 ST 20 LWL-Transmitter For high interference locations Converting standard square-wave signals into fiber-optic signals Each channel is coupled onto fiber-optic easy-to-fit plug 3 different plug versions available Delay time over a 100 m length of fiber-optic is 1 µs Except of POF all fiber optic cable usable, e. g. PCF 200 μm, silica fiber 50 and 62.5 μm	na dotaz
	LWL-EHR HTL Transmission length up to 1500 m Reconversion of optical signals into electrical signals and generation of status signals Transmission error detection via checksum (CRC) High-precision transmission of signals (Jitter	na dotaz
	LWL-EHR TTL Transmission length up to 1500 m Reconversion of optical signals into electrical signals and generation of status signals Transmission error detection via checksum (CRC) High-precision transmission of signals (Jitter	na dotaz
	LWL-SBR Transmission length up to 1500 m Converting standard square-wave signals into optical signals Transmission error detection via checksum (CRC) High-precision transmission of signals (Jitter	na dotaz
	LWL-SHR Transmission length up to 1500 m Converting standard square-wave signals into optical signals Transmission error detection via checksum (CRC) High-precision transmission of signals (Jitter	na dotaz
