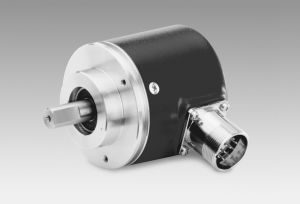

GXU5W - CANopen®

Encoder singleturn / CANopen®
Optical sensing method
Resolution: singleturn 13 bit
Clamping or synchro flange
LED status indicator
CANopen® Profile CIA DSP 406
Permanent check of code continuity

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤50 mA (24 VDC)
Čas inicializace:	250 ms after power on
Rozhraní:	CANopen®
Funkce:	Singleturn
Přenosová rychlost:	10 - 1000 kBaud
Kompatibilita:	CANopen® CiA DSP 406 V 3.0
Pracovní režim:	Event-triggered / Time-triggered Remotely-requested Sync (cyclic) / Sync (acyclic)
Identifikátor:	11 bit
Kroků na otáčku:	≤8192 / 13 bit
Absolutní přesnost:	±0.025 °
Typ snímání:	Optical
Typ kódu:	Binary
Průběh kódu:	CW/CCW programmable
Výstupní signál \| rozhraní:	CAN bus standard ISO / DIS 11898
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Programovatelné parametry:	Operating modes Total resolution Scaling Rotation speed monitoring
Testovací funkce:	Position or parameter error
Indikátor stavu:	DUO-LED integrated in housing
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 mm solid shaft (clamping flange) ø6 mm solid shaft (synchro flange)
Příruba:	Clamping or synchro flange
Ochrana EN 60529:	IP 54 (without shaft seal) IP 65 (with shaft seal)
Provozní rychlost:	≤10000 rpm (mechanical) ≤6000 rpm (electric)
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54) ≤0.03 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru:	20 gcm²
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Materiál:	Housing: steel Flange: aluminium
Pracovní teplota:	-25...+85 °C -40...+85 °C (optional)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 16-2000 Hz EN 60068-2-27 Shock 200 g, 6 ms
Přibližná hmotnost:	500 g
Připojení:	Connector M12, 5-pin Connector M23, 12-pin Connector D-SUB, 9-pin
