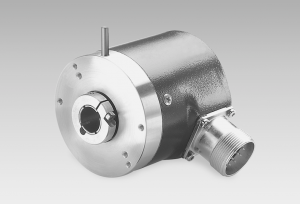

GBP5S - CANopen®

Encoder multiturn / CANopen®
Optical sensing method
Resolution: singleturn 18 bit, multiturn 14 bit
Blind hollow shaft up to ø15 mm
High resistance to shock and vibrations
LED status indicator
CANopen® Profile CIA DSP 406
Permanent check of code continuity
Maximum resistant against magnetic fields

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤50 mA (24 VDC)
Čas inicializace:	250 ms after power on
Rozhraní:	CANopen®
Funkce:	Multiturn
Přenosová rychlost:	10 - 1000 kBaud
Kompatibilita:	CANopen® CiA DSP 406 V 3.0
Pracovní režim:	Event-triggered / Time-triggered Remotely-requested Sync (cyclic) / Sync (acyclic)
Identifikátor:	11 bit
Kroků na otáčku:	≤262144 / 18 bit
Počet otáček:	≤16384 / 14 bit
Absolutní přesnost:	±0.01 °
Typ snímání:	Optical
Typ kódu:	Binary
Průběh kódu:	CW/CCW programmable
Výstupní signál \| rozhraní:	CAN bus standard ISO / DIS 11898
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Programovatelné parametry:	Operating modes Total resolution Scaling Rotation speed monitoring
Testovací funkce:	Position or parameter error Multiturn sensing
Indikátor stavu:	DUO-LED integrated in housing
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø12...15 mm (blind hollow shaft)
Ochrana EN 60529:	IP 54 IP 65 (optional)
Provozní rychlost:	≤6000 rpm (mechanical) ≤6000 rpm (electric)
Rozběhové zrychlení:	≤1000 U/s²
Rozběhový točivý moment:	≤0.015 Nm (+25 °C, IP 54)
Moment setrvačnosti rotoru:	20 gcm²
Materiál:	Housing: steel Flange: aluminium
Pracovní teplota:	-25...+85 °C -40...+85 °C (optional)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 10 g, 16-2000 Hz EN 60068-2-27 Shock 100 g, 4 ms
Přibližná hmotnost:	500 g
Připojení:	Connector M12, 5-pin Connector M23, 12-pin Connector D-SUB, 9-pin
