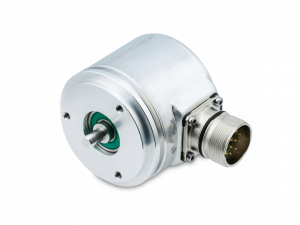

GA241 - SSI

Encoder singleturn / SSI
Optical sensing method
Resolution: 14 bit
Synchro flange
Electronic setting of zero point
Available with additional incremental output

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC 5 VDC ±10 % (on request)
Ochrana proti přepólování:	Yes (10..30 VDC) / No (5 VDC)
Spotřeba:	≤50 mA (24 VDC)
Čas inicializace:	20 ms after power on
Rozhraní:	SSI Incremental A 90° B (optional)
Funkce:	Singleturn
Kroků na otáčku:	≤16384 / 14 bit
Absolutní přesnost:	±0.025 °
Typ snímání:	Optical
Typ kódu:	Gray or binary
Průběh kódu:	CW/CCW coded by connection
Vstupy:	SSI clock Control signals UP/DOWN inv. and zero
Výstupní signál \| rozhraní:	SSI data: Linedriver RS422 Diagnostic outputs push-pull Incremental: push-pull or linedriver RS422
Inkrementální výstup:	2048 pulses A90°B + inverted
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Testovací funkce:	Self-diagnosis
Schválení:	UL approval / E63076

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø6 mm solid shaft
Příruba:	Synchro flange
Ochrana EN 60529:	IP 54 (without shaft seal) IP 65 (with shaft seal)
Provozní rychlost:	≤10000 rpm (mechanical) ≤6000 rpm (electric)
Rozběhový točivý moment:	≤0.01 Nm (+25 °C, IP 54) ≤0.015 Nm (+25 °C, IP 65)
Moment setrvačnosti rotoru:	14.5 gcm²
Přípustné zatížení hřídele:	≤20 N axial ≤40 N radial
Materiál:	Housing: aluminium Flange: aluminium
Pracovní teplota:	-25...+85 °C -40...+85 °C (optional)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz EN 60068-2-27 Shock 200 g, 6 ms
Přibližná hmotnost:	250 g
Připojení:	Connector M23, 12-pin Connector M12, 8-pin Cable 1 m
