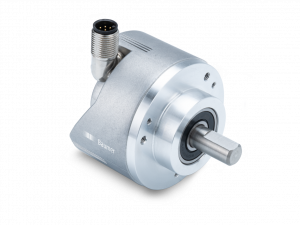

EN580E.IL-SC10.GA1H1.01024.K

Size ø58 mm
Precise optical sensing
Output signal level HTL
Pulses per revolution 1024
High connection flexibility thanks to flexible connector M12

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	8...30 VDC
Ochrana proti přepólování:	Yes
Odolnost proti zkratu:	Yes
Spotřeba:	≤70 mA
Pulzů na otáčku:	1024
Fázový posun:	90 ° ±10°
Střída:	40-60 %
Referenční signál:	Zero pulse, width 90° ±10 %
Typ snímání:	Optical
Výstupní frekvence:	≤160 kHz (HTL)
Výstupní signál:	A+, B+, R+, A-, B-, R-
Výstupní signál \| rozhraní:	HTL/push-pull
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Schválení:	UL-Listing: E217823

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 x 20 mm, solid shaft with flat
Přípustné zatížení hřídele:	≤40 N axial ≤80 N radial
Příruba:	Clamping flange
Ochrana EN 60529:	IP 54 (flange side) IP 65 (housing side)
Provozní rychlost:	≤6000 rpm (+25 °C)
Rozběhový točivý moment:	≤0.02 Nm
Materiál:	Housing: aluminium Solid shaft: stainless steel
Pracovní teplota:	-25...+100 °C (see general information)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 100 g, 11 ms
Připojení:	Connector M12, 8-pin, flexible
Přibližná hmotnost:	300 g

Foto	Produkt (11)
	Bellows coupling (D1=06 / D2=10)
	Bellows coupling (D1=10 / D2=10)
	Coupling CPS25 (L=19, D1=10 / D2=06)
	Coupling CPS25 (L=19, D1=10 / D2=10)
	Coupling CPS37 (L=24, D1=10 / D2=06)
	Coupling CPS37 (L=24, D1=10 / D2=10)
	Double loops coupling (D1=10 / D2=10)
	Mounting adaptor
	Spring encoder arm
	Spring washer coupling (D1=10 / D2=10)
	Spring washer coupling (D1=6 / D2=10)

Produkt (6) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A8-11232237 M12, female, A-coded, 8-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11233244 M12, female, A-coded, 8-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233245 M12, female, A-coded, 8-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A8-11233250 M12, female, A-coded, 8-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11233252 M12, female, A-coded, 8-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233253 M12, female, A-coded, 8-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz

Produkt (6) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A8-11233258 M12, male, A-coded, 8-poles; PUR, 200 cm, shielded; M12, female, A-coded, 8-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11233260 M12, male, A-coded, 8-poles; PUR, 500 cm, shielded; M12, female, A-coded, 8-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233261 M12, male, A-coded, 8-poles; PUR, 1000 cm, shielded; M12, female, A-coded, 8-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A8-11233266 M12, male, A-coded, 8-poles; PUR, 200 cm, shielded; M12, female, A-coded, 8-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A8-11233268 M12, male, A-coded, 8-poles; PUR, 500 cm, shielded; M12, female, A-coded, 8-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A8-11233269 M12, male, A-coded, 8-poles; PUR, 1000 cm, shielded; M12, female, A-coded, 8-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz

Foto	Produkt (9) / Popis	Skladová dostupnost
	MR241.10D Circumference 20 cm Surface profile: Smooth Surface material: Hytrel TPE-E Bore ø10 mm	na dotaz
	MR261.10A Circumference 20 cm Surface profile: Knopped rubber Surface material: Nitrile NBR Bore ø10 mm	1 ks
	MR291.10D Circumference 20 cm Surface profile: Knurled Surface material: Hytrel TPE-E Bore ø10 mm	na dotaz
	MR512.10A Circumference 50 cm Surface profile: Cross-knurled Surface material: Aluminium Bore ø10 mm	8 ks
	MR542.10D Circumference 50 cm Surface profile: Smooth Surface material: Hytrel TPE-E Bore ø10 mm	na dotaz
	MR552.10A Circumference 50 cm Surface profile: Smooth Surface material: Polyurethan Bore ø10 mm	4 ks
	MR562.10A Circumference 50 cm Surface profile: Knopped rubber Surface material: Nitrile NBR Bore ø10 mm	na dotaz
	MR592.10D Circumference 50 cm Surface profile: Knurled Surface material: Hytrel TPE-E Bore ø10 mm	na dotaz
	MR752.10A Circumference 30.48 cm Surface profile: Smooth Surface material: Polyurethan Bore ø10 mm	na dotaz
