EN580C.ML-T$12.GH2PB.21160.H/MTQ003

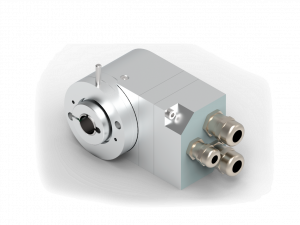

Encoder multiturn / bus cover
Optical sensing method
Resolution: singleturn 21 bit (default: 13 bit), multiturn 16 bit (default: 16 bit)
Total resolution up to 31 bit
Through hollow shaft
Interface: Profibus-DPV0
Internal continuity check with diagnostic information by bus
Maximum resistant against magnetic fields
Gear factor adjustable via numerator / denominator

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	8...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤100 mA (24 VDC)
Čas inicializace:	180 ms after power on
Rozhraní:	Profibus-DPV0
Funkce:	Multiturn
Adresa zařízení:	Rotary switches in bus cover
Kroků na otáčku:	≤2097152 / 21 bit
Počet otáček:	≤65536 / 16 bit
Absolutní přesnost:	±0.01 °
Typ snímání:	Optical
Typ kódu:	Binary
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-3
Programovatelné parametry:	Steps per revolution Number of revolutions Preset Scaling Rotating direction Gear factor
Testovací funkce:	Position or parameter error Multiturn sensing Operating hour counter
Indikátor stavu:	DUO-LED integrated in bus cover
Schválení:	UL approval / E217823

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø12 mm (through hollow shaft)
Ochrana EN 60529:	IP 54 (without shaft seal)
Provozní rychlost:	≤6000 rpm (+25 °C)
Angular acceleration:	≤2500 rad/s² (+Vs = 0 VDC) ≤500000 rad/s² (+Vs = 8...30 VDC)
Rozběhový točivý moment:	≤0.04 Nm (+25 °C, IP 54)
Tolerance hřídele motoru:	± 0.2 mm (axial offset) ≤ 0.1 mm (radial offset) ≤ 0.1 mm (concentricity)
Materiál:	Housing: aluminium Flange: aluminium Bus cover: aluminium Shaft: stainless steel
Pracovní teplota:	-25...+85 °C (see general information)
Relativní vlhkost:	95 % non-condensing
Odolnost:	EN 60068-2-6 Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz EN 60068-2-27 Shock 200 g, 3 ms
Přibližná hmotnost:	500 g
Připojení:	Cable gland
