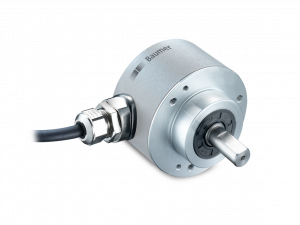

EAM580-SC0.5LC6.14180.A

Encoder multiturn / CANopen®
Precise magnetic sensing
Angular accuracy up to ±0.15°
Additional incremental signals
Protection IP 65
High resistance to shock and vibrations
Electronic gear function

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Spotřeba (typicky):	20 mA (24 VDC, w/o load)
Čas inicializace:	≤ 170 ms after power on
Rozhraní:	CANopen®
Funkce:	Multiturn
Kroků na otáčku:	16384 / 14 bit
Počet otáček:	262144 / 18 bit
Absolutní přesnost:	±0.15 ° (+20 ±15 °C) ±0.25 ° (-40...+85 °C)
Typ snímání:	Magnetic
Odolnost proti rušení dle:	EN 61000-6-2
Vyzařované rušení dle:	EN 61000-6-4
Schválení:	UL approval / E217823

Mechanické provedení

Rozměr (příruby):	ø58 mm
Typ hřídele:	ø10 x 20 mm, solid shaft with flat
Příruba:	Clamping flange
Ochrana EN 60529:	IP 65 (without shaft seal)
Provozní rychlost:	≤6000 rpm
Rozběhový točivý moment:	≤2 Ncm (+20 °C, IP 65) ≤2.5 Ncm (+20 °C, IP 67)
Moment setrvačnosti:	15.38 gcm²
Přípustné zatížení hřídele:	≤40 N axial ≤80 N radial
Materiál:	Housing: steel zinc-coated Flange: aluminium Shaft: stainless steel
Pracovní teplota:	-40...+85 °C (see general information)
Relativní vlhkost:	95 %
Odolnost:	EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 500 g, 1 ms
Přibližná hmotnost:	250 g
Připojení:	Cable 2 m

Foto	Produkt (2) / Popis	Skladová dostupnost
	Mounting adaptor Glass-fiber reinforced plastic Excellent resistance against temperature and chemicals Electrically isolated encoder mount	na dotaz
	Spring encoder arm Spring encoder arm for stable, versatile mounting options. Ideal for use of encoders with measuring wheel. Contact force max. 40 N (adjustable), the force is present in any position.	na dotaz
