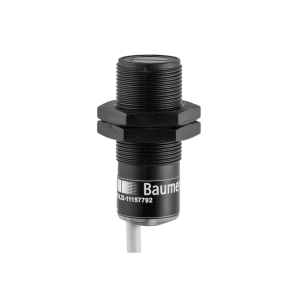

OR18.TI-ZZZZ.71OV/0010 - Through beam sensors

OR18.TI-ZZZZ.71OV/0010 - Through beam sensors
  • emitter
  • through beam sensor
  • 13 m
  • pulsed infrared diode
  • flylead connector M12 4 pin, L=100 mm
  • -25 … 55 °C
  • IP 67
Objednací číslo: 11157825
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

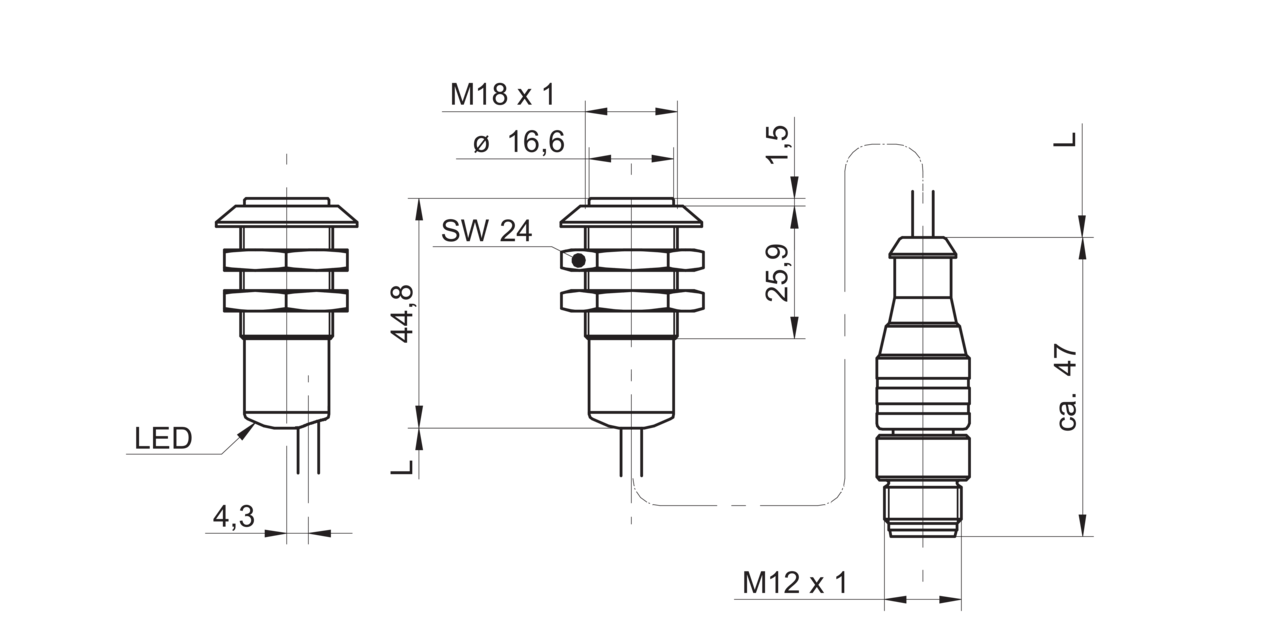

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Through beam sensor
Vysílač / přijímač: Emitter
Zdroj světla: Pulsed infrared diode
Skutečný rozsah Sb: 13 m
jmenovitý rozsah: 20 m
Indikace napájení: LED green
Nastavení množství vysílacího výkonu: No
Vlnová délka: 880 nm

Elektrické parametry

Rozsah napájecího napětí +Vs: 12 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 40 mA
Běžná spotřeba proudu: 30 mA
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 18 mm
Výška | Délka: 44.8 mm
Konstrukce: Cylindrical threaded
Materiál pouzdra: Plastic (ABS TERLURAN)
Materiál krycího skla: PMMA

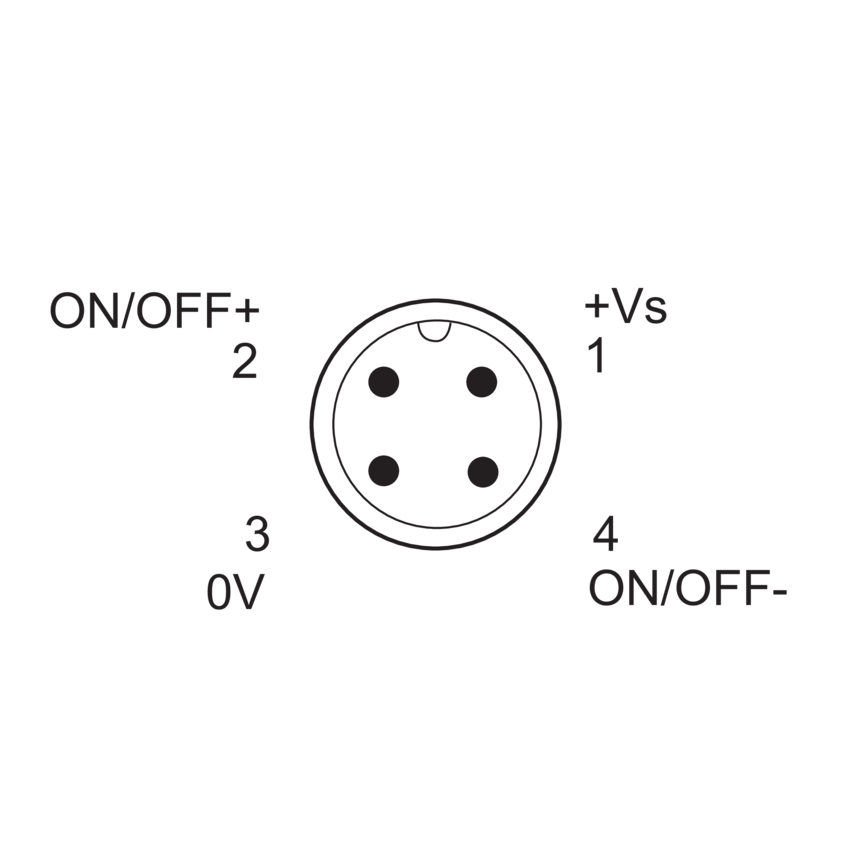

Způsoby připojení: Flylead connector M12 4 pin, L=100 mm

Okolní podmínky

Pracovní teplota: -25 - +55 °C
Třída krytí: IP 67
