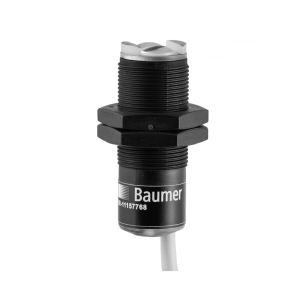

OR18.GR.F-NW1Z.71OV/0010 - Diffuse sensors with background suppression

OR18.GR.F-NW1Z.71OV/0010 - Diffuse sensors with background suppression
  • background suppression
  • 50 mm
  • pulsed red LED
  • NPN
  • no
  • flylead connector M12 4 pin, L=100 mm
  • -25 … 55 °C
  • IP 67
Objednací číslo: 11157810
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Background suppression
Verze: Fixed focus
Snímací vzdálenost: 50 mm
Snímací rozsah: 10 - 50 mm
Výstupní indikátor: LED yellow
Natavení vzdálenosti snímáni: No

Zdroj světla

Zdroj světla: Pulsed red LED
Vlnová délka: 660 nm

Elektrické parametry

Doba odezvy: < 0.5 ms
Rozsah napájecího napětí +Vs: 12 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 40 mA
Běžná spotřeba proudu: 30 mA
Pokles napětí Vd: <2 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: NPN
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 18 mm
Výška | Délka: 48.3 mm
Konstrukce: Cylindrical threaded
Materiál pouzdra: Plastic (ABS TERLURAN)
Materiál krycího skla: PMMA
Způsoby připojení: Flylead connector M12 4 pin, L=100 mm

Okolní podmínky

Třída krytí: IP 67
Pracovní teplota: -25 - +55 °C
