O500.RP-PV1T.72O - Retro-reflective sensors - for longer ranges

O500.RP-PV1T.72O - Retro-reflective sensors - for longer ranges
  • retro-reflective sensor
  • 7,5 m
  • pulsed PinPoint LED
  • PNP complementary
  • qTeach
  • connector M12 4 pin
  • -25 … 60 °C
  • IP 67
Objednací číslo: 11096094
Výrobce: Baumer Electric AG
Dostupnost: 11 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Typ: Retro-reflective sensor
Zdroj světla: Pulsed PinPoint LED
Skutečný rozsah Sb: 7.5 m
jmenovitý rozsah: 8 m
Polarizační filtr: Yes
Světelný indikátor: LED yellow
Indikace napájení: LED green
Nastavení citlivosti: qTeach
Vlnová délka: 630 nm
Potlačení vzájemného ovlivňování: Yes
Odklon od osy: < 1°

Elektrické parametry

Doba odezvy: < 0.49 ms
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 40 mA
Běžná spotřeba proudu: 30 mA
Pokles napětí Vd: <3 VDC
Výstupní funkce: Light / dark operate
Výstupní obvod: PNP complementary
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Šířka | průměr: 18 mm
Výška | Délka: 45 mm
Hloubka: 32 mm
Konstrukce: Rectangular
Materiál pouzdra: Plastic (ASA, PMMA)
Materiál krycího skla: PMMA

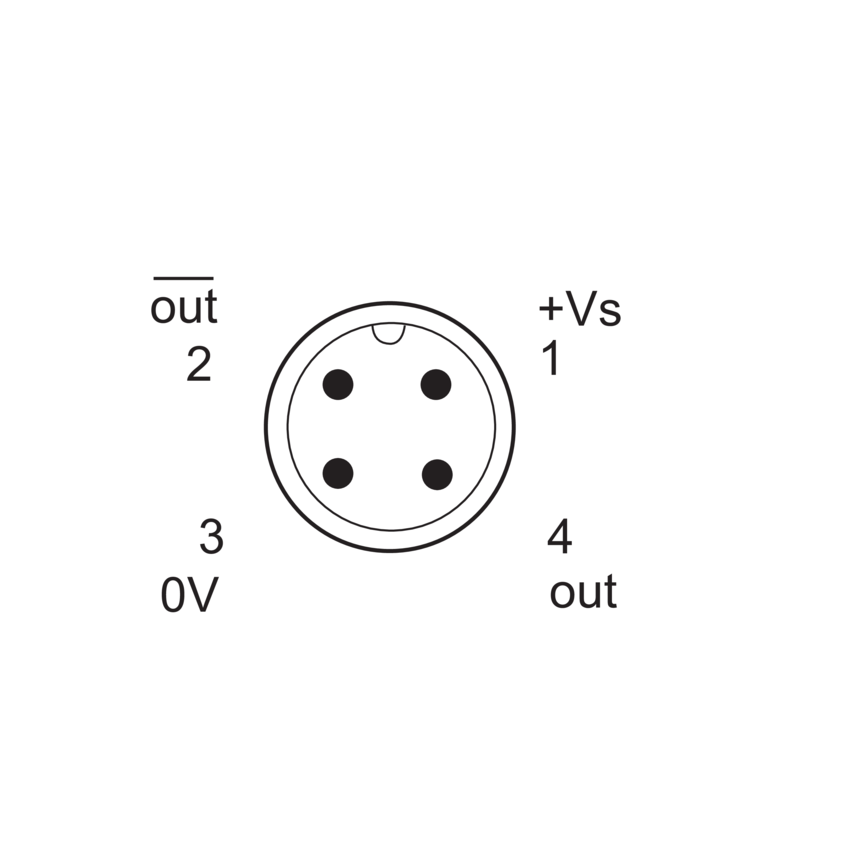

Způsoby připojení: Connector M12 4 pin

Okolní podmínky

Pracovní teplota: -25 - +60 °C
Třída krytí: IP 67
