IR30.P24S.2-N60.PV1Z.7BO - Inductive proximity sensor Baumer

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Cylindrical standard housing for versatile use
Extended sensing distance for maximum reliability
Lowest serial dispersion due to end-of-line calibration
Robust even in demanding environments
Temperature and long-term stable switching behavior

Objednací číslo: 11725189
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

Mám dotaz

Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Non-flush
Nominální snímací vzdálenost Sn:	24 mm
Zajištěná snímací vzdálenost Sa:	≤ 81 % of Sn
Reálná snímací vzdálenost Sr:	± 10 % von Sn
Teplotní drift:	± 10 % of Sr
Hystereze:	3 - 20 % of Sr
Výstupní indikátor:	LED red
Korekční faktor:	Mild steel 100 %, stainless steel 95 %, aluminum 60 %, copper 55 %
Referenční objekt:	Fe360 72 x 72 x 1 mm

Elektrické parametry

Spínací frekvence:	500 Hz
Rozsah napájecího napětí +Vs:	6 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní obvod:	PNP complementary
Pokles napětí Vd:	<2 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	30 mm
Délka pouzdra:	60 mm
Způsoby připojení:	Connector M12 5 pin
utahovací moment max.:	140 Nm
Hmotnost:	158 g

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Skladovací teplota:	-40 - +75 °C
Třída krytí:	IP 67
Odolnost vibracím:	IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
Odolnost vůči zkratu:	IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction

Bezpečnost

MTTF:	979 years
Diagnostikované krytí (DC):	0 %

Nákresy

Výkresy

IR_MZ_IR30.P24S.2-N60.XXXZ.7BO_91.png | stáhnout (png, 2025-07-12 08:10:16)

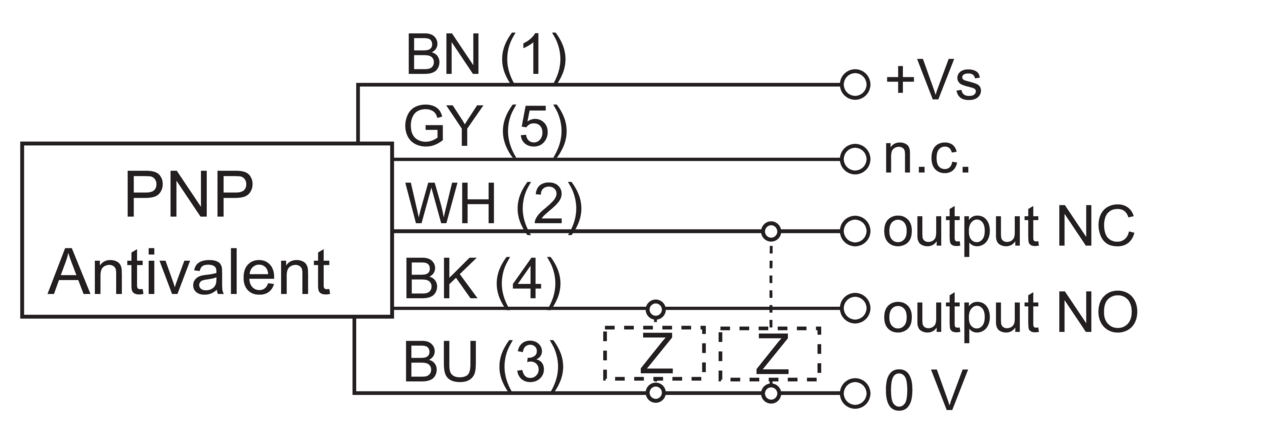

Diagram připojení

Zchn-6100-DPV.png | stáhnout (png, 2025-07-11 17:44:45)

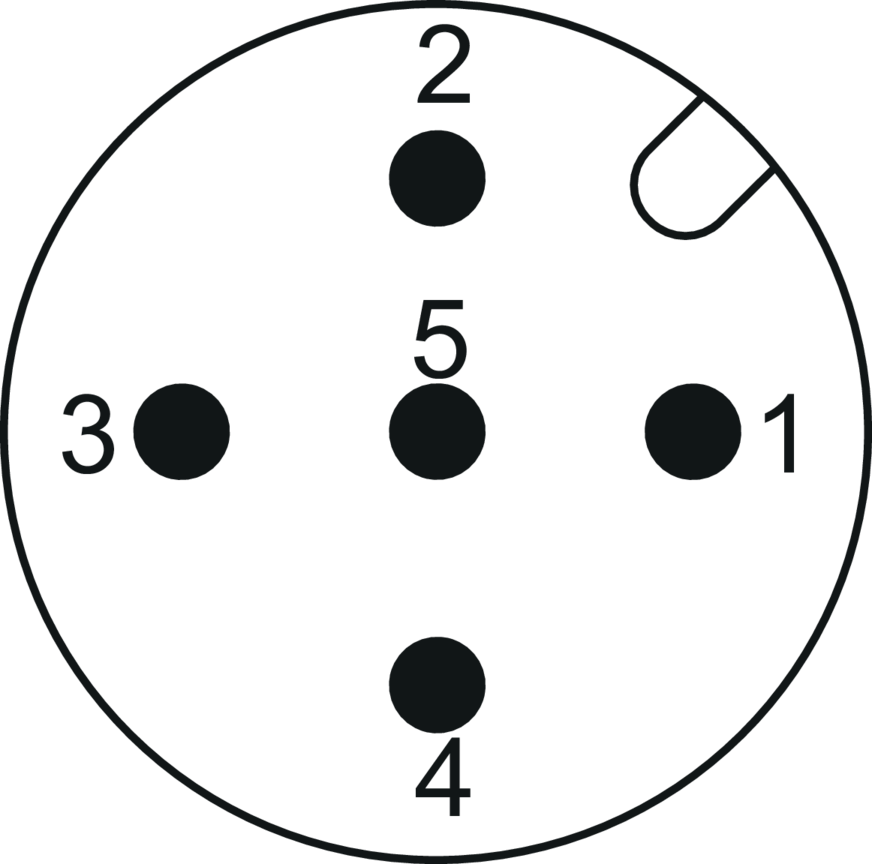

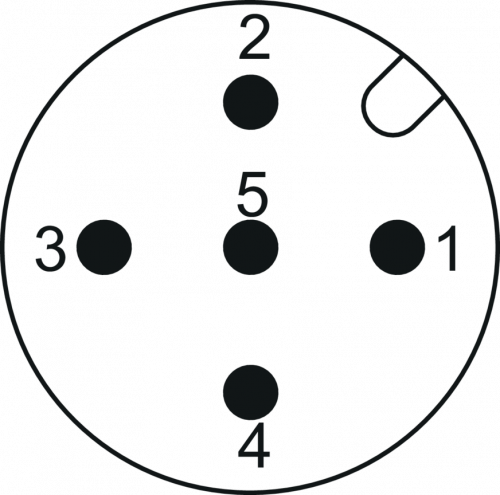

Přiřazení pinů

M12-5Pol-männlich-A.png | stáhnout (png, 2025-07-12 05:55:29)

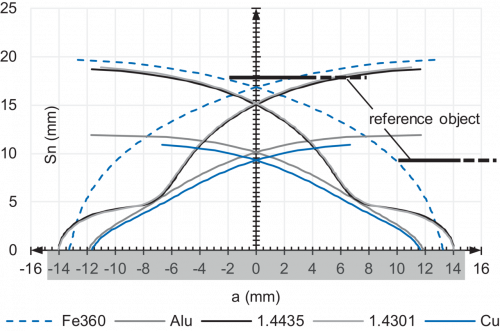

Diagram odezvy

IR30_P24S_2-N_FD_Schaltkeule_91_EN.png | stáhnout (png, 2025-07-12 08:00:22)

Ke stažení

Datový list

Data sheet – IR30.P24S.2-N60.PV1Z.7BO | stáhnout | zobrazit (ZH, pdf, 2025-04-11 11:06:03)
Data sheet – IR30.P24S.2-N60.PV1Z.7BO | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:31:41)
Data sheet – IR30.P24S.2-N60.PV1Z.7BO | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:31:41)

Certifikáty/ osvědčení

MTTF_11725189 | stáhnout | zobrazit (DE/EN/FR, pdf, 2025-04-11 12:10:28)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)
