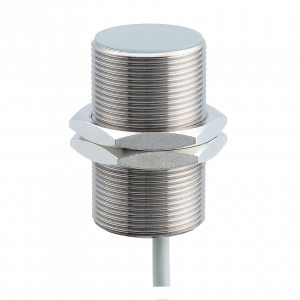

IR30.P18S-F50.NV1Z.7BCV - Inductive proximity switch - large sensing distance

18 mm
NPN complementary (NO / NC)
cable, 2 m
-25 … 75 °C
IP 67

Objednací číslo: 11174003
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

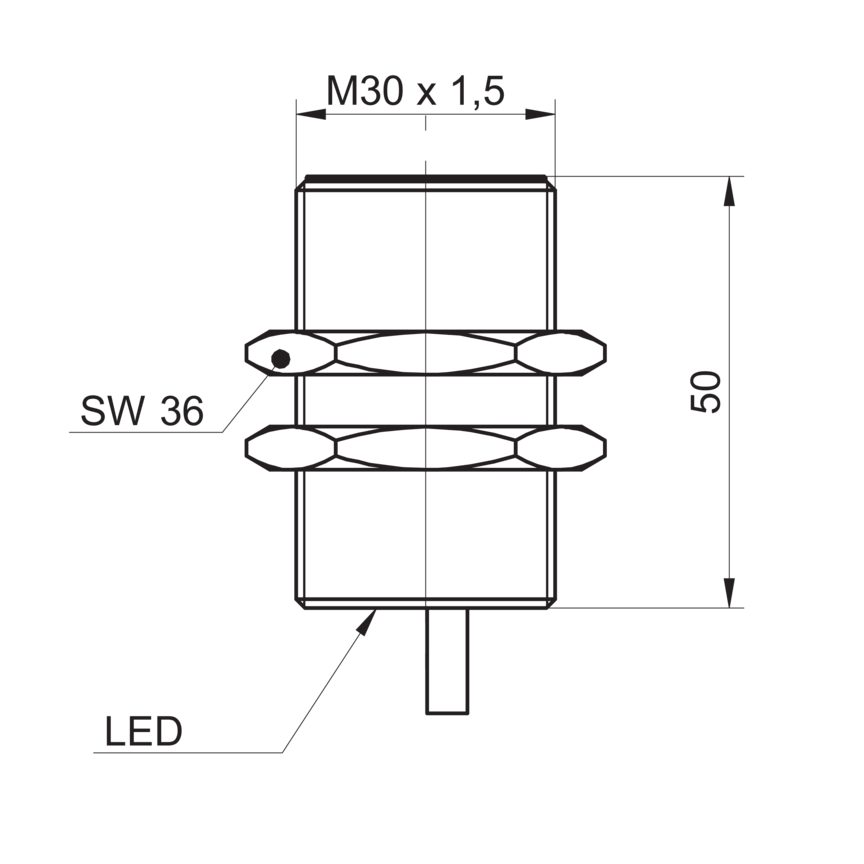

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Speciální typ:	Enhanced distance (GammaProx)
Nominální snímací vzdálenost Sn:	18 mm
Teplotní drift:	± 10 %
Hystereze:	3 - 20 % of Sr
Výstupní indikátor:	LED red
Korekční faktor:	Mild steel 100 %, stainless steel 70 %, aluminum 40 %

Elektrické parametry

Spínací frekvence:	500 Hz
Rozsah napájecího napětí +Vs:	6 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní obvod:	NPN complementary (NO / NC)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	30 mm
Délka pouzdra:	50 mm
Způsoby připojení:	Cable, L=2 m
utahovací moment max.:	140 Nm

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67
