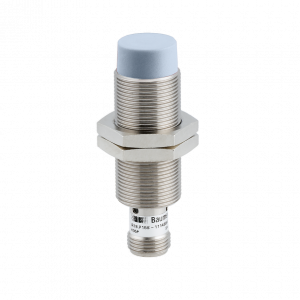

IR18.P15S-N60.PO1Z.7BO - Inductive proximity switch - large sensing distance

IR18.P15S-N60.PO1Z.7BO - Inductive proximity switch - large sensing distance
  • 15 mm
  • PNP make function (NO)
  • connector M12
  • 65 °C
  • IP 67
Objednací číslo: 11149133
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Non-flush
Speciální typ: Enhanced distance (GammaProx)
Nominální snímací vzdálenost Sn: 15 mm
Teplotní drift:
  • - 5 % / + 10 % (+10 ... +60 °C)
  • - 5 % / + 15 % (0 ... +65 °C)
Hystereze: 3 - 20 % of Sr
Výstupní indikátor: 3 port LED red
Korekční faktor: Mild steel 100 %, stainless steel 85 %, aluminum 55 %

Elektrické parametry

Spínací frekvence: 400 Hz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: PNP make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 18 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12
utahovací moment max.: 40 Nm

Okolní podmínky

Pracovní teplota: 0 - +65 °C
Třída krytí: IP 67
