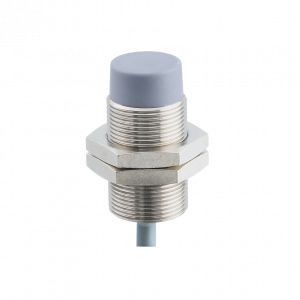

IR18.P15S-N35.NC1Z.7BCV - Inductive proximity switch - large sensing distance

15 mm
NPN break function (NC)
cable, 2 m
65 °C
IP 67

Objednací číslo: 11148900
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Non-flush
Speciální typ:	Enhanced distance (GammaProx)
Nominální snímací vzdálenost Sn:	15 mm
Teplotní drift:	- 5 % / + 10 % (+10 ... +60 °C) - 5 % / + 15 % (0 ... +65 °C)
Hystereze:	3 - 20 % of Sr
Výstupní indikátor:	LED red
Korekční faktor:	Mild steel 100 %, stainless steel 85 %, aluminum 55 %

Elektrické parametry

Spínací frekvence:	400 Hz
Rozsah napájecího napětí +Vs:	6 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní obvod:	NPN break function (NC)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical threaded
Materiál aktivní části:	PBT
Materiál pouzdra:	Brass nickel plated
Rozměry:	18 mm
Délka pouzdra:	35 mm
Způsoby připojení:	Cable, L=2 m
utahovací moment max.:	40 Nm

Okolní podmínky

Pracovní teplota:	0 - +65 °C
Třída krytí:	IP 67
