IR06.P03S-F46.NO1Z.7SL - Inductive proximity switch - miniature

3 mm
NPN make function (NO)
connector M8
-25 … 75 °C
IP 67

Objednací číslo: 11148689
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Speciální typ:	Enhanced distance (GammaProx)
Nominální snímací vzdálenost Sn:	3 mm
Teplotní drift:	± 10 %
Hystereze:	3 - 20 % of Sr
Výstupní indikátor:	3 port LED red

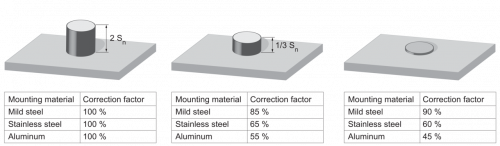

Korekční faktor:	Mild steel 100 %, stainless steel 65 %, aluminum 30 %

Elektrické parametry

Spínací frekvence:	2 kHz
Rozsah napájecího napětí +Vs:	6 - 36 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní obvod:	NPN make function (NO)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical smooth
Materiál aktivní části:	PBT
Materiál pouzdra:	Stainless steel
Rozměry:	6.5 mm
Délka pouzdra:	46 mm
Způsoby připojení:	Connector M8

Okolní podmínky

Pracovní teplota:	-25 - +75 °C
Třída krytí:	IP 67

Foto	Produkt (1)	Produktová skupina	Skladová dostupnost
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz

Foto	Produkt (2) / Popis	Produktová skupina	Skladová dostupnost
	10109474 - Mounting bracket for sensors Ø 6,5 mm Materiál: Plast (PA6)	Montážní příslušenství	1 ks
	10117742 - Clamping nut for sensors Ø 6,5 mm Utahovací moment max. 0,8 Nm	Montážní příslušenství	11 ks
