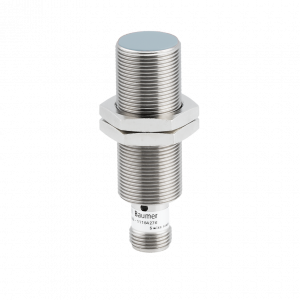

IFRM 18P17M1/S14L - Inductive proximity switch - outdoor

IFRM 18P17M1/S14L - Inductive proximity switch - outdoor
  • 10mm for flush mount in St37
  • PNP make function (NO)
  • connector M12
  • -40 … 80 °C
  • IP 67
Objednací číslo: 11013673
Výrobce: Baumer Electric AG
Dostupnost: 5 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Skladová dostupnost
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Speciální typ: Outdoor design
Nominální snímací vzdálenost Sn: 10 mm
Hystereze: 2 - 15 % of Sr
Výstupní indikátor: LED red

Elektrické parametry

Spínací frekvence: 400 Hz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 24 mA
Výstupní obvod: PNP make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 18 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12
utahovací moment max.: 40 Nm (Front: 28 Nm)

Okolní podmínky

Pracovní teplota: -40 - +80 °C
Třída krytí: IP 67
