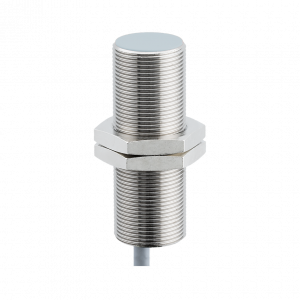

IFRM 18N37M1/PL - Inductive proximity switch - outdoor

IFRM 18N37M1/PL - Inductive proximity switch - outdoor
  • 10mm for flush mount in St37
  • NPN break function (NC)
  • cable PUR 3 x 0,25, 2 m
  • -40 … 80 °C
  • IP 67
Objednací číslo: 11013680
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry

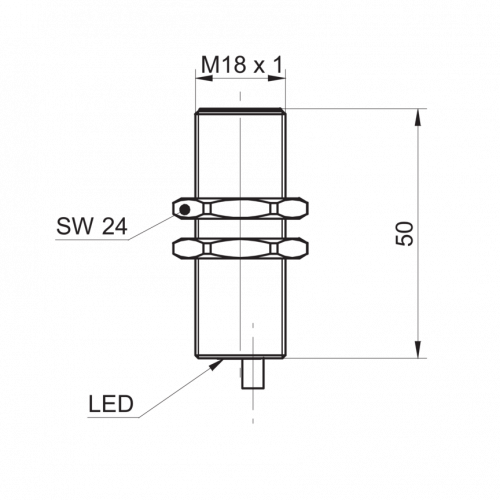

Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Speciální typ: Outdoor design
Nominální snímací vzdálenost Sn: 10 mm
Hystereze: 2 - 15 % of Sr
Výstupní indikátor: LED red

Elektrické parametry

Spínací frekvence: 400 Hz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 24 mA
Výstupní obvod: NPN break function (NC)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 18 mm
Délka pouzdra: 50 mm
Způsoby připojení: Cable PUR 3 x 0,25, 2 m
utahovací moment max.: 40 Nm (Front: 28 Nm)

Okolní podmínky

Pracovní teplota: -40 - +80 °C
Třída krytí: IP 67
