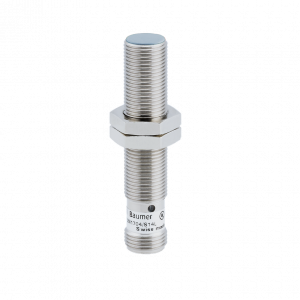

IFRM 12P1704/S14L - Inductive proximity switch - standard

IFRM 12P1704/S14L - Inductive proximity switch - standard
  • 4 mm
  • PNP make function (NO)
  • connector M12
  • -25 … 75 °C
  • IP 67
Objednací číslo: 10155366
Výrobce: Baumer Electric AG
Dostupnost: 6 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.
Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.
+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Nominální snímací vzdálenost Sn: 4 mm
Hystereze: 3 - 20 % of Sr
Výstupní indikátor: 3 port LED red

Elektrické parametry

Spínací frekvence: 2 kHz
Rozsah napájecího napětí +Vs: 6 - 36 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: PNP make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 12 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12
utahovací moment max.: 15 Nm (Front: 10 Nm)

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Třída krytí: IP 67
