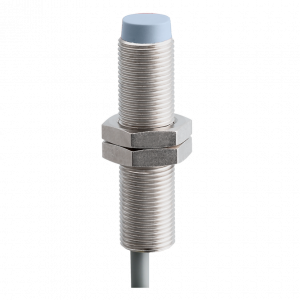

IFRM 12P13T1/PL - Inductive proximity switch - outdoor and washdown

IFRM 12P13T1/PL - Inductive proximity switch - outdoor and washdown
  • 6 mm
  • PNP make function (NO)
  • cable PUR 3 x 0,25, 2 m
  • -40 … 80 °C
  • IP 67
Objednací číslo: 11016679
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Non-flush
Speciální typ: Outdoor design
Nominální snímací vzdálenost Sn: 6 mm
Hystereze: 2 - 15 % of Sr
Výstupní indikátor: LED red

Elektrické parametry

Spínací frekvence: 2 kHz
Rozsah napájecího napětí +Vs: 6 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: PNP make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: PBT
Materiál pouzdra: Brass nickel plated
Rozměry: 12 mm
Délka pouzdra: 50 mm
Způsoby připojení: Cable PUR 3 x 0,25, 2 m
utahovací moment max.: 15 Nm (Front: 10 Nm)

Okolní podmínky

Pracovní teplota: -40 - +80 °C
Třída krytí: IP 67
