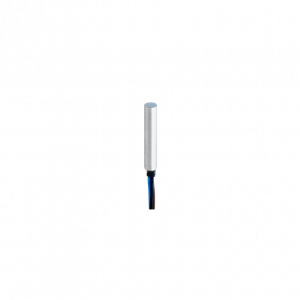

IFRM 03P1503/Q - Inductive proximity switch - subminiature

IFRM 03P1503/Q - Inductive proximity switch - subminiature
  • 0,8 mm
  • PNP make function (NO)
  • wires, 0,5 m
  • -25 … 75 °C
  • IP 67
Objednací číslo: 10137011
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Flush
Nominální snímací vzdálenost Sn: 0.8 mm
Hystereze: 2 - 20 % of Sr

Elektrické parametry

Spínací frekvence: 3 kHz
Rozsah napájecího napětí +Vs: 6 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 12 mA
Výstupní obvod: PNP make function (NO)
Pokles napětí Vd: <2 VDC
Výstupní proud: 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical smooth
Materiál aktivní části: POM
Materiál pouzdra: Stainless steel
Rozměry: 3 mm
Délka pouzdra: 16 mm
Způsoby připojení: Wires, 0,5 m

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Třída krytí: IP 67
