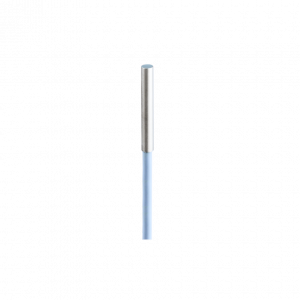

IFRM 03N3713/L - Inductive proximity switch - subminiature extreme

1 mm
NPN break function (NC)
cable, 2 m
-10 … 70 °C
IP 67

Objednací číslo: 11166560
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Montážní typ:	Flush
Nominální snímací vzdálenost Sn:	1 mm
Teplotní drift:	- 5 % / + 10 % (+10 ... +60 °C) - 5 % / + 15 % (-10 ... +70 °C)
Hystereze:	2 - 20 % of Sr
Výstupní indikátor:	LED red

Elektrické parametry

Spínací frekvence:	4 kHz
Rozsah napájecího napětí +Vs:	6 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	10 mA
Výstupní obvod:	NPN break function (NC)
Pokles napětí Vd:	<2 VDC
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Konstrukce:	Cylindrical smooth
Materiál aktivní části:	POM
Materiál pouzdra:	Stainless steel
Rozměry:	3 mm
Délka pouzdra:	16 mm
Způsoby připojení:	Cable, L=2 m

Okolní podmínky

Pracovní teplota:	-10 - +70 °C
Třída krytí:	IP 67

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	ZTEST-ALL.ANALOG - Test unit for sensors analog & digital	Periferie	na dotaz
	ZTEST-ALL.DIGITAL - Test unit for sensors digital	Periferie	na dotaz

Foto	Produkt (1) / Popis	Produktová skupina	Skladová dostupnost
	10137021 - Clamping nut for sensors Ø 3 mm Utahovací moment max. 0,5 Nm	Montážní příslušenství	10 ks
