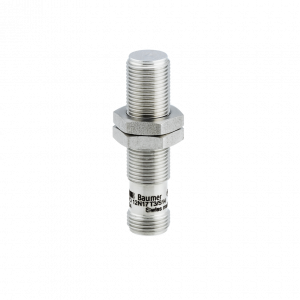

IFRD 12P37A3/S14L - Inductive sensors special versions

IFRD 12P37A3/S14L - Inductive sensors special versions
  • 4 mm
  • PNP break function (NC)
  • connector M12
  • -25 … 75 °C
  • IP 68/67 (sensing face/sensor)
Objednací číslo: 10149569
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Quasi-flush
Speciální typ: Full metal housing (DuroProx)
Nominální snímací vzdálenost Sn: 4 mm
Hystereze: 2 - 20 % of Sr
Výstupní indikátor: 3 port LED red

Elektrické parametry

Spínací frekvence: 100 Hz
Rozsah napájecího napětí +Vs: 10 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 14 mA
Výstupní obvod: PNP break function (NC)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical threaded
Materiál aktivní části: Stainless steel 1.4404 (V4A)
Materiál pouzdra: Stainless steel 1.4404 (V4A)
Statický tlak: < 20 bar
Rozměry: 12 mm
Délka pouzdra: 50 mm
Způsoby připojení: Connector M12

Okolní podmínky

Pracovní teplota: -25 - +75 °C
Třída krytí: IP 68/67 (sensing face/sensor)
