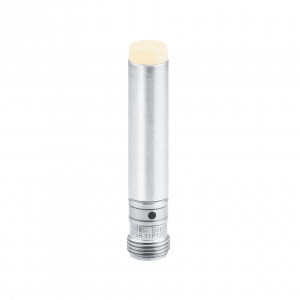

IFBR 11N33T1/S14L-9 - Inductive proximity switch - hygiene

IFBR 11N33T1/S14L-9 - Inductive proximity switch - hygiene
  • 6 mm
  • NPN break function (NC)
  • connector M12
  • -40 … 80 °C
  • IP 68/69K & proTect+
Objednací číslo: 11014599
Výrobce: Baumer Electric AG
Dostupnost: na dotaz



Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák
Ing. Jaroslav Dančák
Technik specialista pro průmyslové snímače
BAUMER
Ing. Jaroslav Dančák - QR Kontakt
+420 733 533 400
jaroslav.dancak@ajptech.cz
Parametry
Nákresy
Ke stažení
Příslušenství
Podpora
Podobné produkty

Parametry

Základní parametry

Montážní typ: Non-flush
Speciální typ: Hygienic design
Nominální snímací vzdálenost Sn: 6 mm
Hystereze: 2 - 15 % of Sr
Výstupní indikátor: LED red
Schválení | Osvědčení:
  • Ecolab
  • Adapted from EHEDG
  • REGULATION (EC) 1935/2004
  • REGULATION (EC) 2023/2006
  • REGULATION (EU) 1282/2011
  • FDA 21 CFR § 175.300
  • FDA 21 CFR § 177.2600
  • FCN 742

Elektrické parametry

Spínací frekvence: 1 kHz
Rozsah napájecího napětí +Vs: 6 - 30 VDC
Maximální spotřeba proudu (bez zátěže): 10 mA
Výstupní obvod: NPN break function (NC)
Pokles napětí Vd: <2 VDC
Výstupní proud: 200 mA
Výstupní proud (při čistící teplotě): < 100 mA
Ochrana proti zkratu: Yes
Ochrana proti přepólování: Yes

Mechanické parametry

Konstrukce: Cylindrical smooth
Materiál aktivní části: LCP
Materiál pouzdra: Stainless steel 1.4404 (V4A); LSR
Rozměry: 11 mm
Délka pouzdra: 60 mm
Způsoby připojení: Connector M12

Okolní podmínky

Pracovní teplota: -40 - +80 °C
Čistící teplota: 80 - +100 °C (30 min/day)
Třída krytí: IP 68/69K & proTect+
