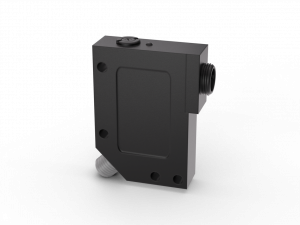

FVDM 15P5103/S14 - Fiber optic sensors

Objednací číslo: 10239451, Výrobce: Baumer Electric AG

240 mm
1200 mm
pulsed infrared diode
PNP
potentiometer, 20 turn
connector M12 4 pin
-25 … 65 °C
IP 65

Dostupnost: 6 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Základní parametry

Skutečný rozsah Sb:	1200 mm
Snímací vzdálenost:	240 mm
Zdroj světla:	Pulsed infrared diode
Světelný indikátor:	LED yellow
Indikace znečištění:	LED, flashing
Nastavení:	Potentiometer, 20 turn
Vlnová délka:	880 nm
Potlačení vzájemného ovlivňování:	Yes

Elektrické parametry

Doba odezvy:	< 1 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	46 mA
Běžná spotřeba proudu:	30 mA
Pokles napětí Vd:	<1.8 VDC
Výstupní funkce:	Light / dark operate
Výstupní obvod:	PNP
Výstupní proud:	200 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	15 mm
Výška \| Délka:	60 mm
Hloubka:	45 mm
Design:	Rectangular
Materiál pouzdra:	Die-cast aluminum
Způsoby připojení:	Connector M12 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +65 °C
Třída krytí:	IP 65

Příslušenství

Obsahuje:Montážní příslušenství Čočky a komponenty Kabely s volným koncem LED-Kabely s volným koncem Kabely

Montážní příslušenství

Další podobné produkty naleznete v kategorii: Držáky | Chladiče

Foto	Produkt (1)	Popis	Skladová dostupnost
	10103415 - Mounting bracket series 15 (L design)	Material: Steel	na dotaz

Čočky a komponenty

Další podobné produkty naleznete v kategorii: Objektivy | Příslušenství k objektivům

Foto	Produkt (1)	Popis	Skladová dostupnost
	10103230 - Cap nut (replace) for fiber optics series 15	Material: Nickel-plated brass For re-orders when lost Enclosed with every glass fiber optic of type B	na dotaz

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (62)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230334	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230335	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230336	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230342	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230343	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230344	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230347	M12, female, A-coded, 4-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230349	M12, female, A-coded, 4-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230350	M12, female, A-coded, 4-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230354	M12, female, A-coded, 4-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230355	M12, female, A-coded, 4-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230356	M12, samice, A-kódování, 4-póly; PUR, 1000 cm, stíněný, volný konec Vhodný pro dragchain Hlava A: IP65, IP66K, IP67 Kabel: odolný vůči chemikáliím, plamenům, olejům Bez halogenů	10 m	na dotaz
CAM12.A4-11230379	M12, female, A-coded; 4-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230380	M12, female, A-coded; 4-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230381	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11230382	M12, female, A-coded; 4-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230383	M12, female, A-coded; 4-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230384	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11230400	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230403	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	4 ks
CAM12.A4-11230409	M12, female, A-coded, 4-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230463	M12, female, A-coded; 4-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230464	M12, female, A-coded; 4-poles; TPE-S, 500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230929	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230930	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11230931	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11230934	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230935	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11230936	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11230939	M12, female, A-coded, 4-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11230940	M12, female, A-coded, 4-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11230968	M12, female, A-coded; 4-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230969	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11230970	M12, female, A-coded; 4-poles; TPE-S, 200 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230971	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11232793	M12, female, A-coded; 4-poles; PVC, 200 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	2 m	na dotaz
CAM12.A4-11232794	M12, female, A-coded; 4-poles; PVC, 500 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	5 m	na dotaz
CAM12.A4-11232795	M12, female, A-coded; 4-poles; PVC, 1000 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	10 m	na dotaz
CAM12.A4-11232797	M12, female, A-coded; 4-poles; PVC, 200 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	2 m	na dotaz
CAM12.A4-11232798	M12, female, A-coded; 4-poles; PVC, 500 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	5 m	na dotaz
CAM12.A4-11232799	M12, female, A-coded; 4-poles; PVC, 1000 cm, free cable end Suitable for food & beverage Head A: IP65, IP68 Cable: good resistance against chemicals, flames	10 m	na dotaz
CAM12.A4-11232883	M12, female, A-coded, 4-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232884	M12, female, A-coded, 4-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232885	M12, female, A-coded, 4-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232886	M12, female, A-coded, 4-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232888	M12, female, A-coded, 4-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232900	M12, female, A-coded; 4-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232901	M12, female, A-coded; 4-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232902	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232903	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A4-11232904	M12, female, A-coded; 4-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232905	M12, female, A-coded; 4-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232906	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232907	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A4-11232923	M12, female, A-coded; 4-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232924	M12, female, A-coded; 4-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232925	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232926	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz
CAM12.A4-11232928	M12, female, A-coded; 4-poles; TPE-S, 100 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232929	M12, female, A-coded; 4-poles; TPE-S, 300 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232930	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232931	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, shielded, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

LED-Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (21)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230401	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A4-11230405	M12, female, A-coded, 4-poles; PUR, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	5 m	na dotaz
CAM12.A4-11230460	M12, female, A-coded; 4-poles; TPE-S, 500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	5 m	na dotaz
CAM12.A4-11230932	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11230933	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A4-11230937	M12, female, A-coded, 4-poles; PUR, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	2 m	na dotaz
CAM12.A4-11230938	M12, female, A-coded, 4-poles; PUR, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	10 m	na dotaz
CAM12.A4-11230960	M12, female, A-coded; 4-poles; TPE-S, 200 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	2 m	na dotaz
CAM12.A4-11230961	M12, female, A-coded; 4-poles; TPE-S, 1000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	10 m	na dotaz
CAM12.A4-11232872	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11232873	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A4-11232874	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A4-11232875	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A4-11232878	M12, female, A-coded, 4-poles; PUR, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	1 m	na dotaz
CAM12.A4-11232879	M12, female, A-coded, 4-poles; PUR, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	3 m	na dotaz
CAM12.A4-11232880	M12, female, A-coded, 4-poles; PUR, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	15 m	na dotaz
CAM12.A4-11232881	M12, female, A-coded, 4-poles; PUR, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils	20 m	na dotaz
CAM12.A4-11232908	M12, female, A-coded; 4-poles; TPE-S, 100 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	1 m	na dotaz
CAM12.A4-11232909	M12, female, A-coded; 4-poles; TPE-S, 300 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	3 m	na dotaz
CAM12.A4-11232910	M12, female, A-coded; 4-poles; TPE-S, 1500 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	15 m	na dotaz
CAM12.A4-11232911	M12, female, A-coded; 4-poles; TPE-S, 2000 cm, free cable end Dragchain capable; suitable for robotics ± 180 °/m; suitable for food & beverage Head A: IP65, IP68, IP69K ECOLAB tested Halogen free	20 m	na dotaz

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (35)	Popis	Délka kabelu	Skladová dostupnost
CAM12.A4-11230419	M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230420	M12, male, A-coded, 4-poles; PUR, 500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230421	M12, male, A-coded, 4-poles; PUR, 500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230422	M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11230423	M12, male, A-coded, 4-poles; PUR, 500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11230941	M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230942	M12, male, A-coded, 4-poles; PUR, 1000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230943	M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230944	M12, male, A-coded, 4-poles; PUR, 1000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11230945	M12, male, A-coded, 4-poles; PUR, 200 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11230946	M12, male, A-coded, 4-poles; PUR, 1000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232676	M12, male, A-coded, 4-poles; PUR, 100 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232678	M12, male, A-coded, 4-poles; PUR, 200 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11232679	M12, male, A-coded, shielded, 4-poles; PUR, 300 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232681	M12, male, A-coded, 4-poles; PUR, 500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11232682	M12, male, A-coded, 4-poles; PUR, 1000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232683	M12, male, A-coded, 4-poles; PUR, 1500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232684	M12, male, A-coded, 4-poles; PUR, 2000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232686	M12, male, A-coded, 4-poles; PUR, 100 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232688	M12, male, A-coded, 4-poles; PUR, 200 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A4-11232689	M12, male, A-coded, 4-poles; PUR, 300 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232691	M12, male, A-coded, 4-poles; PUR, 500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A4-11232692	M12, male, A-coded, 4-poles; PUR, 1000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A4-11232693	M12, male, A-coded, 4-poles; PUR, 1500 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232694	M12, male, A-coded, 4-poles; PUR, 2000 cm, shielded; M12, female, A-coded, 4-poles Dragchain capable Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232933	M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232934	M12, male, A-coded, 4-poles; PUR, 1500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232935	M12, male, A-coded, 4-poles; PUR, 2000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232937	M12, male, A-coded, 4-poles; PUR, 100 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A4-11232938	M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232939	M12, male, A-coded, 4-poles; PUR, 1500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232940	M12, male, A-coded, 4-poles; PUR, 2000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A4-11232942	M12, male, A-coded, 4-poles; PUR, 300 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A4-11232943	M12, male, A-coded, 4-poles; PUR, 1500 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A4-11232944	M12, male, A-coded, 4-poles; PUR, 2000 cm; M12, female, A-coded, 4-poles Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67; Head B: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz

Název produktu	Počet na skladě
FVDM 15P5103/S14	6 ks

Produkt (50)	Produktová skupina	Skladová dostupnost
FCE 050C1Y10 - Fiber optic cables	Fiber optic cables	na dotaz
FCE 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FCE 200C1Y01 - Fiber optic cables	Fiber optic cables	na dotaz
FCE 200D1Y00 - Fiber optic cables	Fiber optic cables	1 ks
FCE 200D1Y01 - Fiber optic cables	Fiber optic cables	na dotaz
FCE 200E1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FKE 200D1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FLC 200D2Y00 - Fiber optics	Optická vlákna	na dotaz
FLE 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FLE 200D1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FOC 500C6Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FPE 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FPE 200C4Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FPE 200D1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSA 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSB 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 025B1001 - Fiber optic cables	Fiber optic cables Through beam sensor	na dotaz
FSE 025B1003 - Fiber optic cables	Fiber optic cables Through beam sensor	na dotaz
FSE 025B1007 - Fiber optic cables	Fiber optic cables Through beam sensor	na dotaz
FSE 025B2001 - Fiber optic cables - subminiature	Fiber optic cables subminiature Through beam sensor	na dotaz
FSE 025B2002 - Fiber optic cables - subminiature	Fiber optic cables subminiature Through beam sensor	na dotaz
FSE 025B2003 - Fiber optic cables - subminiature	Fiber optic cables subminiature Through beam sensor	na dotaz
FSE 025B2006 - Fiber optic cables - subminiature	Fiber optic cables subminiature Through beam sensor	na dotaz
FSE 050A1001 - Fiber optic cables	Fiber optic cables Through beam sensor	na dotaz
FSE 050A1003 - Fiber optic cables	Fiber optic cables Through beam sensor	na dotaz
FSE 050A1006 - Fiber optic cables	Fiber optic cables Through beam sensor	na dotaz
FSE 100A1003	Optická vlákna	na dotaz
FSE 100F6Y01 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C1002 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C1004 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C1013 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C2002 - Fiber optic cables - subminiature	Fiber optic cables	na dotaz
FSE 200C2004 - Fiber optic cables - subminiature	Fiber optic cables	na dotaz
FSE 200C2Y00 - Fiber optic cables	Fiber optic cables	1 ks
FSE 200C4001 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C4002 - Fiber optic cables	Fiber optic cables	3 ks
FSE 200C6Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C6Y02 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200C6Y15 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200D1Y50 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200D2Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200D2Y50 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200D4Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200E1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200F1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200F4Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSE 200F6Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FSL 500C6Y00 - Fiber optic cables	Fiber optic cables	na dotaz
FUA 200C1Y00 - Fiber optic cables	Fiber optic cables	na dotaz
