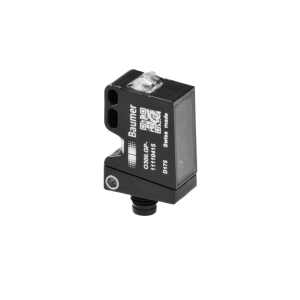

O300.RP-NW2T.72N - Retro-reflective sensors - miniature

Objednací číslo: 11110448, Výrobce: Baumer Electric AG

retro-reflective sensor
5 m
pulsed PinPoint LED
NPN
qTeach
connector M8 4 pin
-25 … 60 °C
IP 67

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do poptávky

Poradím vám

Ing. Martin Bulenínec

Produktový specialista
Průmyslové snímače Baumer

+420 734 153 954

martin.buleninec@ajptech.cz

Parametry

Nákresy

Diagramy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Typ:	Retro-reflective sensor
Zdroj světla:	Pulsed PinPoint LED
Skutečný rozsah Sb:	5 m
jmenovitý rozsah:	6 m
Polarizační filtr:	Yes
Světelný indikátor:	LED yellow
Indikace napájení:	LED green
Nastavení citlivosti:	qTeach
Vlnová délka:	630 nm
Potlačení vzájemného ovlivňování:	Yes
Odklon od osy:	< 2°

Elektrické parametry

Doba odezvy:	< 0.49 ms
Rozsah napájecího napětí +Vs:	10 - 30 VDC
Maximální spotřeba proudu (bez zátěže):	35 mA
Běžná spotřeba proudu:	25 mA
Pokles napětí Vd:	<3 VDC
Výstupní funkce:	Light / dark operate, alarm
Výstupní obvod:	NPN
Výstupní proud:	100 mA
Ochrana proti zkratu:	Yes
Ochrana proti přepólování:	Yes

Mechanické parametry

Šířka \| průměr:	12.9 mm
Výška \| Délka:	32.3 mm
Hloubka:	23 mm
Design:	Rectangular
Materiál pouzdra:	Plastic (ASA, PMMA)
Materiál krycího skla:	PMMA
Způsoby připojení:	Connector M8 4 pin

Okolní podmínky

Pracovní teplota:	-25 - +60 °C
Třída krytí:	IP 67
