ajptech.cz > Produkty > Průmyslové kamery > Průmyslové kamery > Kamery se základními funkcemi > Rychlé a spolehlivé kamery s CMOS snímači > VCXG-25M

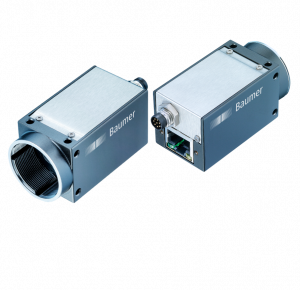

VCXG-25M

1920 x 1200 px
onsemi PYTHON2000
2/3" CMOS
53 fps
Gigabit Ethernet

Objednací číslo: 11165829
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Informace o snímači

Snímač:	onsemi PYTHON2000
Mono/Color:	Mono
Typ snímače:	2/3″ CMOS
Typ závěrky:	Global shutter
Rozlišení:	1920 × 1200 px
Rozměry pixelu:	4.8 × 4.8 µm
Expoziční čas:	0.02 - 1000 ms

Kvalita dat (EMVA 1288)

Temný šum:	10.93 e-
Saturační kapacita:	9207 e-
Dynamický rozsah:	57.9 dB
Poměr signál/šum:	39.6 dB
Kvantová účinnost:	57.2 % @ 536 nm

Formáty obrazu

Formáty obrazu, max. frekvence snímků na komunikačním rozhraní:	Full Frame, 1920 × 1200 px, max. 53 fps Binning 2×2, 960 × 600 px, max. 59 fps Binning 2×1, 960 × 1200 px, max. 59 fps Binning 1×2, 1920 × 600 px, max. 59 fps
Formáty obrazu, maximální frekvence sběru snímků (Burst Mód):	Full Frame, 1920 × 1200 px, max. 59 fps
Formát pixelu:	Mono8 Mono10

Předzpracování obrazu

Analogové ovládací prvky:	Gain (0 - 12 dB) Offset (0 - 63 LSB 10 Bit)
Barevné modely:	Mono

Funkce kamery

Základní funkce:	Exposure Gain Trigger / Exposure Active (Flash) Binning 2x2 Partial Scan Offset Free Running Mode (Live Image)
Automatické funkce:	Exposure Auto Gain Auto
Předzpracování obrazu:	Image Flipping (X/Y) LUT / Gamma
Akvizice / Rozhraní:	Burst Mode Adjustable Framerate Device Link Throughput Limit Internal Image Buffer
Synchronizace:	free running trigger
Zdroje spouštěcího signálu (trigger):	Hardware Software ActionCommand
Zpoždění spouštěcího signálu (trigger):	0 - 2 s, tracking and buffering of up to 256 trigger signals
Procesní synchronizace:	Events Timer Trigger Delay Debouncer Counter Sequencer Trigger via Action CMD (GigE) Additional Output Modes (e.g. Trigger Ready) Chunk data inside transferred image Encoder support via Counter End trigger source
Další funkce:	User Set Integrated temperature sensor Readable additional information (e.g. sensor information) Save Custom Data
Interní vyrovnávací paměť:	53 MB 8 images (Trigger Mode) 1 image (Free Running Mode)

Rozhraní a připojení

Datové rozhraní:	Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screwable type
Rozhraní:	M8 / 8 pins (SACC-DSI-M8MS-8CON-M8-L180)
Napájení:	via M8/8 pins or Power over Ethernet (PoE)

Mechanické parametry

Závit objektivu:	C-mount
Šířka:	29 mm
Výška:	29 mm
Hloubka:	49 mm
Hmotnost:	≤ 120 g
Materiál:	zinc die casting, baked varnish (until 02-2020 nickel-chrome-plated), IP 40

Elektrické parametry

Rozsah napájecího napětí +Vs:	12 - 24 V DC (external power supply) 36 - 57 V DC (Power over Ethernet)
Spotřeba energie:	Approx. 2.9 W @ 12 VDC and 53 fps Approx. 3.5 W @ 48 VDC (PoE) and 53 fps

Nevolatilní paměť

Velikost flash paměti:

128 kB

Podmínky prostředí

Pracovní teplota:	0 - +65 ° @ T = measurement point
Skladovací teplota:	-20 - +70 °C
Vlhkost:	10 - 90 % (non-condensing)
Třída krytí:	IP 40 (with mounted lens and cable)

Digitální vstupy|výstupy

Linky:

1 input line
1 output line
2 general purpose lines

Prohlášení o shodě

Prohlášení o shodě:

CE
RoHS
KC (MISP-REI-BkR-VCXG-53M)
EAC
BIS-CRS (R-41207004)

Foto	Produkt (1) / Popis	Skladová dostupnost
	Z-Power Supply Kit LX PX VCXG int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for LX, PX and VCXG cameras, length 5,0 m	1 ks

Foto	Produkt (1) / Popis	Skladová dostupnost
	VCXG Starter Kit GigE PCIe interface board GigE cable 3,0 m power supply kit for LX and VCXG cameras Mounting Adapter Type E Software (WINDOWS, LINUX, LINUX ARM) via Download camera not included	na dotaz

Foto	Produkt (3) / Popis	Skladová dostupnost
	PCIe Ethernet Server Adapter I210 Gigabit Ethernet network adapter PCIe x1 (single lane) server adapter single GigE port supports screw lock connectors	na dotaz
	ZVA-Intel_Eth_Serv Adaptr_I350-T2V2 Gigabit Ethernet network adapter PCIe x2 (dual lane) server adapter single GigE port	na dotaz
	ZVA-PCIe-1672E-AE Gigabit Ethernet interface board PCIe x4 (quad lane) Dual GigE port Note: 4 lane PCI Express connector required	na dotaz

Foto	Produkt (7)
	Clamp Elements CX 29 x 29 mm V4A IP69K
	Cover Glass Replacement Acryl 2"
	Housing base set B V4A VCXG.I r IP69K
	Housing V4A IP69K Mounting Tool
	Rotation lock M40 VA4 IP69K
	Sealing ReplacementSet Housing V4A IP69K
	Tube M60 V4A IP69K Acryl

Foto	Produkt (8) / Popis	Skladová dostupnost
	Close-up ring set ZVS-FP-RGST six-piece Close-up ring set ZVS-FP-RGST six-piece 0,5, 1, 5, 10, 20, 40 mm	1 ks
	Filter CL/27 (R2) ROT PENTAX Ricoh color filter (red)	na dotaz
	Filter Pol PENTAX PL27 Ricoh polarization filter linear filter thread	na dotaz
	ZVF-Filter Holder Mounting Tool Mounting tool to screw in filter holders	na dotaz
	ZVI-FILTER POL. PL30.5 C91353 Ricoh polarization filter linear filter thread M30.5	na dotaz
	ZVI-Filter Pol. PL40.5 C91301 Ricoh polarization filter linear filter thread M40.5	1 ks
	ZVK-IR/UV Filter Sealing Pack 1.63*11.3 5 IR/UV cut filters and sealings for VCX cameras with ONSemi Python2000 and Python5000 sensors to install a filter in monochrome models The exchange causes a modification of the optical distance and makes the focal flange distance longer. Please check the suitability of the chosen lens.	na dotaz
	ZVL-Adapter S-Mount / C-Mount Adapter S-mount / C-mount	na dotaz

Foto	Produkt (12) / Popis	Skladová dostupnost
	Obj Kowa LM12HC 12mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM12HC-SW 12,5mm/f1,4 Kowa lens 12,5 mm F 1,4-16 format 1" locating screw for aperture and focus via RS485 interface M.O.D. 0,9 m C-mount	na dotaz
	Obj Kowa LM16HC 16mm/f1,4 Kowa lens 16 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM25HC 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	1 ks
	Obj Kowa LM25HC-SW 25mm/f1,4 Kowa lens 25 mm F 1,4-16 format 1" M.O.D. 0,3 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM35HC 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,3 m C-mount	na dotaz
	Obj Kowa LM35HC-SW 35mm/f1,4 Kowa lens 35 mm F 1,4-16 format 1" M.O.D. 0,4 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM50HC 50mm/f1,4 Kowa lens 50 mm F 1,4-16 format 1" M.O.D. 0,5 m C-mount	na dotaz
	Obj Kowa LM50HC-SW 50mm/f1,4 Kowa lens 50mm F1,4-16 format 1" M.O.D. 0,6 m SWIR optimized C-mount	na dotaz
	Obj Kowa LM8HC 8mm/f1,4 Kowa lens 8 mm F 1,4-16 format 1" M.O.D. 0,1 m C-mount	na dotaz
	Obj Kowa LM8JCM 8mm/f1,4 Kowa lens 8 mm F 1,4 format 2/3" M.O.D. 0,1 m C-mount	na dotaz
	ZVL-LM6HC Kowa lens 6 mm F 1,8-16 format 1" M.O.D. 0,1 m C-mount	na dotaz

Foto	Produkt (1) / Popis	Skladová dostupnost
	GigE Power Switch GigE switch PoE and Jumbo Frame support 4x 1000base-T DIN rail mounting operating voltage: 24-48 V; PoE requires 48 V	na dotaz

Foto	Produkt (12) / Popis	Skladová dostupnost
	Adapter Cable TX to VCXG VCXU Adaptér pro připojení kamer VCXG a VCXU ke stávající kabeláži TXG Dělený kabel M12/12 pinový (F) konektor na 1x M8/3 pinový (M) konektor (napájení) a 1x M8/4 pinový (M) konektor (I/O) Třída ochrany IP65/IP67 Délka 0.4 m	na dotaz
	Cable GigE RJ45/RJ45, 3,0 m Kabel rozhraní Gigabit Ethernet CAT7 Délka 3,0 m	na dotaz
	Cable GigE RJ45/RJ45, 6,0 m Kabel rozhraní Gigabit Ethernet CAT7 Délka 6,0 m	na dotaz
	Cable GigE RJ45s/RJ45, 10,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 10,0 m	na dotaz
	Cable GigE RJ45s/RJ45, 20,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 20 m	na dotaz
	Cable GigE RJ45s/RJ45, 30,0 m, flex v2 Kabel rozhraní Gigabit Ethernet CAT5e RJ45 (šroubovací) na RJ45 vhodné pro kabelové nosiče a torzní aplikace Délka 30 m	na dotaz
	Kabel GigE RJ45s/RJ45, 10,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 10,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 15,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 15,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 20,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 20,0 m	na dotaz
	Kabel GigE RJ45s/RJ45, 5,0 m, chain Gigabit Ethernet interface cable CAT6 RJ45 (screw lock) to RJ45 cable carrier compatible length 5,0 m	5 ks
	Z-ESG 32FP0500G shielded process interface cable M8/8-pin female connector to open wires cable carrier compatible length 5,0 m	na dotaz
	Z-ESW 31FH0500 process interface cable 90° angled M8/8-pin female connector to open wires length 5,0 m alternative article: CAM8.A8-11232605	na dotaz

Foto	Produkt (5) / Popis	Skladová dostupnost
	Adapter CX- / TX-Mount montážní adaptér pro kamery řady CX a EX pro dosažení montážních rozměrů kamer TX včetně šroubů (s inbusem)	na dotaz
	Heat Sink Type C heat sink for cameras of the CX and EX series incl. screws (hexagon socket) 50 mm x 64 mm x 20 mm	1 ks
	Mounting Adapter Type D (Front) mounting adapter for VCXU, VCXG and VCXG.I cameras incl. screw (hexagon socket) stable front side mounting	na dotaz
	Mounting Adapter Type E camera mounting for cameras of the CX and EX series incl. screws (hexagon socket) stable bottom and tripod mounting	na dotaz
	Mounting Adapter Type H camera mounting adapter for cameras of the CX, LX and QX series incl. screw (hexagon socket) rotatable mounting	1 ks

Produkt (50)	Senzor	Senzor typ	Snímkovací frekvence	Rozlišení senzoru	Skladová dostupnost
VCXG-02C	onsemi PYTHON300	1/4″ CMOS	401 … 500 fps	640 × 480 px	na dotaz
VCXG-02M	onsemi PYTHON300	1/4″ CMOS	401 … 500 fps	640 × 480 px	na dotaz
VCXG-04C	Sony IMX287 Gen2	1/2.9″ CMOS	301 … 400 fps	720 × 540 px	na dotaz
VCXG-04M	Sony IMX287 Gen2	1/2.9″ CMOS	301 … 400 fps	720 × 540 px	na dotaz
VCXG-124C	Sony IMX304 Gen2	1.1″ CMOS	1 … 10 fps	4096 × 3000 px	na dotaz
VCXG-124C.PTP	Sony IMX304 Gen2	1.1″ CMOS	1 … 10 fps	4096 × 3000 px	na dotaz
VCXG-124M	Sony IMX304 Gen2	1.1″ CMOS	1 … 10 fps	4096 × 3000 px	na dotaz
VCXG-124M.PTP	Sony IMX304 Gen2	1.1″ CMOS	1 … 10 fps	4096 × 3000 px	na dotaz
VCXG-125C.R	Sony IMX226	1/1.7″ CMOS	1 … 10 fps	4000 × 3000 px	na dotaz
VCXG-125M.R	Sony IMX226	1/1.7″ CMOS	1 … 10 fps	4000 × 3000 px	na dotaz
VCXG-127C.I	Sony IMX545 Gen4	1/1.1" CMOS	1 … 10 fps	4096 × 2992 px	na dotaz
VCXG-127C.I.XT	Sony IMX545 Gen4	1/1.1" CMOS	11 … 20 fps	4096 × 2992 px	na dotaz
VCXG-127M.I	Sony IMX545 Gen4	1/1.1" CMOS	1 … 10 fps	4096 × 2992 px	na dotaz
VCXG-127M.I.XT	Sony IMX545 Gen4	1/1.1" CMOS	1 … 10 fps	4096 × 2992 px	na dotaz
VCXG-13C	onsemi PYTHON1300	1/2″ CMOS	51 … 100 fps	1280 × 1024 px	na dotaz
VCXG-13M	onsemi PYTHON1300	1/2″ CMOS	51 … 100 fps	1280 × 1024 px	na dotaz
VCXG-13NIR	onsemi PYTHON1300	1/2″ CMOS	51 … 100 fps	1280 × 1024 px	na dotaz
VCXG-14SWIR.XC	Sony IMX990	1/2″ CMOS	51 … 100 fps	1296 × 1032 px	na dotaz
VCXG-15C	Sony IMX273 Gen2	1/2.9″ CMOS	51 … 100 fps	1440 × 1080 px	na dotaz
VCXG-15C.PTP	Sony IMX273 Gen2	1/2.9″ CMOS	51 … 100 fps	1440 × 1080 px	na dotaz
VCXG-15M	Sony IMX273 Gen2	1/2.9″ CMOS	51 … 100 fps	1440 × 1080 px	na dotaz
VCXG-15M.PTP	Sony IMX273 Gen2	1/2.9″ CMOS	51 … 100 fps	1440 × 1080 px	na dotaz
VCXG-201C.R	Sony IMX183	1″ CMOS	1 … 10 fps	5472 × 3648 px	1 ks
VCXG-201C.R.I	Sony IMX183	1″ CMOS	1 … 10 fps	5472 × 3648 px	na dotaz
VCXG-201M.R	Sony IMX183	1″ CMOS	1 … 10 fps	5472 × 3648 px	na dotaz
VCXG-201M.R.I	Sony IMX183	1″ CMOS	1 … 10 fps	5472 × 3648 px	na dotaz
VCXG-22C.R	Sony IMX290	1/2.8″ CMOS	51 … 100 fps	1920 × 1080 px	na dotaz
VCXG-22M.R	Sony IMX290	1/2.8″ CMOS	51 … 100 fps	1920 × 1080 px	na dotaz
VCXG-23C	Sony IMX174 Gen1	1/1.2" CMOS	51 … 100 fps	1920 × 1200 px	na dotaz
VCXG-23M	Sony IMX174 Gen1	1/1.2" CMOS	51 … 100 fps	1920 × 1200 px	na dotaz
VCXG-241C.I	Sony IMX540 Gen4	1.2″ CMOS	1 … 10 fps	5312 × 4592 px	na dotaz
VCXG-241C.I.XT	Sony IMX540 Gen4	1.2″ CMOS	1 … 10 fps	5312 × 4592 px	na dotaz
VCXG-241M.I	Sony IMX540 Gen4	1.2″ CMOS	1 … 10 fps	5312 × 4592 px	na dotaz
VCXG-241M.I.XT	Sony IMX540 Gen4	1.2″ CMOS	1 … 10 fps	5312 × 4592 px	na dotaz
VCXG-24C	Sony IMX249 Gen1	1/1.2" CMOS	31 … 40 fps	1920 × 1200 px	na dotaz
VCXG-24M	Sony IMX249 Gen1	1/1.2" CMOS	31 … 40 fps	1920 × 1200 px	na dotaz
VCXG-25C	onsemi PYTHON2000	2/3″ CMOS	51 … 100 fps	1920 × 1200 px	na dotaz
VCXG-25M	onsemi PYTHON2000	2/3″ CMOS	51 … 100 fps	1920 × 1200 px	na dotaz
VCXG-32C	Sony IMX265 Gen2	1/1.8″ CMOS	31 … 40 fps	2048 × 1536 px	na dotaz
VCXG-32C.PTP	Sony IMX265 Gen2	1/1.8″ CMOS	31 … 40 fps	2048 × 1536 px	na dotaz
VCXG-32M	Sony IMX265 Gen2	1/1.8″ CMOS	31 … 40 fps	2048 × 1536 px	na dotaz
VCXG-32M.PTP	Sony IMX265 Gen2	1/1.8″ CMOS	31 … 40 fps	2048 × 1536 px	na dotaz
VCXG-50MP	Sony IMX250MZR	2/3″ CMOS	21 … 30 fps	2448 × 2048 px	na dotaz
VCXG-51C	Sony IMX264 Gen2	2/3″ CMOS	21 … 30 fps	2448 × 2048 px	na dotaz
VCXG-51C.PTP	Sony IMX264 Gen2	2/3″ CMOS	21 … 30 fps	2448 × 2048 px	na dotaz
VCXG-51M	Sony IMX264 Gen2	2/3″ CMOS	21 … 30 fps	2448 × 2048 px	na dotaz
VCXG-51M.PTP	Sony IMX264 Gen2	2/3″ CMOS	21 … 30 fps	2448 × 2048 px	na dotaz
VCXG-51M.XC	Sony IMX264 Gen2	2/3″ CMOS	21 … 30 fps	2448 × 2048 px	na dotaz
VCXG-53C	onsemi PYTHON5000	1″ CMOS	21 … 30 fps	2592 × 2048 px	1 ks
VCXG-53M	onsemi PYTHON5000	1″ CMOS	21 … 30 fps	2592 × 2048 px	na dotaz

Napište nám

V případě jakéhokoli dotazu nás neváhejte kontaktovat. Velice rádi Vám odpovíme.

ajptech.cz logo

:: Generated at: 21.03.2025 09:07.50 :: Generated in: 0.857 sec :: SQL calls: 384 | SqlCacheCalls: 818 :: Max memory: 7.63mb ::
:: UserID: :: Debug all: 1 :: Version: frams_sys_func(20240408), frams_sys_form(20250224), frams_func_web_shared(20240812), frams_func_web_show(20240813), frams_web_modules(20230925), ::

Traced system calls log (464 / 465)	Taken	Runtime	Memory
SYS INIT \| Basic functions loaded	0.0001	0.0001	352.65 kb
SYS INIT \| Web functions loaded	0.0000	0.0001	354.20 kb
SQL (std)\| DB connecting start DB 477_ajptech@477_ajptech - flush before	0.0001	0.0002	361.00 kb
SQL (std)\| DB connected to DB 477_ajptech	0.0038	0.0040	404.65 kb
SQL (std)\| Charset server default: utf8mb4 (no need to change)	0.0000	0.0040	405.61 kb
SYS INIT \| Web settings from DB \| Start	0.0000	0.0040	403.72 kb
CACHE FILE \| READ \| sys_settings \| Unserialized	0.0039	0.0079	484.62 kb
SYS INIT \| Web settings from DB \| Loaded	0.0000	0.0079	449.30 kb
SYS AUTOLOAD CLASS \| mod_gallery \| Start	0.0000	0.0079	450.94 kb
SYS AUTOLOAD CLASS \| mod_gallery \| Loaded	0.0001	0.0080	452.64 kb
SYS AUTOLOAD CLASS \| mod_search \| Start	0.0000	0.0080	452.88 kb
SYS AUTOLOAD CLASS \| mod_search \| Loaded	0.0000	0.0080	453.91 kb
SYS AUTOLOAD CLASS \| mod_cookie_eu \| Start	0.0000	0.0080	453.91 kb
SYS AUTOLOAD CLASS \| mod_cookie_eu \| Loaded	0.0000	0.0080	455.55 kb
SYS AUTOLOAD CLASS \| mod_sliderbx \| Start	0.0001	0.0081	455.55 kb
SYS AUTOLOAD CLASS \| mod_sliderbx \| Loaded	0.0000	0.0081	456.41 kb
SYS INIT \| LoadWebModules \| Start	0.0000	0.0081	456.12 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpcat/_functions.php \| Done	0.0001	0.0082	501.44 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpeople/_functions.php \| Done	0.0000	0.0082	506.96 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpart/_functions.php \| Done	0.0001	0.0083	533.66 kb
SYS INIT \| LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpusec/_functions.php \| Done	0.0000	0.0083	535.43 kb
SYS INIT \| Web modules loaded	0.0000	0.0083	534.48 kb
TIMING \| GetPageInfo - Start	0.0000	0.0083	534.48 kb
SQL (std)\| SELECT * FROM `webpages_aliases` WHERE `address_complete`='produkty/prumyslove-snimace-a-kamery/kamery-a-ctecky/prumyslove-kamery/kamery-se-zakladnimi-funkcemi/rychle-a-spolehlive-kamery-s-cmos-snimaci/vcxg_25m' AND `active`='1' LIMIT 1	0.0014	0.0097	553.19 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_items` WHERE `id`='33' LIMIT 1	0.0012	0.0109	638.16 kb
SQL (std)\| SELECT `id` FROM `webpages_data` WHERE webpages_aliases_hash='6ffd79b77e14cc85ade9e9e8e2fd70ff' AND del='0'	0.0017	0.0126	614.43 kb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='224' LIMIT 1	0.0084	0.0210	4.32 mb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='263' LIMIT 1	0.0015	0.0225	2.47 mb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='538' LIMIT 1	0.0007	0.0232	2.48 mb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='36' LIMIT 1	0.0007	0.0239	2.48 mb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='17' LIMIT 1	0.0010	0.0249	2.48 mb
SQL (std)\| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='2' LIMIT 1	0.0084	0.0333	2.49 mb
TIMING \| GetPageInfo - Done	0.0001	0.0334	2.47 mb
TIMING \| OG Image - Start gen info	0.0007	0.0341	2.45 mb
TIMING \| OG Image - End gen info	0.0008	0.0349	2.46 mb
CACHE FILE \| GET \| mod_cookie_eu ()	0.0005	0.0354	2.46 mb
CACHE FILE \| READ \| mod_cookie_eu \| Unserialized	0.0010	0.0364	2.48 mb
TIMING \| Main menu - Start generate	0.0006	0.0370	2.48 mb
CACHE FILE \| GET \| sys_menu (TO_LEVEL;1\|IDSW_LANGUAGES;1\|SET_MENU_ID;menu\|SET_MENU_CLASS;menu\|PRECACHE_URLS;3765dc1068dc7251097873029d8365d2\|LEVEL;0\|)	0.0001	0.0371	2.49 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0011	0.0382	2.59 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`default_page`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `active`='1' AND (`id_webpages_data`='15')	0.0008	0.0390	2.56 mb
TIMING \| Main menu - End generate	0.0003	0.0393	2.54 mb
CACHE FILE \| GET \| mod_search_web_show (show)	0.0000	0.0393	2.55 mb
CACHE FILE \| READ \| mod_search_web_show \| Unserialized	0.0010	0.0403	2.55 mb
TIMING \| Text - Start generate	0.0004	0.0407	2.56 mb
CACHE FILE \| GET \| mod_ajpcat_show_item (;ID_ITEMS\|33;33\|;ID_CATEGORIES\|224;224\|;LANG\|cz;cz\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|USEC-LOGGED;\|)	0.0001	0.0408	2.56 mb
CACHE FILE \| FAILED \| mod_ajpcat_show_item (;ID_ITEMS\|33;33\|;ID_CATEGORIES\|224;224\|;LANG\|cz;cz\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|USEC-LOGGED;\|) \| OVERDATE / NOT EXISTS - NOT USED	0.0008	0.0416	2.56 mb
CACHE FILE \| CATCH START \| mod_ajpcat_show_item	0.0000	0.0416	2.56 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0416	2.57 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0416	2.57 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0416	2.57 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0416	2.57 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0416	2.57 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_list_manufacturer` WHERE `id`='1' LIMIT 1	0.0009	0.0425	2.58 mb
SQL (std)\| SELECT store_card_name,sum_quantity FROM `mod_ajpcat_abra` WHERE del='0' AND id_items_grouped LIKE '%\|33\|%'	0.0094	0.0519	2.59 mb
SQL (std)\| SELECT `id`,`text_info_cz` FROM `mod_ajpcat_list_availability` WHERE `id`='1' LIMIT 1	0.0009	0.0528	2.60 mb
SQL (std)\| SELECT * FROM mod_ajpeople_items WHERE published_cz='1' AND del='0' AND ( id='31' ) ORDER BY priority DESC, name_cz ASC	0.0012	0.0540	2.62 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e6c55188740b469463a111f645c33b72' LIMIT 1	0.0007	0.0547	2.64 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0001	0.0548	2.63 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0548	2.63 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0548	2.63 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0548	2.63 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0548	2.63 mb
SQL (std)\| SELECT * FROM mod_ajpeople_items WHERE published_cz='1' AND del='0' AND ( id='31' ) ORDER BY priority DESC, name_cz ASC	0.0066	0.0614	2.63 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0001	0.0615	2.64 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0615	2.64 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0615	2.64 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0615	2.64 mb
CACHE FILE \| CATCH ADD \| mod_ajpcat_show_item \|	0.0000	0.0615	2.64 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_blocks` WHERE `id_items`='33' AND del='0' ORDER BY priority DESC, id ASC	0.0036	0.0651	2.63 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_availability` WHERE `id`='1' LIMIT 1	0.0024	0.0675	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_operating_temperature` WHERE `id`='41' LIMIT 1	0.0047	0.0722	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='42' LIMIT 1	0.0017	0.0739	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_data_interface` WHERE `id`='1' LIMIT 1	0.0014	0.0753	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution1` WHERE `id`='4' LIMIT 1	0.0051	0.0804	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='6' LIMIT 1	0.0050	0.0854	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_protection_class` WHERE `id`='28' LIMIT 1	0.0056	0.0910	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_color_models` WHERE `id`='2' LIMIT 1	0.0044	0.0954	2.64 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='85' LIMIT 1	0.0103	0.1057	2.65 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_pixel_size` WHERE `id`='1' LIMIT 1	0.0015	0.1072	2.65 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='5' LIMIT 1	0.0013	0.1085	2.65 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_shutter_type` WHERE `id`='1' LIMIT 1	0.0034	0.1119	2.65 mb
SQL (std)\| SELECT id FROM `mod_ajpcat_items` WHERE `del`='0' AND ( `id_items_related_1`='33' OR `id_items_related_2`='33' OR `id_items_related_3`='33' OR `id_items_related_4`='33' OR `id_items_related_5`='33' )	0.0774	0.1893	2.65 mb
SQL (std)\| SELECT id FROM `mod_ajpcat_items` WHERE `del`='0' AND ( `id_items_related_1`='33' OR `id_items_related_2`='33' OR `id_items_related_3`='33' OR `id_items_related_4`='33' OR `id_items_related_5`='33' OR `id_items_accessories_1`='33' OR `id_items_accessories_2`='33' OR `id_items_accessories_3`='33' OR `id_items_accessories_4`='33' OR `id_items_accessories_5`='33' OR `id_items_accessories_6`='33' OR `id_items_accessories_7`='33' OR `id_items_accessories_8`='33' OR `id_items_accessories_9`='33' OR `id_items_accessories_10`='33' OR `id_items_accessories_11`='33' OR `id_items_accessories_12`='33' OR `id_items_accessories_13`='33' OR `id_items_accessories_14`='33' OR `id_items_accessories_15`='33' )	0.0790	0.2683	2.67 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22678'	0.0174	0.2857	2.67 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='3659' AND del='0'	0.0077	0.2934	2.67 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20285' AND del='0'	0.0029	0.2963	2.68 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20285' LIMIT 1	0.0008	0.2971	2.68 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Sensor'	0.0007	0.2978	2.68 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28968' AND del='0'	0.0032	0.3010	2.69 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28968' LIMIT 1	0.0010	0.3020	2.69 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Mono/Color'	0.0007	0.3027	2.69 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20281' AND del='0'	0.0014	0.3041	2.69 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20281' LIMIT 1	0.0006	0.3047	2.69 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Sensor type'	0.0007	0.3054	2.69 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='23925' AND del='0'	0.0012	0.3066	2.70 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='23925' LIMIT 1	0.0007	0.3073	2.70 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Shutter type'	0.0006	0.3079	2.70 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20306' AND del='0'	0.0021	0.3100	2.70 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20306' LIMIT 1	0.0007	0.3107	2.70 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Resolution'	0.0008	0.3115	2.70 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20309' AND del='0'	0.0013	0.3128	2.71 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20309' LIMIT 1	0.0007	0.3135	2.71 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Pixel size'	0.0006	0.3141	2.71 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20298' AND del='0'	0.0013	0.3154	2.71 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20298' LIMIT 1	0.0006	0.3160	2.71 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Exposure time'	0.0006	0.3166	2.71 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Sensor information'	0.0006	0.3172	2.71 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='29045' AND del='0'	0.0015	0.3187	2.72 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29045' LIMIT 1	0.0008	0.3195	2.72 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Dark noise'	0.0007	0.3202	2.72 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='29046' AND del='0'	0.0011	0.3213	2.72 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29046' LIMIT 1	0.0006	0.3219	2.72 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Saturation capacity'	0.0007	0.3226	2.73 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='29047' AND del='0'	0.0011	0.3237	2.73 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29047' LIMIT 1	0.0006	0.3243	2.73 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Dynamic range'	0.0006	0.3249	2.73 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='29048' AND del='0'	0.0031	0.3280	2.74 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29048' LIMIT 1	0.0017	0.3297	2.74 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Signal-to-noise ratio'	0.0010	0.3307	2.74 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='29049' AND del='0'	0.0012	0.3319	2.74 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='29049' LIMIT 1	0.0006	0.3325	2.74 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Quantum efficiency'	0.0007	0.3332	2.74 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Data quality (EMVA 1288 typical)'	0.0006	0.3338	2.74 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20312' AND del='0'	0.0014	0.3352	2.75 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20312' LIMIT 1	0.0013	0.3365	2.75 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Image formats, interface frame rate max.'	0.0007	0.3372	2.75 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22798' AND del='0'	0.0011	0.3383	2.75 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='22798' LIMIT 1	0.0007	0.3390	2.75 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Image formats, aquisition frame rate max. (Burst Mode)'	0.0007	0.3397	2.75 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20310' AND del='0'	0.0012	0.3409	2.76 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20310' LIMIT 1	0.0006	0.3415	2.76 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Pixel formats'	0.0006	0.3421	2.76 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Acquisition formats'	0.0007	0.3428	2.77 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20201' AND del='0'	0.0022	0.3450	2.77 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20201' LIMIT 1	0.0007	0.3457	2.77 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Analog controls'	0.0014	0.3471	2.77 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20198' AND del='0'	0.0014	0.3485	2.77 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20198' LIMIT 1	0.0010	0.3495	2.77 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Color models'	0.0013	0.3508	2.78 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Image preprocessing'	0.0009	0.3517	2.78 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28950' AND del='0'	0.0011	0.3528	2.78 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28950' LIMIT 1	0.0006	0.3534	2.78 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Basic Functions'	0.0007	0.3541	2.78 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28951' AND del='0'	0.0012	0.3553	2.78 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28951' LIMIT 1	0.0042	0.3595	2.79 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Auto Functions'	0.0008	0.3603	2.79 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28952' AND del='0'	0.0010	0.3613	2.79 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28952' LIMIT 1	0.0006	0.3619	2.79 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Image Pre-processing'	0.0007	0.3626	2.79 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28953' AND del='0'	0.0020	0.3646	2.80 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28953' LIMIT 1	0.0018	0.3664	2.80 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Acquisition / Interface'	0.0008	0.3672	2.80 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20268' AND del='0'	0.0017	0.3689	2.80 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20268' LIMIT 1	0.0007	0.3696	2.80 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Synchronization'	0.0006	0.3702	2.80 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20266' AND del='0'	0.0013	0.3715	2.80 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20266' LIMIT 1	0.0007	0.3722	2.80 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Trigger sources'	0.0006	0.3728	2.80 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20267' AND del='0'	0.0013	0.3741	2.81 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20267' LIMIT 1	0.0006	0.3747	2.81 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Trigger delay'	0.0007	0.3754	2.81 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28954' AND del='0'	0.0010	0.3764	2.81 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28954' LIMIT 1	0.0008	0.3772	2.81 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Process Synchronization'	0.0007	0.3779	2.82 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='28956' AND del='0'	0.0012	0.3791	2.82 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='28956' LIMIT 1	0.0013	0.3804	2.82 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Additional Functions'	0.0013	0.3817	2.82 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20272' AND del='0'	0.0015	0.3832	2.82 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20272' LIMIT 1	0.0013	0.3845	2.82 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Internal image buffer'	0.0007	0.3852	2.83 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Camera features'	0.0009	0.3861	2.83 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20188' AND del='0'	0.0013	0.3874	2.83 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20188' LIMIT 1	0.0006	0.3880	2.83 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Data interface'	0.0007	0.3887	2.83 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20221' AND del='0'	0.0013	0.3900	2.84 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20221' LIMIT 1	0.0007	0.3907	2.84 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Process interface'	0.0009	0.3916	2.84 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20175' AND del='0'	0.0012	0.3928	2.84 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20175' LIMIT 1	0.0006	0.3934	2.85 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Power supply'	0.0007	0.3941	2.85 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Interfaces and connectors'	0.0006	0.3947	2.85 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20163' AND del='0'	0.0014	0.3961	2.85 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20163' LIMIT 1	0.0007	0.3968	2.86 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Lens mount'	0.0008	0.3976	2.86 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20157' AND del='0'	0.0013	0.3989	2.86 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20157' LIMIT 1	0.0006	0.3995	2.86 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Width'	0.0008	0.4003	2.86 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20150' AND del='0'	0.0013	0.4016	2.87 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20150' LIMIT 1	0.0006	0.4022	2.87 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Height'	0.0007	0.4029	2.87 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20143' AND del='0'	0.0012	0.4041	2.87 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20143' LIMIT 1	0.0006	0.4047	2.87 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Depth'	0.0006	0.4053	2.87 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20152' AND del='0'	0.0013	0.4066	2.88 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20152' LIMIT 1	0.0006	0.4072	2.88 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Weight'	0.0007	0.4079	2.88 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20147' AND del='0'	0.0018	0.4097	2.88 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20147' LIMIT 1	0.0009	0.4106	2.88 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Material'	0.0051	0.4157	2.88 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Mechanical data'	0.0015	0.4172	2.89 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20240' AND del='0'	0.0020	0.4192	2.89 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20240' LIMIT 1	0.0006	0.4198	2.89 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Voltage supply range +Vs'	0.0019	0.4217	2.89 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20228' AND del='0'	0.0023	0.4240	2.90 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20228' LIMIT 1	0.0007	0.4247	2.90 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Power consumption'	0.0007	0.4254	2.90 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Electrical data'	0.0010	0.4264	2.90 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22248' AND del='0'	0.0012	0.4276	2.90 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='22248' LIMIT 1	0.0007	0.4283	2.90 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Flash memory size'	0.0008	0.4291	2.90 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Non-volatile memory'	0.0027	0.4318	2.91 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20120' AND del='0'	0.0038	0.4356	2.91 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20120' LIMIT 1	0.0015	0.4371	2.91 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Operating temperature'	0.0030	0.4401	2.91 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20113' AND del='0'	0.0153	0.4554	2.91 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20113' LIMIT 1	0.0102	0.4656	2.92 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Storage temperature'	0.0015	0.4671	2.92 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20112' AND del='0'	0.0015	0.4686	2.92 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20112' LIMIT 1	0.0007	0.4693	2.92 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Humidity'	0.0022	0.4715	2.92 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20109' AND del='0'	0.0012	0.4727	2.92 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20109' LIMIT 1	0.0006	0.4733	2.92 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Protection class'	0.0007	0.4740	2.92 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Environmental conditions'	0.0006	0.4746	2.93 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='20260' AND del='0'	0.0012	0.4758	2.93 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='20260' LIMIT 1	0.0006	0.4764	2.93 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Lines'	0.0007	0.4771	2.93 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Digital I/Os'	0.0007	0.4778	2.93 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22340' AND del='0'	0.0012	0.4790	2.93 mb
SQL (std)\| SELECT `id`,`label` FROM `mod_ajpcat_baumer_attributes` WHERE `id`='22340' LIMIT 1	0.0007	0.4797	2.93 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='2' AND name_en='Conformity'	0.0007	0.4804	2.94 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='1' AND name_en='Conformity'	0.0006	0.4810	2.94 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='3679' AND del='0'	0.0168	0.4978	2.94 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Data sheet'	0.0037	0.5015	2.99 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Quickstart'	0.0035	0.5050	2.99 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Operating Manual'	0.0008	0.5058	2.99 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Certificates / approvals'	0.0093	0.5151	3.00 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='Additional information'	0.0031	0.5182	3.00 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='21' AND name_en='CAD'	0.0036	0.5218	3.00 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22171' AND del='0'	0.0038	0.5256	3.00 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='31' AND name_en='Dimension drawing'	0.0040	0.5296	2.97 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22172' AND del='0'	0.0036	0.5332	2.98 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='29468' AND del='0'	0.0123	0.5455	2.98 mb
SQL (std)\| SELECT `id`,`value` FROM `mod_ajpcat_baumer_items_attributes_11` WHERE id_baumer_items='23821' AND id_baumer_attributes='22185' AND del='0'	0.0201	0.5656	2.99 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24387' ) AND `del`='0'	0.0032	0.5688	3.04 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='420' ) ORDER BY priority DESC, name_cz ASC	0.0065	0.5753	3.08 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='271' LIMIT 1	0.0039	0.5792	3.10 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='1b694c99d16fb0aa778f2d227f3c2a29' LIMIT 1	0.0038	0.5830	3.13 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Power supply'	0.0019	0.5849	3.10 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7f100b7b36092fb9b06dfb4fac360931' LIMIT 1	0.0083	0.5932	3.13 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24401' ) AND `del`='0'	0.0008	0.5940	3.13 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='431' ) ORDER BY priority DESC, name_cz ASC	0.0010	0.5950	3.16 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='276' LIMIT 1	0.0007	0.5957	3.17 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='5caeff0624ca4e8bd8a6479465b17aee' LIMIT 1	0.0008	0.5965	3.20 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Starter Kit'	0.0007	0.5972	3.17 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='db8e1af0cb3aca1ae2d0018624204529' LIMIT 1	0.0007	0.5979	3.18 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24371' OR `id_baumer_items`='24381' OR `id_baumer_items`='24368' ) AND `del`='0'	0.0009	0.5988	3.17 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='411' OR id='412' OR id='416' ) ORDER BY priority DESC, name_cz ASC	0.0011	0.5999	3.20 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='273' LIMIT 1	0.0007	0.6006	3.22 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c18b79abc2d4476e3fd840c1890e19d0' LIMIT 1	0.0044	0.6050	3.25 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7194601022511ade89c2c4325238647d' LIMIT 1	0.0012	0.6062	3.27 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='22bafadac1f4e389a7eb43f533dedc8b' LIMIT 1	0.0019	0.6081	3.30 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='PCIe/Adapter'	0.0007	0.6088	3.26 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='4734ba6f3de83d861c3176a6273cac6d' LIMIT 1	0.0007	0.6095	3.27 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='38840' OR `id_baumer_items`='42545' OR `id_baumer_items`='38841' OR `id_baumer_items`='38843' OR `id_baumer_items`='42801' OR `id_baumer_items`='42802' OR `id_baumer_items`='38842' ) AND `del`='0'	0.0010	0.6105	3.27 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='5068' OR id='5069' OR id='5070' OR id='5071' OR id='12847' OR id='12921' OR id='12922' ) ORDER BY priority DESC, name_cz ASC	0.0012	0.6117	3.30 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='265' LIMIT 1	0.0007	0.6124	3.31 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='162caf779005fb6eb6229eb593b04aa5' LIMIT 1	0.0008	0.6132	3.35 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='96a7eb5a508eab274b4677f8624478d4' LIMIT 1	0.0008	0.6140	3.37 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='72ca5be7b4247e587f41711abe6086c3' LIMIT 1	0.0008	0.6148	3.39 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='487b74cb0b0ab59762b6df5ba7a0ca67' LIMIT 1	0.0007	0.6155	3.41 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='b204121e2f77f22e53a09208e8c2bfc0' LIMIT 1	0.0007	0.6162	3.44 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='97824f145b565b8427539f8b9930533e' LIMIT 1	0.0008	0.6170	3.46 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8ac0c4c219401b3e02f26eac1bc7e5fa' LIMIT 1	0.0007	0.6177	3.48 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Housing accessories'	0.0007	0.6184	3.44 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e56954b4f6347e897f954495eab16a88' LIMIT 1	0.0007	0.6191	3.45 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24341' OR `id_baumer_items`='24339' OR `id_baumer_items`='24342' OR `id_baumer_items`='24358' OR `id_baumer_items`='24359' OR `id_baumer_items`='24361' OR `id_baumer_items`='36736' OR `id_baumer_items`='24362' OR `id_baumer_items`='38185' ) AND `del`='0'	0.0009	0.6200	3.44 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='404' OR id='4832' OR id='4845' OR id='4846' OR id='4847' OR id='4848' OR id='3713' OR id='3775' ) ORDER BY priority DESC, name_cz ASC	0.0012	0.6212	3.48 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='268' LIMIT 1	0.0007	0.6219	3.49 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='03dbab5428e9ea03f7ff2c7efcd842c4' LIMIT 1	0.0008	0.6227	3.53 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='275b913c7b774b1193f15631719c0413' LIMIT 1	0.0008	0.6235	3.55 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='17954bc63e49ce90761ed20717a2b23f' LIMIT 1	0.0007	0.6242	3.57 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c82a62e381a88ff9ee546e06dbbeba27' LIMIT 1	0.0007	0.6249	3.60 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='122b5a31db9fdedb74f4577da08796a2' LIMIT 1	0.0007	0.6256	3.62 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2a12b02af0135c06a77733707f76aa71' LIMIT 1	0.0008	0.6264	3.64 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='cfdb7b77368b5f784be61b4663fdf40c' LIMIT 1	0.0006	0.6270	3.67 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='535083035fcb92f1a43df972c270fb17' LIMIT 1	0.0031	0.6301	3.69 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Lens accessories'	0.0014	0.6315	3.64 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8f121ce07d74717e0b1f21d122e04521' LIMIT 1	0.0009	0.6324	3.65 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='45171' OR `id_baumer_items`='45170' OR `id_baumer_items`='45172' OR `id_baumer_items`='45173' OR `id_baumer_items`='45174' OR `id_baumer_items`='45175' OR `id_baumer_items`='39578' OR `id_baumer_items`='24274' OR `id_baumer_items`='24262' OR `id_baumer_items`='24265' OR `id_baumer_items`='24267' OR `id_baumer_items`='38569' OR `id_baumer_items`='38570' OR `id_baumer_items`='24263' OR `id_baumer_items`='24268' OR `id_baumer_items`='24270' OR `id_baumer_items`='24272' OR `id_baumer_items`='24276' ) AND `del`='0'	0.0011	0.6335	3.64 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='338' OR id='339' OR id='341' OR id='343' OR id='344' OR id='346' OR id='348' OR id='350' OR id='352' OR id='3883' OR id='3884' OR id='5429' OR id='18534' OR id='18536' OR id='18538' OR id='18540' OR id='18542' OR id='18544' ) ORDER BY priority DESC, name_cz ASC	0.0018	0.6353	3.68 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='f00fb2bb3e523540b27e017d31097638' LIMIT 1	0.0009	0.6362	3.72 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='dccbf2d36be0372d490102c3ce366274' LIMIT 1	0.0007	0.6369	3.75 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ff104248a85cbf171f7055aea1ba63be' LIMIT 1	0.0009	0.6378	3.77 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='fce269624b4a4304b03b9ecfd5e86168' LIMIT 1	0.0010	0.6388	3.79 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='400d082ed778e9b7382d43c715710d68' LIMIT 1	0.0007	0.6395	3.81 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='f535e28587cbac4844bd0a8e0799be6c' LIMIT 1	0.0008	0.6403	3.83 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e77b8a0b3cd3187314b2e195ffbb5a57' LIMIT 1	0.0009	0.6412	3.86 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='b7f90c87d7e5697ba84445c02f4649fd' LIMIT 1	0.0007	0.6419	3.88 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a3808d80a829db0590c74264243a34e3' LIMIT 1	0.0011	0.6430	3.90 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='4638bdcc43083b8c4feb1a5002c1f336' LIMIT 1	0.0007	0.6437	3.92 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8c6f80495096e7040fd4d687df3438ca' LIMIT 1	0.0008	0.6445	3.94 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='fef5baf0193be60d71b20613d41e0678' LIMIT 1	0.0007	0.6452	3.97 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Lens'	0.0007	0.6459	3.92 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24245' OR `id_baumer_items`='24244' ) AND `del`='0'	0.0008	0.6467	3.92 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='326' ) ORDER BY priority DESC, name_cz ASC	0.0009	0.6476	3.94 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='272' LIMIT 1	0.0007	0.6483	3.96 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='774a734dd0d85b38a64fa15a53fbe663' LIMIT 1	0.0008	0.6491	4.00 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Network components'	0.0006	0.6497	3.96 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7a614fd06c325499f1680b9896beedeb' LIMIT 1	0.0007	0.6504	3.97 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24192' OR `id_baumer_items`='24193' OR `id_baumer_items`='24150' OR `id_baumer_items`='24152' OR `id_baumer_items`='24154' OR `id_baumer_items`='24155' OR `id_baumer_items`='24151' OR `id_baumer_items`='24153' OR `id_baumer_items`='24156' OR `id_baumer_items`='42503' OR `id_baumer_items`='24227' OR `id_baumer_items`='24231' ) AND `del`='0'	0.0009	0.6513	3.97 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='250' OR id='251' OR id='252' OR id='253' OR id='254' OR id='255' OR id='256' OR id='289' OR id='290' OR id='314' OR id='318' OR id='12833' ) ORDER BY priority DESC, name_cz ASC	0.0014	0.6527	4.01 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='270' LIMIT 1	0.0007	0.6534	4.02 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9f9a4bb47a414bb53a309997b79bae39' LIMIT 1	0.0008	0.6542	4.05 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3f1743c4e1d467721b7e4b64e9093344' LIMIT 1	0.0008	0.6550	4.08 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a0ee00d999ee3f78a4a5a2b17926d7fd' LIMIT 1	0.0007	0.6557	4.10 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3823611d104faabfc5e46eb562007271' LIMIT 1	0.0007	0.6564	4.12 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='f339ecd0a40841c7e3b39b9dd0053eec' LIMIT 1	0.0008	0.6572	4.15 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8a9c9047c2a17a446230c248632a6a84' LIMIT 1	0.0007	0.6579	4.17 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a8a55146d616096d595d5971870a1025' LIMIT 1	0.0007	0.6586	4.20 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a3378d98ba999219f5720136bdf269f3' LIMIT 1	0.0008	0.6594	4.22 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='d5d5b8cd71a155c8ad4da2f951f46cac' LIMIT 1	0.0008	0.6602	4.24 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='cc3a6a2466d9d03c8605e7c0538cdfc8' LIMIT 1	0.0008	0.6610	4.26 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8a8a7e34b1189c247a3d681e3c2170e3' LIMIT 1	0.0008	0.6618	4.28 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9ece75066cb935e16b5131b3204c2f46' LIMIT 1	0.0007	0.6625	4.31 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Cable'	0.0007	0.6632	4.25 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='39059724f73a9969845dfe4146c5660e' LIMIT 1	0.0006	0.6638	4.26 mb
SQL (std)\| SELECT `id`,`id_categories` FROM `mod_ajpcat_items` WHERE ( `id_baumer_items`='24133' OR `id_baumer_items`='24134' OR `id_baumer_items`='24136' OR `id_baumer_items`='24135' OR `id_baumer_items`='36851' ) AND `del`='0'	0.0009	0.6647	4.25 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id='4821' OR id='238' OR id='239' OR id='240' OR id='3729' ) ORDER BY priority DESC, name_cz ASC	0.0011	0.6658	4.29 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='267' LIMIT 1	0.0007	0.6665	4.30 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='02892f6296e56f260acea0987d397dfc' LIMIT 1	0.0008	0.6673	4.33 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='fa6d24fa0b4b993cb45016a2978148ec' LIMIT 1	0.0014	0.6687	4.36 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='21f9069c3a06f79992747792708ae74f' LIMIT 1	0.0008	0.6695	4.38 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3b9a6cf4d2b5a47bb0bcb512501b92aa' LIMIT 1	0.0008	0.6703	4.40 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ff391cbe7ac55d9990d64572d3eeadba' LIMIT 1	0.0007	0.6710	4.42 mb
SQL (std)\| SELECT * FROM `mod_ajpcat_baumer_translate` WHERE idl_transtype='51' AND name_en='Mountings and heat sinks'	0.0007	0.6717	4.38 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='eda80a3d5b344bc40f3bc04f65b7a357' LIMIT 1	0.0007	0.6724	4.39 mb
SQL (std)\| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id_categories='224' ) OR id='33' ORDER BY priority DESC, name_cz ASC LIMIT 0,50	0.0096	0.6820	4.48 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c013290e3638d246631403d415058d8f' LIMIT 1	0.0008	0.6828	4.52 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='83' LIMIT 1	0.0006	0.6834	4.52 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='1' LIMIT 1	0.0006	0.6840	4.52 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='7' LIMIT 1	0.0006	0.6846	4.52 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='30' LIMIT 1	0.0010	0.6856	4.52 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7a7a969535846e3fee415502d16f96d4' LIMIT 1	0.0008	0.6864	4.54 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e51268f5e4461666eb8baaab9abe64f1' LIMIT 1	0.0007	0.6871	4.56 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='71' LIMIT 1	0.0007	0.6878	4.58 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='21' LIMIT 1	0.0006	0.6884	4.58 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='11' LIMIT 1	0.0007	0.6891	4.58 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='120' LIMIT 1	0.0006	0.6897	4.58 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7a00c33b85c9fdc228637d45c32f1a87' LIMIT 1	0.0007	0.6904	4.60 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='63b901b7f6686078ed1bb878f0a6b710' LIMIT 1	0.0008	0.6912	4.62 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='68' LIMIT 1	0.0007	0.6919	4.63 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='2' LIMIT 1	0.0006	0.6925	4.63 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='8' LIMIT 1	0.0053	0.6978	4.63 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='31' LIMIT 1	0.0056	0.7034	4.63 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3577b51fda5bb42f23ba70effecd467c' LIMIT 1	0.0008	0.7042	4.65 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8f90a4238aba6d63ab5c1f4de7e5a903' LIMIT 1	0.0007	0.7049	4.67 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a1d6a1c40e4be03ed009655be33ff41c' LIMIT 1	0.0008	0.7057	4.69 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='146eea017b77e92694b35f7e6f6457ba' LIMIT 1	0.0007	0.7064	4.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='46' LIMIT 1	0.0036	0.7100	4.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='24' LIMIT 1	0.0045	0.7145	4.71 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='132' LIMIT 1	0.0032	0.7177	4.71 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='19fb073cdbdaeaa189e3e63c1dfa37cc' LIMIT 1	0.0017	0.7194	4.73 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='6ef137aeae2d7fea7a2dc074f338e00d' LIMIT 1	0.0016	0.7210	4.76 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='82' LIMIT 1	0.0042	0.7252	4.76 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='30' LIMIT 1	0.0007	0.7259	4.76 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='274' LIMIT 1	0.0013	0.7272	4.76 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='658871dcd3af9f12e0e2ee37c426ee66' LIMIT 1	0.0008	0.7280	4.78 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='10' LIMIT 1	0.0007	0.7287	4.78 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='528c60511144a113c9e08ba96737680d' LIMIT 1	0.0008	0.7295	4.80 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='59fc064209f82afd80eae87e783ea1a0' LIMIT 1	0.0007	0.7302	4.83 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='5a6741aa4bfaa0af06672b7d3707ed9d' LIMIT 1	0.0008	0.7310	4.86 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='84' LIMIT 1	0.0007	0.7317	4.88 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='3' LIMIT 1	0.0006	0.7323	4.88 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='41' LIMIT 1	0.0007	0.7330	4.88 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='e4865db8d8574692592791bbc495f9b4' LIMIT 1	0.0007	0.7337	4.90 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='43e7f5e86647e7e017fc04e9c139a1d1' LIMIT 1	0.0007	0.7344	4.92 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='94a18010fb7e573497c83d6fb1ebd04c' LIMIT 1	0.0007	0.7351	4.95 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='101' LIMIT 1	0.0006	0.7357	4.95 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='354' LIMIT 1	0.0006	0.7363	4.95 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='7487cf57a939d3b85f8cfea31c6751c4' LIMIT 1	0.0007	0.7370	4.97 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='72' LIMIT 1	0.0007	0.7377	4.97 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='121' LIMIT 1	0.0006	0.7383	4.97 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ab9717cbcaaafc9f0f8f932524c62a8c' LIMIT 1	0.0007	0.7390	4.99 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='cc67455e4bfb450048198e6103c44e4a' LIMIT 1	0.0007	0.7397	5.01 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='51b8d641bdbf4943769b5ca5b48568b9' LIMIT 1	0.0017	0.7414	5.03 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='679cea32228b816c65a801109610628b' LIMIT 1	0.0008	0.7422	5.05 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='40' LIMIT 1	0.0007	0.7429	5.05 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='7' LIMIT 1	0.0008	0.7437	5.05 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='39' LIMIT 1	0.0009	0.7446	5.06 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='9761866cca6fabd87fce1a606dceb3a8' LIMIT 1	0.0008	0.7454	5.08 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='2f6a699402903aa03a1791155d2d281c' LIMIT 1	0.0008	0.7462	5.10 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='836bd5bab3b0ec7fc3cf02b9277d46db' LIMIT 1	0.0007	0.7469	5.12 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='821a5462d46692a269249073ced08b92' LIMIT 1	0.0008	0.7477	5.14 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='49' LIMIT 1	0.0006	0.7483	5.14 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='25' LIMIT 1	0.0006	0.7489	5.14 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='60' LIMIT 1	0.0006	0.7495	5.15 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='40902b29e031e2d99ff025c3584e5eb8' LIMIT 1	0.0009	0.7504	5.17 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='50facf0e5356d09f89193afd7f5e34a0' LIMIT 1	0.0008	0.7512	5.19 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='62' LIMIT 1	0.0016	0.7528	5.19 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='4' LIMIT 1	0.0009	0.7537	5.19 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='3271080ff8842fc98592a2d5a470dceb' LIMIT 1	0.0009	0.7546	5.21 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8293e142382cd0d49872cba1385847ea' LIMIT 1	0.0007	0.7553	5.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='79' LIMIT 1	0.0007	0.7560	5.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='29' LIMIT 1	0.0007	0.7567	5.23 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='256' LIMIT 1	0.0006	0.7573	5.23 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='a26f59cefa2951902eb3325ff205daba' LIMIT 1	0.0007	0.7580	5.25 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='cfdbf2e63e3aadd50e699dc19b569d17' LIMIT 1	0.0007	0.7587	5.28 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='91558a8104964cfd2f8291dc09fb2b58' LIMIT 1	0.0008	0.7595	5.30 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='6e563b0a8634d91cba713fc6b3da6246' LIMIT 1	0.0007	0.7602	5.32 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='63' LIMIT 1	0.0006	0.7608	5.32 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='3' LIMIT 1	0.0006	0.7614	5.32 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='8d8c7b36a0011e47e9daaa07f7e931bd' LIMIT 1	0.0007	0.7621	5.34 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='312de3a47f0f8667ab7283622e825d7e' LIMIT 1	0.0008	0.7629	5.36 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='859db785dca798a0ab37ebc7c58161b6' LIMIT 1	0.0008	0.7637	5.39 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='65' LIMIT 1	0.0007	0.7644	5.39 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor_type` WHERE `id`='6' LIMIT 1	0.0006	0.7650	5.39 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='36' LIMIT 1	0.0006	0.7656	5.39 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='ce90803098fc7b226fd5aa0783dce0d6' LIMIT 1	0.0007	0.7663	5.42 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='4b98aaa706b4bd356b5eba2c44903b6f' LIMIT 1	0.0007	0.7670	5.44 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='4a19cb96934025730c1be70b4709b8f8' LIMIT 1	0.0008	0.7678	5.46 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='522270aee45200aa5b6d335f79083d8a' LIMIT 1	0.0007	0.7685	5.48 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='50' LIMIT 1	0.0007	0.7692	5.48 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_frame_rate` WHERE `id`='2' LIMIT 1	0.0006	0.7698	5.48 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='37' LIMIT 1	0.0007	0.7705	5.48 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c596ff0225c58a96ffd24cec38cc979d' LIMIT 1	0.0007	0.7712	5.50 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='67' LIMIT 1	0.0007	0.7719	5.50 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='c1269663443020197412093ac2133ec6' LIMIT 1	0.0007	0.7726	5.53 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='f4af5bf338ccf680a19e6373b1eec5e9' LIMIT 1	0.0007	0.7733	5.55 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='48e4c4532057d3fed009ebcd76f7f37b' LIMIT 1	0.0007	0.7740	5.57 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='66ba4601791f46392d00c4b36359e08c' LIMIT 1	0.0007	0.7747	5.59 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='78d9f2469d651243d09c4900bad16464' LIMIT 1	0.0007	0.7754	5.61 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_sensor` WHERE `id`='86' LIMIT 1	0.0007	0.7761	5.61 mb
SQL (std)\| SELECT `id`,`name_cz` FROM `mod_ajpcat_list_b_resolution` WHERE `id`='38' LIMIT 1	0.0007	0.7768	5.61 mb
SQL (std)\| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='13b929a27380eb04c462971ba5d8177a' LIMIT 1	0.0007	0.7775	5.63 mb
CACHE FILE \| SET \| mod_ajpcat_show_item (;ID_ITEMS\|33;33\|;ID_CATEGORIES\|224;224\|;LANG\|cz;cz\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|;\|USEC-LOGGED;\|) ()	0.0652	0.8427	7.63 mb
CACHE FILE \| GET \| mod_cform_web_show ()	0.0005	0.8432	4.62 mb
CACHE FILE \| READ \| mod_cform_web_show \| Unserialized	0.0014	0.8446	4.68 mb
TIMING \| Text - End generate	0.0010	0.8456	4.66 mb
CACHE FILE \| GET \| mod_ajpcat_show_footer_logos (all)	0.0014	0.8470	4.56 mb
CACHE FILE \| READ \| mod_ajpcat_show_footer_logos \| Unserialized	0.0010	0.8480	4.58 mb
TIMING \| Submenu menu (ID_PARENT: 2) - Start generate	0.0001	0.8481	4.57 mb
CACHE FILE \| GET \| sys_menu (ID_PARENT;2\|IDSW_LANGUAGES;1\|SET_MENU_ID;submenu\|SET_MENU_CLASS;submenu\|SCHEMA_PARENTNAME;2\|LEVEL;0\|)	0.0000	0.8481	4.57 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0010	0.8491	4.59 mb
TIMING \| Submenu menu (ID_PARENT: 2) - End generate	0.0001	0.8492	4.57 mb
TIMING \| Submenu menu (ID_PARENT: 3) - Start generate	0.0000	0.8492	4.57 mb
CACHE FILE \| GET \| sys_menu (ID_PARENT;3\|IDSW_LANGUAGES;1\|SET_MENU_ID;submenu\|SET_MENU_CLASS;submenu\|SCHEMA_PARENTNAME;3\|LEVEL;0\|)	0.0000	0.8492	4.58 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0010	0.8502	4.58 mb
TIMING \| Submenu menu (ID_PARENT: 3) - End generate	0.0001	0.8503	4.57 mb
TIMING \| Submenu menu (ID_PARENT: 7) - Start generate	0.0000	0.8503	4.57 mb
CACHE FILE \| GET \| sys_menu (ID_PARENT;7\|IDSW_LANGUAGES;1\|SET_MENU_ID;submenu\|SET_MENU_CLASS;submenu\|SCHEMA_PARENTNAME;7\|LEVEL;0\|)	0.0000	0.8503	4.58 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0010	0.8513	4.60 mb
TIMING \| Submenu menu (ID_PARENT: 7) - End generate	0.0001	0.8514	4.59 mb
CACHE FILE \| GET \| mod_cform_web_show ()	0.0001	0.8515	4.59 mb
CACHE FILE \| READ \| mod_cform_web_show \| Unserialized	0.0009	0.8524	4.59 mb
SQL (std)\| SELECT * FROM `mod_cform` WHERE `id`='1' LIMIT 1	0.0007	0.8531	4.60 mb
TIMING \| Footer menu - Start generate	0.0000	0.8531	4.59 mb
CACHE FILE \| GET \| sys_menu (FOOTER_MENU;1-footer_menu\|)	0.0001	0.8532	4.59 mb
CACHE FILE \| READ \| sys_menu \| Unserialized	0.0010	0.8542	4.60 mb
CACHE FILE \| GET \| mod_cform_web_show ()	0.0001	0.8543	4.60 mb
CACHE FILE \| READ \| mod_cform_web_show \| Unserialized	0.0009	0.8552	4.63 mb
FLUSH \| size:	0.0007	0.8559	4.62 mb
SQL (std)\| Disconnected link	0.0016	0.8575	4.60 mb

VCXG-25M

Poradím vám

Parametry

Informace o snímači

Kvalita dat (EMVA 1288)

Formáty obrazu

Předzpracování obrazu

Funkce kamery

Rozhraní a připojení

Mechanické parametry

Elektrické parametry

Nevolatilní paměť

Podmínky prostředí

Digitální vstupy|výstupy

Prohlášení o shodě

Nákresy

Rozměrový výkres

Ke stažení

Datový list

Rychlý start

Manuál

Certifikáty/ osvědčení

Další informace

CAD

Příslušenství

Napájení

Starter Kit

PCIe/Adapter

Příslušenství k pouzdru

Příslušenství k objektivu

Objektiv

Síťové prvky

Kabel

Držáky a chladiče

Podpora

Zájem či dotaz na produkt

Podobné produkty

Napište nám
