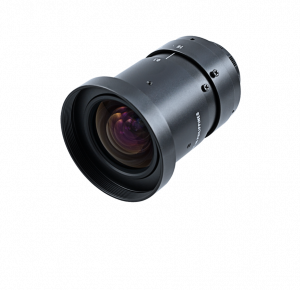

ZVL-FL-CC0614A-2M

Ricoh Imaging lens
6 mm
F 1,4-16
format 1/2"
M.O.D. 0,1 m
locating screw for aperture and focus
C-mount

Objednací číslo: 11150221
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Ricoh Imaging

Mechanické parametry

Závit objektivu:	C-mount
Rozměry:	48 mm × 59,9 mm
Max. vnější průměr:	48 mm (without knurled screws) 50 mm (with knurled screws)
Max. délka (bez závitu):	59.9 mm
Hmotnost:	≤ 149 g

Parametry optiky

Rozlišení objektivu:	2 MP
Ohnisková vzdálenost:	6 mm
Formát (max. velikost snímače):	2/3″
Clona:	F1,4-16
Typ clony:	Manual
Minimální pracovní vzdálenost:	0.1 m
