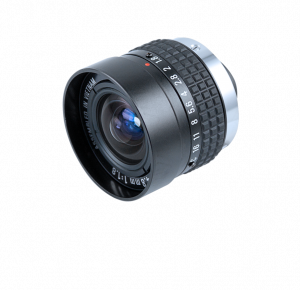

ZVL-FL-CC0418DX-VG

Ricoh Imaging lens
4,8 mm
F 1,8-C
format 2/3"
M.O.D. 0,3 m
locating screw for aperture
C-mount

Objednací číslo: 11013890
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Základní parametry

Výrobce:

Ricoh Imaging

Mechanické parametry

Závit objektivu:	C-mount
Rozměry:	40,5 mm × 35,5 mm
Max. vnější průměr:	40.5 mm (without knurled screws) 50.5 mm (with knurled screws)
Max. délka (bez závitu):	35.5 mm
Hmotnost:	≤ 105 g

Parametry optiky

Rozlišení objektivu:	0.3 MP
Ohnisková vzdálenost:	4.8 mm
Formát (max. velikost snímače):	2/3″
Clona:	F1,8-C
Typ clony:	fix
Minimální pracovní vzdálenost:	0.3 m
Horizontální obrazový úhel:	96.4 °
Vertikální obrazový úhel:	74.5 °
Diagonální obrazový úhel:	115.9 °
Ve formátu obrazu:	8,8 × 6,6 mm

Podmínky prostředí

Pracovní teplota:

-20 - +50 °C
