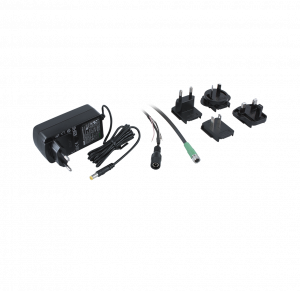

Power Supply Kit VisiLine int.

univerzální napájecí zdroj 12V/2,0A mezinárodní s adaptéry pro EU, USA, UK, AU, KR
napájecí kabel a kabel procesního rozhraní pro kamery VisiLine, délka 5,0 m.

Objednací číslo: 11113400
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Vstup:	adapter: EU, US, UK, AU, KR (changeable)
Vstupní napětí:	90 VAC .. 264 VAC
Frekvence sítě:	47 Hz .. 63 Hz
Výstup:	DC Plug 5,5 x 2,1 mm
Pracovní napětí:	12 VDC
Proud:	2 A
tolerance:	5 %
Zvlnění:	120 mV p-p
Třída účinnosti:	Level V
max. výkon:	24 W

Mechanické parametry

Rozměry:	93,5 mm × 46,0 mm × 36,2 mm
Délka kabelu [m]:	1.8 m
Hmotnost:	≤ 170 g
Materiál:	plastic

Podmínky prostředí

Pracovní teplota:	0 - +40 °C
Skladovací teplota:	-20 - +85 °C
Vlhkost:	8 - 90 % (non-condensing)
