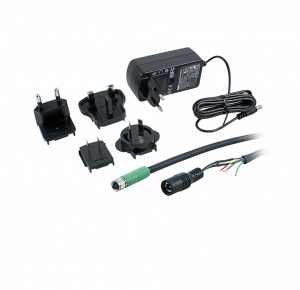

Z-Power Supply Kit LX PX VCXG int.

universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR
power supply and process interface adapter cable for LX, PX and VCXG cameras, length 5,0 m

Objednací číslo: 11122415
Výrobce: Baumer Electric AG

Dostupnost: 1 ks (zobrazit skladovou dostupnost)

Můžete mít ihned. Možnost osobního odběru v pracovní dny od 8:00 do 16:00 na adrese firmy po předchozí telefonické dohodě.

Zboží odesíláme okamžitě. Zboží, které závazně objednáte v pracovních dnech do 11:00 hodin, vám odešleme ještě tentýž den.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Skladová dostupnost

Podobné produkty

Parametry

Elektrické parametry

Vstup:	adapter: EU, US, UK, AU, KR (changeable)
Vstupní napětí:	90 VAC .. 264 VAC
Frekvence sítě:	47 Hz .. 63 Hz
Výstup:	DC Plug 5,5 x 2,1 mm
Pracovní napětí:	12 VDC
Proud:	2 A
tolerance:	5 %
Zvlnění:	120 mV p-p
Třída účinnosti:	Level VI
max. výkon:	24 W

Mechanické parametry

Rozměry:	93,5 mm × 46,0 mm × 36,2 mm
Délka kabelu [m]:	1.8 m
Hmotnost:	≤ 170 g
Materiál:	plastic

Podmínky prostředí

Pracovní teplota:	0 - +40 °C
Skladovací teplota:	-20 - +85 °C
Vlhkost:	8 - 90 % (non-condensing)

Název produktu	Počet na skladě
Z-Power Supply Kit LXPX VCXG int.	1 ks

Foto	Produkt (7) / Popis	Skladová dostupnost
	Power Supply 12V/2,0A international universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR for TXG and HXC	na dotaz
	Power Supply 24V/1,0A international universal power supply 24V/1,0A international with adapters for EU, US, UK, AU, KR	na dotaz
	Power Supply 24V/1.0A Int. DC Connector power supply 24V/1,0A with adapters for EU, US, UK AU, KR in combination with "Cable power adapter M12/DC connector" (11048083) suitable for VCXG.I(.XT), VLXT, VAX and VeriSens	2 ks
	Power Supply DIN Rail 24V/60W industrial DIN rail power supply 24V/60W for TX, VisiLine, VisiLine IP, MXG, SX and HX cameras (except HXC13)	na dotaz
	Power Supply Kit VisiLine int. univerzální napájecí zdroj 12V/2,0A mezinárodní s adaptéry pro EU, USA, UK, AU, KR napájecí kabel a kabel procesního rozhraní pro kamery VisiLine, délka 5,0 m.	na dotaz
	Z-Power Supply Kit LX PX VCXG int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for LX, PX and VCXG cameras, length 5,0 m	1 ks
	Z-Power Supply Kit QX VisiLine IP int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for QX and VisiLine IP cameras, length 2,0 m	na dotaz
