ajptech.cz > Produkty > Průmyslové kamery > Instalační doplňky > Příslušenství > Napájecí zdroje > Power Supply DIN Rail 24V/60W

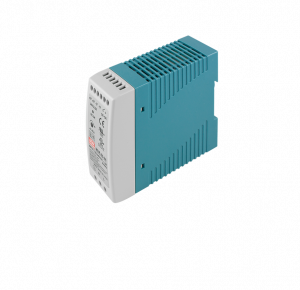

Power Supply DIN Rail 24V/60W

industrial DIN rail power supply 24V/60W
for TX, VisiLine, VisiLine IP, MXG, SX and HX cameras (except HXC13)

Objednací číslo: 11088833
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jakub Sedlmajer

Produktový specialista pro průmyslové čtečky a kamerové systémy
BAUMER | IOSS

+420 739 087 013

jakub.sedlmajer@ajptech.cz

Parametry

Ke stažení

Podpora

Podobné produkty

Parametry

Elektrické parametry

Vstup:	screw clamp
Vstupní napětí:	85 VAC .. 264 VAC
Frekvence sítě:	47 Hz .. 63 Hz
Výstup:	screw clamp (2 outputs)
Pracovní napětí:	24 VDC
Proud:	2.5 A
Zvlnění:	150 mV p-p
Třída účinnosti:	Level V
max. výkon:	60 W

Mechanické parametry

Rozměry:	40,0 mm × 90,0 mm × 100,0 mm
Hmotnost:	≤ 330 g
Materiál:	plastic

Podmínky prostředí

Pracovní teplota:	0 - +40 °C
Skladovací teplota:	-20 - +85 °C
Vlhkost:	8 - 90 % (non-condensing)

Foto	Produkt (7) / Popis	Skladová dostupnost
	Power Supply 12V/2,0A international universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR for TXG and HXC	na dotaz
	Power Supply 24V/1,0A international universal power supply 24V/1,0A international with adapters for EU, US, UK, AU, KR	na dotaz
	Power Supply 24V/1.0A Int. DC Connector power supply 24V/1,0A with adapters for EU, US, UK AU, KR in combination with "Cable power adapter M12/DC connector" (11048083) suitable for VCXG.I(.XT), VLXT, VAX and VeriSens	2 ks
	Power Supply DIN Rail 24V/60W industrial DIN rail power supply 24V/60W for TX, VisiLine, VisiLine IP, MXG, SX and HX cameras (except HXC13)	na dotaz
	Power Supply Kit VisiLine int. univerzální napájecí zdroj 12V/2,0A mezinárodní s adaptéry pro EU, USA, UK, AU, KR napájecí kabel a kabel procesního rozhraní pro kamery VisiLine, délka 5,0 m.	na dotaz
	Z-Power Supply Kit LX PX VCXG int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for LX, PX and VCXG cameras, length 5,0 m	1 ks
	Z-Power Supply Kit QX VisiLine IP int. universal power supply 12V/2,0A international with adapters for EU, US, UK, AU, KR power supply and process interface adapter cable for QX and VisiLine IP cameras, length 2,0 m	na dotaz
