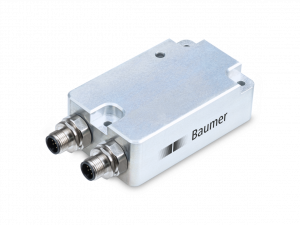

GAM900S

Acceleration sensor for safety applications
Safety limit monitoring with relay output for SIL 2/PL d
Output of acceleration via analog / CANopen®
Redundant 3 axes detection, MEMS based
Measuring range ±2 g
Connection: connector M12
Offshore capability

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Bezpečnostní charakteristiky

Úroveň výkonu (ISO 13849):	PL d
Kategorie (ISO 13849):	3
MTTF_d (ISO 13849):	393 years
DC_avg (ISO 13849):	86 %
Životnost, ISO 13849:	20 years
Úroveň integrity bezpečnosti (IEC 61508/EN 62061):	SIL 2 / SIL CL2
PFH_D (IEC 61508/EN 62061):	2.5 E-9 1/h
PFD_avg (IEC 61508):	2.1 E-4
Reakční doba:	< 50 ms

Elektrické vlastnosti

Napájecí napětí:	10...30 VDC
Ochrana proti přepólování:	Yes
Spotřeba:	≤200 mA (24 VDC)
Čas inicializace:	≤ 2000 ms after power on
Rozhraní:	CANopen® Analog 4...20 mA (0...10 V optional)
Frekvenční pásma:	4 (configurable)
Měřící rozsah:	±2 g
Rozlišení:	< 4 mg
Přesnost 3σ (s filtrováním pásma):	= 60 mg (in the range of ±1000 mg) = 15 mg (in the range of ±250 mg) (with band pass filtering, up to -1dB)
Odolnost proti rušení dle:	DIN EN 61000-6-2 DIN EN 61326-3-1
Vyzařované rušení dle:	EN 61000-6-4
Indikátor stavu:	DUO-LED integrated in housing
Schválení:	UL approval / E63076 PLd according to EN ISO 13849-1:2008+AC:2009 SIL CL2 according to EN 62061:2005 +AC:2010 +A1:2013 SIL2 according to IEC 61508-1..7:2010 Certified by TÜV Rheinland

Mechanické provedení

Rozměry (Š x V x D):	55 x 30 x 90 mm
Ochrana EN 60529:	IP 55
Materiál:	Aluminium
Pracovní teplota:	-40...+75 °C
Odolnost:	DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz DIN EN 60068-2-27 Shock 100 g, 6 ms
Přibližná hmotnost:	250 g
Připojení:	Connector M12

Příslušenství

Obsahuje:Kabely s volným koncem Kabely

Kabely s volným koncem

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (37) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A12-11230358 M12, female, A-coded, 12-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	1 ks
CAM12.A12-11230359 M12, female, A-coded, 12-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	4 ks
CAM12.A12-11230360 M12, female, A-coded, 12-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A12-11230412 M12, female, A-coded, 12-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A12-11230413 M12, female, A-coded, 12-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A12-11230414 M12, female, A-coded, 12-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A12-11232650 M12,Female,A-coded,12-poles; PVC,100 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	1 m	na dotaz
CAM12.A12-11232651 M12,Female,A-coded,12-poles; PVC,150 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	1,5 m	na dotaz
CAM12.A12-11232652 M12,Female,A-coded,12-poles; PVC,200 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	2 m	na dotaz
CAM12.A12-11232653 M12,Female,A-coded,12-poles; PVC,300 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	3 m	na dotaz
CAM12.A12-11232654 M12,Female,A-coded,12-poles; PVC,500 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	5 m	na dotaz
CAM12.A12-11232655 M12,Female,A-coded,12-poles; PVC,1000 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	10 m	na dotaz
CAM12.A12-11232656 M12,Female,A-coded,12-poles; PVC,1500 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	15 m	na dotaz
CAM12.A12-11232657 M12,Female,A-coded,12-poles; PVC,2000 cm,free cable end For static applications Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames	20 m	na dotaz
CAM12.A12-11232659 M12, female, A-coded; 12-poles; PVC, 100 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	1 m	na dotaz
CAM12.A12-11232660 M12, female, A-coded; 12-poles; PVC, 150 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	1,5 m	na dotaz
CAM12.A12-11232661 M12, female, A-coded; 12-poles; PVC, 200 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	2 m	na dotaz
CAM12.A12-11232662 M12, female, A-coded; 12-poles; PVC, 300 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	3 m	na dotaz
CAM12.A12-11232663 M12, female, A-coded; 12-poles; PVC, 500 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	5 m	na dotaz
CAM12.A12-11232664 M12, female, A-coded; 12-poles; PVC, 1000 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	10 m	na dotaz
CAM12.A12-11232665 M12, female, A-coded; 12-poles; PVC, 1500 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	15 m	na dotaz
CAM12.A12-11232666 M12, female, A-coded; 12-poles; PVC, 2000 cm, free cable end Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals	20 m	na dotaz
CAM12.A12-11232668 M12,Female,A-coded,12-poles; PUR,100 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A12-11232669 M12,Female,A-coded,12-poles; PUR,200 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A12-11232670 M12,Female,A-coded,12-poles; PUR,300 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A12-11232671 M12,Female,A-coded,12-poles; PUR,500 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A12-11232672 M12,Female,A-coded,12-poles; PUR,1000 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz
CAM12.A12-11232673 M12,Female,A-coded,12-poles; PUR,1500 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A12-11232674 M12,Female,A-coded,12-poles; PUR,2000 cm,free cable end Dragchain capable; suitable for robotics ± 180 °/m Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A12-11233232 M12, female, A-coded, 12-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A12-11233233 M12, female, A-coded, 12-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A12-11233234 M12, female, A-coded, 12-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A12-11233235 M12, female, A-coded, 12-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz
CAM12.A12-11233237 M12, female, A-coded, 12-poles; PUR, 100 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	1 m	na dotaz
CAM12.A12-11233238 M12, female, A-coded, 12-poles; PUR, 300 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	3 m	na dotaz
CAM12.A12-11233239 M12, female, A-coded, 12-poles; PUR, 1500 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	15 m	na dotaz
CAM12.A12-11233240 M12, female, A-coded, 12-poles; PUR, 2000 cm, shielded, free cable end Dragchain capable Head A: IP67 Cable: good resistance against chemicals, flames, oils Halogen free	20 m	na dotaz

Kabely

Další podobné produkty naleznete v kategorii: Kabely a konektory

Foto	Produkt (1) / Popis	Délka kabelu	Skladová dostupnost
	CAM12.A12-11702145 M12, female, A-coded, 12-poles; PVC, 150 cm; M12, male, A-coded, 5-poles Head A: IP65, IP66K, IP67; Head B: IP67 Cable: Good resistance against chemicals	1,5 m	na dotaz
