CAM12.A12-11233240

M12, samice, A-kódování, 12-pólů; PUR, 2000 cm, stíněný, volný konec
Vhodný pro dragchain
Hlava A: IP67
Kabel: odolný vůči chemikáliím, plamenům, olejům
Bez halogenů

Objednací číslo: 11233240
Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ing. Jaroslav Dančák

Technik specialista pro průmyslové snímače
BAUMER

+420 733 533 400

jaroslav.dancak@ajptech.cz

Parametry

Nákresy

Ke stažení

Podpora

Podobné produkty

Parametry

Strana A

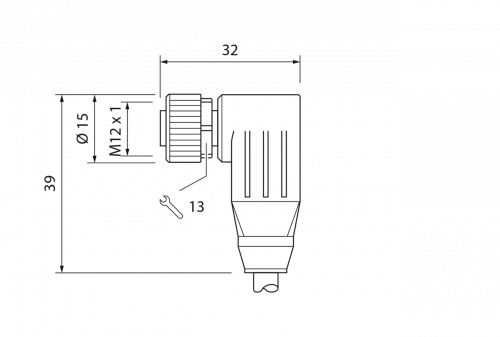

Hlava A: Připojení:	M12
Hlava A: Úhlový vývod:	90°
Hlava A: Pohlaví:	Female
Hlava A: Kódování:	A

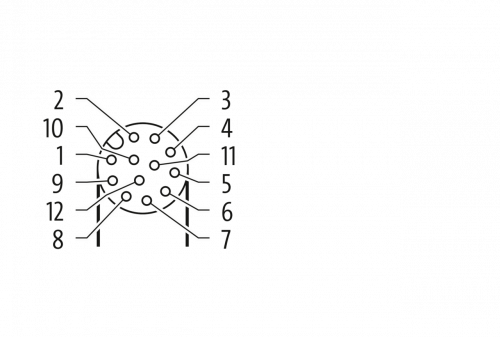

Hlava A: Počet pólů:	12
Hlava A: LED:	No
Hlava A: Šířka:	AF13
Hlava A: Utahovací moment:	0.6 Nm
Hlava A: Vroubkovaná matice:	Zinc-pressure die casting, surface Ni
Hlava A: Barva:	Black
Hlava A: Materiál těsnění:	FKM
Označovací strana A:	Yes

Strana B

Hlava B: Připojení:	Open-ended wires
Označovací strana B:	Yes

Kabely

Délka kabelu:	2000 cm
Tolerance délky:	± 30 cm

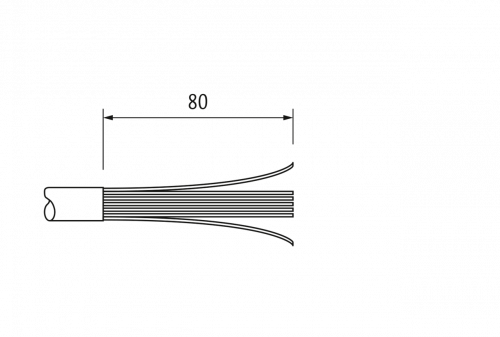

Délka odizolování:	80 mm
Stíněný:	Yes
Struktura vodičů:	18 × 0.1 mm
AWG:	26
Vnější plášť: Materiál:	PUR
Vnější plášť: Barva:	Black
Průměr kabelu:	6.5 mm ± 5%
Průřez vodičů:	0.14 mm²

Kabel

Kabel: Rozsah teplot:	- 25 ...+ 80 °C
Kabel: teplotní rozsah:	- 40 ...+ 80 °C
Stíněný:	Yes
Stínění: Pokrytí:	approx. 80 %
Stínicí útlum:	80
Ohýbací rádius (pevná instalace):	32.5 mm

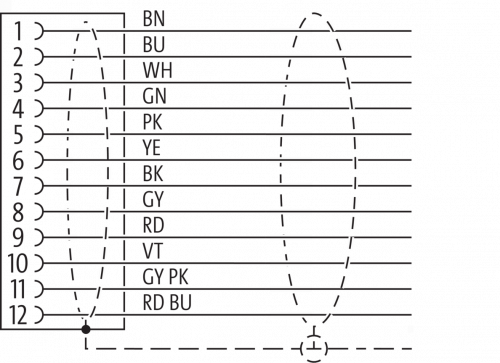

Počet vodičů:	12
Počet a průměr vodičů:	12x0.14
Tolerance délky:	± 30 cm
Délka kabelu:	2000 cm
Akcelerace:	max. 5 m/s²
AWG:	26
Ohýbací rádius (pevná instalace):	min. 5 × outer diameter
Torzní rychlost:	max. 35 cycles/min
Ohýbací rádius (pohyblivá instalace):	min. 10 × outer diameter
Typ kabelu:	3
Hmotnost kabelu:	approx. 67.1 g/m
Struktura vodičů:	18 × 0.1 mm
Průměr kabelu:	6.5 mm ± 5%
Vodič: Materiál:	Copper, bare
Vnější plášť: Materiál:	PUR
Izolace: Materiál:	PP
Stínění: Materiál:	Copper, tinned
Počet ohybových cyklů (C drážka:	approx. 5000000 Cycles
Jmenovité napětí:	300 V
Počet torzních cyklů:	approx. 2000000 Cycles
Paired stranding:	No
Průměr jednoho vodiče:	0.1 mm
Kabel: Zkušební napětí:	2 kV AC core-core ; 2 kV AC core-shield
Torzní napětí v °:	± 30 °/m
Total stranding:	3 wires strand, above that 9 wires strand
Rychlost (C-drážka):	max. 3.3 m/s
Dráha projíždění (horizontálně):	max. 5 m
Průřez vodičů:	0.14 mm²
Zpracování vodičů:	No
Průměr vodiče včetně izolace:	1 mm ± 5%
Vnější plášť: Barva:	Black

Elektrické parametry

Pracovní napětí:	max. 30 V AC/DC
Jmenovité napětí:	300 V
Odpor kontaktů:	max. 30 mOhm
Provozní proud na kontakt:	max. 1.5 A

Mechanické parametry

Hlava A: Stupeň ochrany:	IP65, IP66K, IP67
Ohýbací rádius (pohyblivá instalace):	min. 10 × outer diameter
Ohýbací rádius (pevná instalace):	min. 5 × outer diameter
Počet ohybových cyklů (C drážka:	approx. 5000000 Cycles
Torzní rychlost:	max. 35 cycles/min
Torzní napětí v °:	± 30 °/m
Počet torzních cyklů:	approx. 2000000 Cycles
Akcelerace:	max. 5 m/s²
Rychlost (C-drážka):	max. 3.3 m/s

Podmínky prostředí

Rozsah teplot:	- 25 ...+ 80 °C
Rozsah teplot (fixní instalace):	- 25 ...+ 80 °C
Kabel: teplotní rozsah:	- 40 ...+ 80 °C
Možná pohyblivá instalace:	Yes
Hlava A: Chemická odolnost:	No
Hlava A: Ohňuvzdornost:	HB (UL 94)
Hlava A: Odolnost vůči olejům:	ASTM 1 oil, mineral oils, limited to hydraulic oils
Hlava A: odolnost vůči kyselinám:	No
Hlava A: Stupeň znečištění:	3
Kabel: Chemická odolnost:	Good (DIN EN 60811-404)
Kabel: ohňuvzdorný:	Conform UL 1581 §1090 (H), CSA FT2, IEC 60332-2-2
Kabel: odolnost vůči olejům:	Good (DIN EN 60811-404)
Kabel: bez silikonu:	Yes

Komerční data

Eclass:

27060311
