![]() | DSRT 22DA - For cyclical and static measurements, without amplifier
- Output signal mV/V
- S/G full bridge
- High repeatability
- High sensitivity
| Na dotaz
|
![]() | DSRT 22DD - For cyclical and static measurements, with integrated amplifier
- Voltage output ±10 VDC
- Excellent signal to noise ratio
- High sensitivity
| Na dotaz
|
![]() | DSRT 22DJ - For cyclical and static measurements, with integrated amplifier
- CANopen
- Excellent signal to noise ratio
- High sensitivity
| Na dotaz
|
![]() | DST53-Z100I- Measuring range 0 ... 100 µm/m
- 1:1 replacement for former DSRT 22DB-S5-0100/T - Art.: 10161437
- Cost-effective force measurement of large forces
- Minimal influence on the machine structure due to low stiffness
- Integrated amplifier electronics, output signal 4…20 mA
- Bore hole distance 53 mm
- M12 connector, 5 pin
| Na dotaz
|
![]() | DST53-Z100U- Measuring range ± 100 µm/m
- 1:1 replacement for former DSRT 22DD-S5-0100 - Art.: 10155311
- Cost-effective force measurement of large forces
- Minimal influence on the machine structure due to low stiffness
- Integrated amplifier electronics, output signal ± 10 VDC
- Bore hole distance 53 mm
- M12 connector, 5 pin
| Na dotaz
|
![]() | DST53-Z250I- Measuring range 0 ... 250 µm/m
- 1:1 replacement for former DSRT 22DB-S5-0250/T - Art.: 10161828
- Cost-effective force measurement of large forces
- Minimal influence on the machine structure due to low stiffness
- Integrated amplifier electronics, output signal 4…20 mA
- Bore hole distance 53 mm
- M12 connector, 5 pin
| Na dotaz
|
![]() | DST53-Z250U- Measuring range ± 250 µm/m
- 1:1 replacement for former DSRT 22DD-S5-0250 - Art.: 110154118
- Cost-effective force measurement of large forces
- Minimal influence on the machine structure due to low stiffness
- Integrated amplifier electronics, output signal ± 10 VDC
- Bore hole distance 53 mm
- M12 connector, 5 pin
| Na dotaz
|
![]() | DST53-Z350I- Measuring range 0 ... 350 µm/m
- 1:1 replacement for former DSRT 22DB-S5-0350/T - Art.: 11000236
- Cost-effective force measurement of large forces
- Minimal influence on the machine structure due to low stiffness
- Integrated amplifier electronics, output signal 4…20 mA
- Bore hole distance 53 mm
- M12 connector, 5 pin
| Na dotaz
|
![]() | DST53-Z350U- Measuring range ± 350 µm/m
- 1:1 replacement for former DSRT 22DD-S5-0350 - Art.: 10152732
- Cenově efektivní měření velkých sil
- Minimální vliv na konstrukci stroje díky nízké tuhosti
- Integrated amplifier electronics, output signal ± 10 VDC
- Vzdálenost otvorů 53 mm
- M12 konektor, 5 pinový
| Na dotaz
|
![]() | DST53-Z500U- Měřicí rozsah ± 500 µm/m
- 1:1 replacement for former DSRT 22DD-S5-0500 - Art.: 10154297
- Cenově efektivní měření velkých sil
- Minimální vliv na konstrukci stroje díky nízké tuhosti
- Integrated amplifier electronics, output signal ± 10 VDC
- Vzdálenost otvorů 53 mm
- M12 konektor, 5 pinový
| Na dotaz
|
![]() | DST53-Z750U- Measuring range ± 750 µm/m
- 1:1 replacement for former DSRT 22DD-S5-0750 - Art.: 10155312
- Cenově efektivní měření velkých sil
- Minimální vliv na konstrukci stroje díky nízké tuhosti
- Integrated amplifier electronics, output signal ± 10 VDC
- Vzdálenost otvorů 53 mm
- M12 konektor, 5 pinový
| Na dotaz
|
![]() | DST55R-28.100.TC1.A5- Measuring range ±100 µm/m
- Highest protection class IP 68/69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal CANopen
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.100.TI1.A5- Measuring range ±100 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal 4…20 mA
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.100.TU1.A5- Measuring range ±100 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal ± 10 VDC
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.102.TC1.A5- Measuring range ±1000 µm/m
- Highest protection class IP 68/69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal CANopen
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.102.TI1.A5- Measuring range ±1000 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal 4…20 mA
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.102.TU1.A5- Measuring range ±1000 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal ± 10 VDC
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.202.TC1.A5- Measuring range ±2000 µm/m
- Highest protection class IP 68/69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal CANopen
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.202.TI1.A5- Measuring range ±2000 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal 4…20 mA
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.202.TU1.A5- Measuring range ±2000 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal ± 10 VDC
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.250.TC1.A5- Measuring range ±250 µm/m
- Highest protection class IP 68/69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal CANopen
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.250.TI1.A5- Measuring range ±250 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal 4…20 mA
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.250.TU1.A5- Measuring range ±250 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal ± 10 VDC
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.500.TC1.A5- Measuring range ±500 µm/m
- Highest protection class IP 68/69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal CANopen
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.500.TI1.A5- Measuring range ±500 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal 4…20 mA
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST55R-28.500.TU1.A5- Measuring range ±500 µm/m
- Highest protection rating IP 69K
- Tested long term seal according to proTect+
- Corrosion protection C5-M
- Output signal ± 10 VDC
- Integrated amplifier electronics
| Na dotaz
|
![]() | DST76-B500I- Measuring range ± 500 µm/m
- IO-Link interface for individual, application specific parameterisation
- Integrated amplifier electronics
- Output signal 4…20 mA, IO-Link, 2 x I/O
- Bore hole distance 76 mm
- Cable outlet
| Na dotaz
|

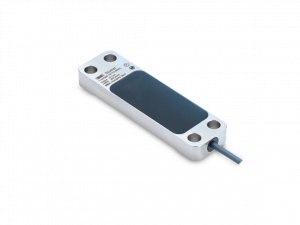

![]() | DST76-B500L- Measuring range ± 500 µm/m
- IO-Link interface for individual, application specific parameterisation
- Integrated amplifier electronics
- Output signal IO-Link with 2 x I/O
- Bore hole distance 76 mm
- Cable outlet
| Okamžitě dostupné
|
![]() | DST76-B500P- Measuring range ± 500 µm/m
- Cost-effective force measurement of large forces
- Output signal mV/V
- Bore hole distance 76 mm
- Cable outlet
| Na dotaz
|
![]() | DST76-B500U- Measuring range ± 500 µm/m
- IO-Link interface for individual, application specific parameterisation
- Integrated amplifier electronics
- Output signal ± 10 VDC, IO-Link, 2 x I/O
- Bore hole distance 76 mm
- Cable outlet
| Na dotaz
|
