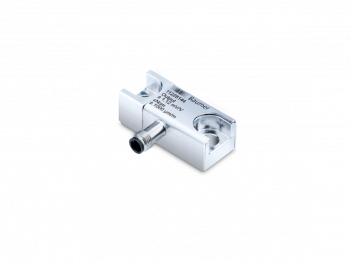

DST20-A102P

Name: AJP-tech spol. s.r.o.
Address: Hudcova 533/78c, Medlánky, Brno, 61200, CZ
Telephone: +420 544 525 210
Price range: $$

Measuring range ± 1000 µm/m
Small dimensions 28x12x10 mm
Sensor made of stainless steel, protection class IP65
For static and dynamic measurements
Output signal 1.0 mV/V
Connector M5, 4 pin, male

Výrobce: Baumer Electric AG

Dostupnost: na dotaz

Chcete znát dostupnost zboží? Vložte produkt do poptávky a my se vám ozveme.
Potřebujete poradit s výběrem nebo najít alternativu? Kontaktujte produktového specialistu.

+Přidat do nezávazné poptávky

Poradím vám

Ondřej Štěpánek

Produktový manažer
BAUMER

+420 733 101 651

ondrej.stepanek@ajptech.cz

Parametry

Nákresy

Ke stažení

Příslušenství

Podpora

Podobné produkty

Parametry

Základní parametry

Jmenovité napětí:	0 ... 1000 μm/m
Linearita:	< 0.5 %
Opakovatelnost:	< 0.1 %
Mechanické upevnění:	2 x M4 screws
Rozměry:	12 mm x 10 mm x 28 mm

Mechanické parametry

Únavová síla:	>10 Mio cycles at 0...100% FS
Tuhost snímače:	130 N @ 1000 μm/m
Hmotnost:	13 g
Materiál těla snímače:	Stainless steel, 1.4542
Materiál pouzdra:	Stainless steel, 1.4301
Kompenzace pro koeficient tepelné roztažnosti:	10.9 * 10^-6 1/K
Napájení:	M5, 4 pin, male

Podmínky prostředí

Rozsah provozní teploty:	-40 ... 85 °C
Skladovací teplota:	-40 ... 85 °C
Stupeň krytí EN 60529, ISO20653:	IP 65
Vibrace IEC 60068-2-6:	10 - 57 Hz: 1.5 mm p-p, 58 ... 2000 Hz: 10 g
IEC 60068-2-64:	20 ... 1000 Hz: 0.1 g²/Hz
IEC 60068-2-27:	50 g / 11 ms, 100 g / 6 ms

Elektrické parametry

Výstupní signál:	mV/V
Kladná polarita signálu:	Tension
Jmenovitá citlivost:	1.0 mV/V
Odpor můstku:	350 Ω
Napájecí napětí:	0.5 VDC ... 7 VDC

Schválení

UL Certifikace:

E217824

Nákresy

Výkresy

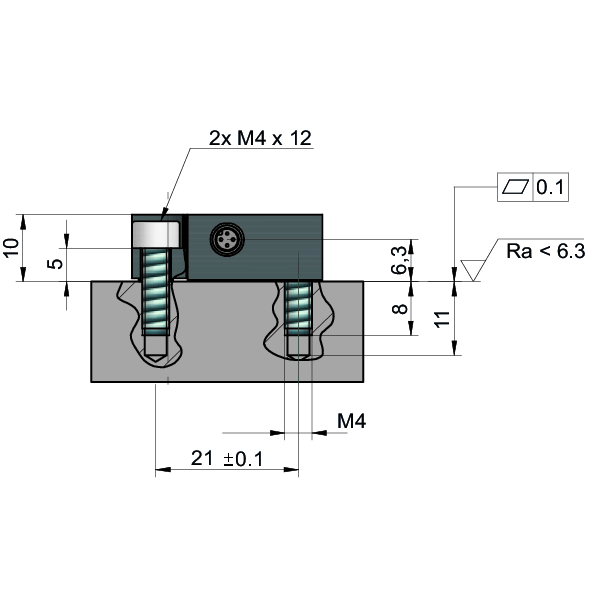

DST20 Masszeichnung angeschraubt.png | stáhnout (png, 2025-07-12 03:36:01)

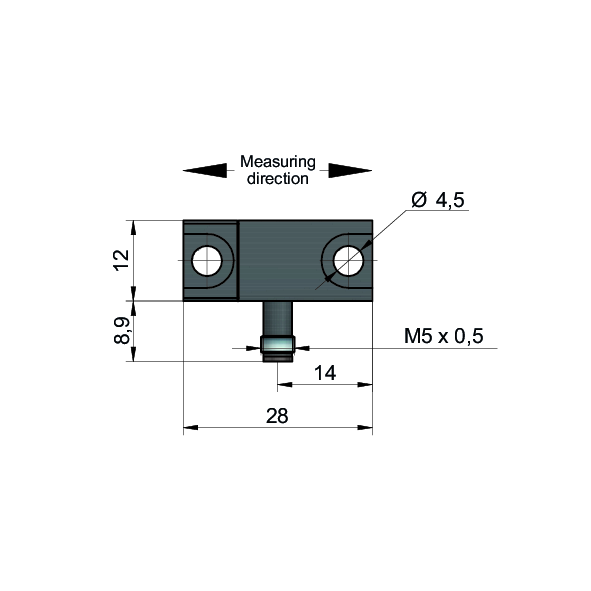

DST20 Masszeichnung Messrichtung.png | stáhnout (png, 2025-07-12 03:35:49)

Ke stažení

Datový list

Data sheet – DST20-A102P | stáhnout | zobrazit (DE, pdf, 2025-07-15 11:32:05)
Data sheet – DST20-A102P | stáhnout | zobrazit (EN, pdf, 2025-07-15 11:32:04)

Rychlý start

BA_DST20-P_EN_V02.pdf | stáhnout | zobrazit (EN, pdf, 2025-04-11 11:22:36)
BA_DST20-P_DE_V02.pdf | stáhnout | zobrazit (DE, pdf, 2025-04-11 11:22:36)

Certifikáty/ osvědčení

DoC / CoC - DXX | stáhnout | zobrazit (EN/DE/BG/CZ/DK/ES/FI/FR/GR/HU/IT/LT/LV/NL/NO/PL/PT/RO/SK/SI, pdf, 2025-04-11 11:25:28)

CAD

Dummy-CAD.stp | stáhnout (stp, 2024-07-02 13:03:26)

Příslušenství

Obsahuje:Doporučené připojení snímač-zesilovač Měřicí zesilovač Propojovací kabely pro měřící zesilovač - PLC Připojovací kabel Nástroj pro parametrizaci IO-Link Master

Doporučené připojení snímač-zesilovač

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (5) / Popis	Délka kabelu	Skladová dostupnost
CAM5.A4-11702906 Obj. číslo: 11702906 M5, female, A-coded, 4-poles; PUR, shielded, 100 cm; M8, male, 4-poles Head A: IP67; Head B: IP67	1 m	na dotaz
CAM5.A4-11702907 Obj. číslo: 11702907 M5, female, A-coded, 4-poles; PUR, shielded, 200 cm; M8, male, 4-poles Head A: IP67; Head B: IP67	2 m	na dotaz
CAM5.A4-11702908 Obj. číslo: 11702908 M5, female, A-coded, 4-poles; PUR, shielded, 300 cm; M8, male, 4-poles Head A: IP67; Head B: IP67	3 m	na dotaz
CAM5.A4-11702909 Obj. číslo: 11702909 M5, female, A-coded, 4-poles; PUR, 500 cm; M8, male, , shielded, 4-poles Head A: IP67; Head B: IP67	5 m	na dotaz
CAM5.A4-11702910 Obj. číslo: 11702910 M5, female, A-coded, shielded, 4-poles; PUR, shielded, 1000 cm; M8, male, 4-poles Head A: IP67; Head B: IP67	10 m	na dotaz

Měřicí zesilovač

Další podobné produkty naleznete v kategorii: Zesilovače pro kroužkové snímače tlaku

Foto	Produkt (3) / Popis
	DAB10-AI Obj. číslo: 11237419 4 ... 20 mA current output Analog force measurement with digital IO-Link interface Individual and application-specific parameterization
	DAB10-AL Obj. číslo: 11237417 Digital IO-Link measuring amplifier Individual and application-specific parameterization The measurement electronics for your force measurement
	DAB10-AU Obj. číslo: 11237418 +/- 10 V voltage output Analog force measurement with digital IO-Link interface Individual and application-specific parameterization

Propojovací kabely pro měřící zesilovač - PLC

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (3) / Popis	Délka kabelu	Skladová dostupnost
CAM12.A5-11230351 Obj. číslo: 11230351 M12, female, A-coded, 5-poles; PUR, 200 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	2 m	na dotaz
CAM12.A5-11230352 Obj. číslo: 11230352 M12, female, A-coded, 5-poles; PUR, 500 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	5 m	na dotaz
CAM12.A5-11230353 Obj. číslo: 11230353 M12, female, A-coded, 5-poles; PUR, 1000 cm, shielded, free cable end Dragchain capable Head A: IP65, IP66K, IP67 Cable: good resistance against chemicals, flames, oils Halogen free	10 m	na dotaz

Připojovací kabel

Další podobné produkty naleznete v kategorii: Kabely a konektory

Foto	Produkt (1) / Popis	Délka kabelu	Skladová dostupnost
	ESG 05AP0200G - Connector M5, 4 pin, straight, 2 m, shielded Obj. číslo: 11049075 Connecting cable for Connector type M5 2 m Shielded		na dotaz

Nástroj pro parametrizaci

Další podobné produkty naleznete v kategorii: Periferie

Foto	Produkt (2)	Produktová skupina	Skladová dostupnost
	SensControl - Wireless IO-Link Master Obj. číslo: 11214576	Periferie Bezdrátový IO-Link Master	1 ks
	USB-C IO-Link Master Obj. číslo: 11234828		4 ks

IO-Link Master

Další podobné produkty naleznete v kategorii: Kabely a konektory

Produkt (3) / Popis	Délka kabelu	Skladová dostupnost
CM50I.EC-11261572 Obj. číslo: 11261572 IP67 field IO-Link Master 8 Ports, Class A/B, up to 4 A per port, 400 µs cycle time Industrial Ethernet: EtherCAT IIoT: OPC UA, MQTT, JSON REST API	20 m	na dotaz
CM50I.EIP-11261573 Obj. číslo: 11261573 IP67 field IO-Link Master 8 Ports, Class A/B, up to 4 A per port, 400 µs cycle time Industrial Ethernet: EtherNet/IP IIoT: OPC UA, MQTT, JSON REST API	20 m	2 ks
CM50I.PN-11261571 Obj. číslo: 11261571 IP67 field IO-Link Master 8 Ports, Class A/B, up to 4 A per port, 400 µs cycle time Industrial Ethernet: PROFINET IIoT: OPC UA, MQTT, JSON REST API	20 m	na dotaz
