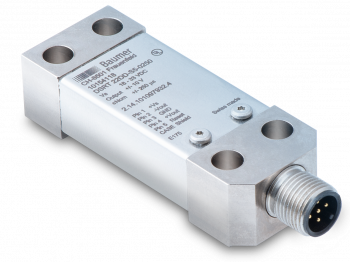

DSRT 22DA For cyclical and static measurements, without amplifier Output signal mV/V S/G full bridge High repeatability High sensitivity Na dotaz DSRT 22DD For cyclical and static measurements, with integrated amplifier Voltage output ±10 VDC Excellent signal to noise ratio High sensitivity Na dotaz DSRT 22DJ For cyclical and static measurements, with integrated amplifier CANopen Excellent signal to noise ratio High sensitivity Na dotaz DST20-A102P Measuring range ± 1000 µm/m Small dimensions 28x12x10 mm Sensor made of stainless steel, protection class IP65 For static and dynamic measurements Output signal 1.0 mV/V Connector M5, 4 pin, male Na dotaz DST20-A500P Measuring range ± 500 µm/m Small dimensions 28x12x10 mm Sensor made of stainless steel, protection class IP65 For static and dynamic measurements Output signal 1.0 mV/V Connector M5, 4 pin, male Na dotaz DST53-A102I Measuring range ± 1000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A102L Measuring range ± 1000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A102P Measuring range ±1000 µm/m Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male Na dotaz DST53-A102U Measuring range ± 1000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A202I Measuring range ± 2000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A202L Measuring range ± 2000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A202P Measuring range ±2000 µm/m Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male Na dotaz DST53-A202U Measuring range ± 2000 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A250I Measuring range ± 250 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A250L Measuring range ± 250 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-A250P Measuring range ±250 µm/m Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Output signal mV/V Bore hole distance 53 mm M12 connector, 5 pin, male Na dotaz DST53-A250U Measuring range ± 250 µm/m IO-Link interface for individual, application specific parameterization Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-Z100I Measuring range 0 ... 100 µm/m 1:1 replacement for former DSRT 22DB-S5-0100/T - Art.: 10161437 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal 4…20 mA Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-Z100U Measuring range ± 100 µm/m 1:1 replacement for former DSRT 22DD-S5-0100 - Art.: 10155311 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-Z250I Measuring range 0 ... 250 µm/m 1:1 replacement for former DSRT 22DB-S5-0250/T - Art.: 10161828 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal 4…20 mA Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-Z250U Measuring range ± 250 µm/m 1:1 replacement for former DSRT 22DD-S5-0250 - Art.: 110154118 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal ± 10 VDC Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-Z350I Measuring range 0 ... 350 µm/m 1:1 replacement for former DSRT 22DB-S5-0350/T - Art.: 11000236 Cost-effective force measurement of large forces Minimal influence on the machine structure due to low stiffness Integrated amplifier electronics, output signal 4…20 mA Bore hole distance 53 mm M12 connector, 5 pin Na dotaz DST53-Z350U Measuring range ± 350 µm/m 1:1 replacement for former DSRT 22DD-S5-0350 - Art.: 10152732 Cenově efektivní měření velkých sil Minimální vliv na konstrukci stroje díky nízké tuhosti Integrated amplifier electronics, output signal ± 10 VDC Vzdálenost otvorů 53 mm M12 konektor, 5 pinový Na dotaz DST53-Z500U Měřicí rozsah ± 500 µm/m 1:1 replacement for former DSRT 22DD-S5-0500 - Art.: 10154297 Cenově efektivní měření velkých sil Minimální vliv na konstrukci stroje díky nízké tuhosti Integrated amplifier electronics, output signal ± 10 VDC Vzdálenost otvorů 53 mm M12 konektor, 5 pinový Na dotaz DST53-Z750U Measuring range ± 750 µm/m 1:1 replacement for former DSRT 22DD-S5-0750 - Art.: 10155312 Cenově efektivní měření velkých sil Minimální vliv na konstrukci stroje díky nízké tuhosti Integrated amplifier electronics, output signal ± 10 VDC Vzdálenost otvorů 53 mm M12 konektor, 5 pinový Na dotaz DST55R-28.100.TC1.A5 Measuring range ±100 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics Na dotaz DST55R-28.100.TI1.A5 Measuring range ±100 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics Na dotaz DST55R-28.100.TU1.A5 Measuring range ±100 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics Na dotaz DST55R-28.102.TC1.A5 Measuring range ±1000 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics Na dotaz DST55R-28.102.TI1.A5 Measuring range ±1000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics Na dotaz DST55R-28.102.TU1.A5 Measuring range ±1000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics Na dotaz DST55R-28.202.TC1.A5 Measuring range ±2000 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics Na dotaz DST55R-28.202.TI1.A5 Measuring range ±2000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics Na dotaz DST55R-28.202.TU1.A5 Measuring range ±2000 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics Na dotaz DST55R-28.250.TC1.A5 Measuring range ±250 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics Na dotaz DST55R-28.250.TI1.A5 Measuring range ±250 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics Na dotaz DST55R-28.250.TU1.A5 Measuring range ±250 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics Na dotaz DST55R-28.500.TC1.A5 Measuring range ±500 µm/m Highest protection class IP 68/69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal CANopen Integrated amplifier electronics Na dotaz DST55R-28.500.TI1.A5 Measuring range ±500 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal 4…20 mA Integrated amplifier electronics Na dotaz DST55R-28.500.TU1.A5 Measuring range ±500 µm/m Highest protection rating IP 69K Tested long term seal according to proTect+ Corrosion protection C5-M Output signal ± 10 VDC Integrated amplifier electronics Na dotaz DST76-B500I Measuring range ± 500 µm/m IO-Link interface for individual, application specific parameterisation Integrated amplifier electronics Output signal 4…20 mA, IO-Link, 2 x I/O Bore hole distance 76 mm Cable outlet Na dotaz DST76-B500L Measuring range ± 500 µm/m IO-Link interface for individual, application specific parameterisation Integrated amplifier electronics Output signal IO-Link with 2 x I/O Bore hole distance 76 mm Cable outlet Okamžitě dostupné DST76-B500P Measuring range ± 500 µm/m Cost-effective force measurement of large forces Output signal mV/V Bore hole distance 76 mm Cable outlet Na dotaz DST76-B500U Measuring range ± 500 µm/m IO-Link interface for individual, application specific parameterisation Integrated amplifier electronics Output signal ± 10 VDC, IO-Link, 2 x I/O Bore hole distance 76 mm Cable outlet Na dotaz
