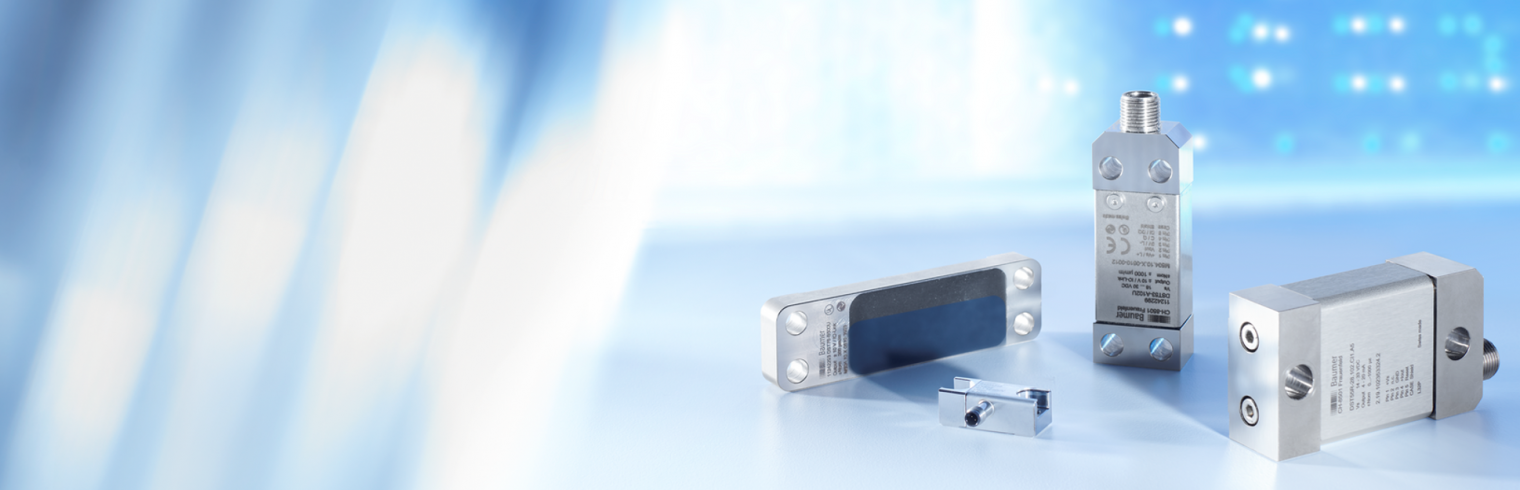

Průmyslové snímače napětí

Průmyslové snímače napětí

Baumer

Filtrace
Dostupnost
Na dotaz
(31/31)
Okamžitě dostupné
(1/1)
Zrušit
Ondřej Štěpánek
Ondřej Štěpánek
Vedoucí oddělení průmyslových snímačů a kamerových systémů
BAUMER
Ondřej Štěpánek - QR Kontakt
+420 733 101 651
ondrej.stepanek@ajptech.cz
FotoProdukt (32) / PopisDostupnost
DSRT 22DA
  • For cyclical and static measurements, without amplifier
  • Output signal mV/V
  • S/G full bridge
  • High repeatability
  • High sensitivity
Na dotaz
DSRT 22DD
  • For cyclical and static measurements, with integrated amplifier
  • Voltage output ±10 VDC
  • Excellent signal to noise ratio
  • High sensitivity
Na dotaz
DSRT 22DJ
  • For cyclical and static measurements, with integrated amplifier
  • CANopen
  • Excellent signal to noise ratio
  • High sensitivity
Na dotaz
DST20-A102P
  • Measuring range ± 1000 µm/m
  • Small dimensions 28x12x10 mm
  • Sensor made of stainless steel, protection class IP65
  • For static and dynamic measurements
  • Output signal 1.0 mV/V
  • Connector M5, 4 pin, male
Na dotaz
DST20-A500P
  • Measuring range ± 500 µm/m
  • Small dimensions 28x12x10 mm
  • Sensor made of stainless steel, protection class IP65
  • For static and dynamic measurements
  • Output signal 1.0 mV/V
  • Connector M5, 4 pin, male
Na dotaz
DST53-Z100I
  • Measuring range 0 ... 100 µm/m
  • 1:1 replacement for former DSRT 22DB-S5-0100/T - Art.: 10161437
  • Cost-effective force measurement of large forces
  • Minimal influence on the machine structure due to low stiffness
  • Integrated amplifier electronics, output signal 4…20 mA
  • Bore hole distance 53 mm
  • M12 connector, 5 pin
Na dotaz
DST53-Z100U
  • Measuring range ± 100 µm/m
  • 1:1 replacement for former DSRT 22DD-S5-0100 - Art.: 10155311
  • Cost-effective force measurement of large forces
  • Minimal influence on the machine structure due to low stiffness
  • Integrated amplifier electronics, output signal ± 10 VDC
  • Bore hole distance 53 mm
  • M12 connector, 5 pin
Na dotaz
DST53-Z250I
  • Measuring range 0 ... 250 µm/m
  • 1:1 replacement for former DSRT 22DB-S5-0250/T - Art.: 10161828
  • Cost-effective force measurement of large forces
  • Minimal influence on the machine structure due to low stiffness
  • Integrated amplifier electronics, output signal 4…20 mA
  • Bore hole distance 53 mm
  • M12 connector, 5 pin
Na dotaz
DST53-Z250U
  • Measuring range ± 250 µm/m
  • 1:1 replacement for former DSRT 22DD-S5-0250 - Art.: 110154118
  • Cost-effective force measurement of large forces
  • Minimal influence on the machine structure due to low stiffness
  • Integrated amplifier electronics, output signal ± 10 VDC
  • Bore hole distance 53 mm
  • M12 connector, 5 pin
Na dotaz
DST53-Z350I
  • Measuring range 0 ... 350 µm/m
  • 1:1 replacement for former DSRT 22DB-S5-0350/T - Art.: 11000236
  • Cost-effective force measurement of large forces
  • Minimal influence on the machine structure due to low stiffness
  • Integrated amplifier electronics, output signal 4…20 mA
  • Bore hole distance 53 mm
  • M12 connector, 5 pin
Na dotaz
DST53-Z350U
  • Measuring range ± 350 µm/m
  • 1:1 replacement for former DSRT 22DD-S5-0350 - Art.: 10152732
  • Cenově efektivní měření velkých sil
  • Minimální vliv na konstrukci stroje díky nízké tuhosti
  • Integrated amplifier electronics, output signal ± 10 VDC
  • Vzdálenost otvorů 53 mm
  • M12 konektor, 5 pinový
Na dotaz
DST53-Z500U
  • Měřicí rozsah ± 500 µm/m
  • 1:1 replacement for former DSRT 22DD-S5-0500 - Art.: 10154297
  • Cenově efektivní měření velkých sil
  • Minimální vliv na konstrukci stroje díky nízké tuhosti
  • Integrated amplifier electronics, output signal ± 10 VDC
  • Vzdálenost otvorů 53 mm
  • M12 konektor, 5 pinový
Na dotaz
DST53-Z750U
  • Measuring range ± 750 µm/m
  • 1:1 replacement for former DSRT 22DD-S5-0750 - Art.: 10155312
  • Cenově efektivní měření velkých sil
  • Minimální vliv na konstrukci stroje díky nízké tuhosti
  • Integrated amplifier electronics, output signal ± 10 VDC
  • Vzdálenost otvorů 53 mm
  • M12 konektor, 5 pinový
Na dotaz
DST55R-28.100.TC1.A5
  • Measuring range ±100 µm/m
  • Highest protection class IP 68/69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal CANopen
  • Integrated amplifier electronics
Na dotaz
DST55R-28.100.TI1.A5
  • Measuring range ±100 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal 4…20 mA
  • Integrated amplifier electronics
Na dotaz
DST55R-28.100.TU1.A5
  • Measuring range ±100 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal ± 10 VDC
  • Integrated amplifier electronics
Na dotaz
DST55R-28.102.TC1.A5
  • Measuring range ±1000 µm/m
  • Highest protection class IP 68/69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal CANopen
  • Integrated amplifier electronics
Na dotaz
DST55R-28.102.TI1.A5
  • Measuring range ±1000 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal 4…20 mA
  • Integrated amplifier electronics
Na dotaz
DST55R-28.102.TU1.A5
  • Measuring range ±1000 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal ± 10 VDC
  • Integrated amplifier electronics
Na dotaz
DST55R-28.202.TC1.A5
  • Measuring range ±2000 µm/m
  • Highest protection class IP 68/69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal CANopen
  • Integrated amplifier electronics
Na dotaz
DST55R-28.202.TI1.A5
  • Measuring range ±2000 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal 4…20 mA
  • Integrated amplifier electronics
Na dotaz
DST55R-28.202.TU1.A5
  • Measuring range ±2000 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal ± 10 VDC
  • Integrated amplifier electronics
Na dotaz
DST55R-28.250.TC1.A5
  • Measuring range ±250 µm/m
  • Highest protection class IP 68/69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal CANopen
  • Integrated amplifier electronics
Na dotaz
DST55R-28.250.TI1.A5
  • Measuring range ±250 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal 4…20 mA
  • Integrated amplifier electronics
Na dotaz
DST55R-28.250.TU1.A5
  • Measuring range ±250 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal ± 10 VDC
  • Integrated amplifier electronics
Na dotaz
DST55R-28.500.TC1.A5
  • Measuring range ±500 µm/m
  • Highest protection class IP 68/69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal CANopen
  • Integrated amplifier electronics
Na dotaz
DST55R-28.500.TI1.A5
  • Measuring range ±500 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal 4…20 mA
  • Integrated amplifier electronics
Na dotaz
DST55R-28.500.TU1.A5
  • Measuring range ±500 µm/m
  • Highest protection rating IP 69K
  • Tested long term seal according to proTect+
  • Corrosion protection C5-M
  • Output signal ± 10 VDC
  • Integrated amplifier electronics
Na dotaz
DST76-B500I
  • Measuring range ± 500 µm/m
  • IO-Link interface for individual, application specific parameterisation
  • Integrated amplifier electronics
  • Output signal 4…20 mA, IO-Link, 2 x I/O
  • Bore hole distance 76 mm
  • Cable outlet
Na dotaz
DST76-B500L
  • Measuring range ± 500 µm/m
  • IO-Link interface for individual, application specific parameterisation
  • Integrated amplifier electronics
  • Output signal IO-Link with 2 x I/O
  • Bore hole distance 76 mm
  • Cable outlet
Okamžitě dostupné
DST76-B500P
  • Measuring range ± 500 µm/m
  • Cost-effective force measurement of large forces
  • Output signal mV/V
  • Bore hole distance 76 mm
  • Cable outlet
Na dotaz
DST76-B500U
  • Measuring range ± 500 µm/m
  • IO-Link interface for individual, application specific parameterisation
  • Integrated amplifier electronics
  • Output signal ± 10 VDC, IO-Link, 2 x I/O
  • Bore hole distance 76 mm
  • Cable outlet
Na dotaz

Senzory napětí jsou chytrou alternativou pro měření síly.

Jeden senzor pro různé rozsahy síly a aplikace. Rychlá a snadná implementace do stávajících strojů a systémů.

:: Generated at: 20.03.2025 02:51.27 :: Generated in: 0.321 sec :: SQL calls: 70 | SqlCacheCalls: 303 :: Max memory: 8.69mb ::
:: UserID: :: Debug all: 1 :: Version: frams_sys_func(20240408), frams_sys_form(20250224), frams_func_web_shared(20240812), frams_func_web_show(20240813), frams_web_modules(20230925), ::

Traced system calls log (133 / 134)TakenRuntimeMemory
SYS INIT | Basic functions loaded0.00010.0001352.09 kb
SYS INIT | Web functions loaded0.00000.0001353.64 kb
SQL (std)| DB connecting start DB 477_ajptech@477_ajptech - flush before0.00000.0001360.44 kb
SQL (std)| DB connected to DB 477_ajptech0.00910.0092404.09 kb
SQL (std)| Charset server default: utf8mb4 (no need to change)0.00000.0092405.05 kb
SYS INIT | Web settings from DB | Start0.00000.0092403.16 kb
CACHE FILE | READ | sys_settings | Unserialized0.00110.0103484.05 kb
SYS INIT | Web settings from DB | Loaded0.00000.0103448.74 kb
SYS AUTOLOAD CLASS | mod_gallery | Start0.00010.0104450.38 kb
SYS AUTOLOAD CLASS | mod_gallery | Loaded0.00000.0104452.08 kb
SYS AUTOLOAD CLASS | mod_search | Start0.00000.0104452.31 kb
SYS AUTOLOAD CLASS | mod_search | Loaded0.00000.0104453.35 kb
SYS AUTOLOAD CLASS | mod_cookie_eu | Start0.00000.0104453.35 kb
SYS AUTOLOAD CLASS | mod_cookie_eu | Loaded0.00010.0105454.98 kb
SYS AUTOLOAD CLASS | mod_sliderbx | Start0.00000.0105454.98 kb
SYS AUTOLOAD CLASS | mod_sliderbx | Loaded0.00000.0105455.85 kb
SYS INIT | LoadWebModules | Start0.00000.0105455.55 kb
SYS INIT | LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpcat/_functions.php | Done0.00010.0106500.88 kb
SYS INIT | LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpeople/_functions.php | Done0.00000.0106506.40 kb
SYS INIT | LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpart/_functions.php | Done0.00010.0107533.10 kb
SYS INIT | LoadWebModules /storage/var/www/ajptech.cz/domains/www/_pr/mod_ajpusec/_functions.php | Done0.00000.0107534.87 kb
SYS INIT | Web modules loaded0.00000.0107533.92 kb
TIMING | GetPageInfo - Start0.00000.0107533.92 kb
SQL (std)| SELECT * FROM `webpages_aliases` WHERE `address_complete`='produkty/prumyslove-snimace/snimace-pro-detekci-a-mereni/snimace-sily-a-napeti/snimace-napeti/prumyslove-snimace-napeti' AND `active`='1' LIMIT 1 0.03730.0480552.41 kb
SQL (std)| SELECT * FROM `webpages_data` WHERE `id`='481' LIMIT 10.00100.0490580.23 kb
SQL (std)| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='106' LIMIT 10.00440.0534591.93 kb
SQL (std)| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='96' LIMIT 10.00080.0542597.25 kb
SQL (std)| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='18' LIMIT 10.00080.0550600.41 kb
SQL (std)| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='15' LIMIT 10.00060.0556603.96 kb
SQL (std)| SELECT `id`,`id_parent`,`default_page`,`name_address_complete`,`name_address`,`webpages_aliases_hash`,`name`,`name_menu`,`name_header_force`,`idsw_languages` FROM `webpages_data` WHERE `id`='2' LIMIT 10.00090.0565606.78 kb
TIMING | GetPageInfo - Done0.00010.0566585.24 kb
SQL (std)| SELECT * FROM `mod_ajpcat_categories` WHERE `id`='441' LIMIT 10.00100.0576607.61 kb
TIMING | OG Image - Start gen info0.00020.0578585.72 kb
TIMING | OG Image - End gen info0.00100.0588587.45 kb
CACHE FILE | GET | mod_cookie_eu ()0.00040.0592592.59 kb
CACHE FILE | READ | mod_cookie_eu | Unserialized0.00120.0604610.84 kb
TIMING | Main menu - Start generate0.00060.0610610.82 kb
CACHE FILE | GET | sys_menu (TO_LEVEL;1|IDSW_LANGUAGES;1|SET_MENU_ID;menu|SET_MENU_CLASS;menu|PRECACHE_URLS;3765dc1068dc7251097873029d8365d2|LEVEL;0|)0.00010.0611622.51 kb
CACHE FILE | READ | sys_menu | Unserialized0.00110.0622727.09 kb
TIMING | Main menu - End generate0.00020.0624670.55 kb
CACHE FILE | GET | mod_search_web_show (show)0.00010.0625671.30 kb
CACHE FILE | READ | mod_search_web_show | Unserialized0.00110.0636679.95 kb
TIMING | Text - Start generate0.00040.0640684.74 kb
SQL (std)| SELECT * FROM mod_ajpcat_categories WHERE published_cz='1' AND del='0' AND (id_parent='441') ORDER BY priority DESC, name_cz ASC 0.00160.0656709.38 kb
CACHE FILE | GET | mod_ajpcat_filtrace_items ()0.00000.0656691.21 kb
CACHE FILE | FAILED | mod_ajpcat_filtrace_items () | OVERDATE / NOT EXISTS - NOT USED0.00130.0669691.40 kb
CACHE FILE | CATCH START | mod_ajpcat_filtrace_items 0.00000.0669691.58 kb
SQL (std)| SELECT `id`, `idl_availability`, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options` FROM `mod_ajpcat_items` WHERE `published_cz`='1' AND `del`='0' AND (`unavailable`='0' OR `abra_quantity`>'0') AND ( `id_categories`='441' )0.00790.0748764.02 kb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_manufacturer` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00190.07671.18 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_availability` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.07761.14 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_type` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00120.07881.15 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_principle` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.07971.16 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_base` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00080.08051.16 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_color` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00100.08151.17 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_surface` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00150.08301.19 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_surface_type` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00070.08371.19 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_surface_structure` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00060.08431.20 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_volume` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00080.08511.20 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_marking_type` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00100.08611.21 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_marking_method` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00220.08831.22 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_power_supply` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00070.08901.22 mb
SQL (std)| SELECT `id`,`name_cz`,`priority` FROM `mod_ajpcat_list_marking_size` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.08991.22 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_product_group2` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.01510.10501.30 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_model_select` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00560.11061.66 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_class` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00390.11451.71 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_emitter_reciever` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00440.11891.72 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_scanning_range` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00170.12061.73 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_sensing_distance_max` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00740.12801.80 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_features_interface` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00560.13362.08 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_type` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00410.13772.14 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_dimensions` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00160.13932.17 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_housing_version` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00140.14072.31 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_size_flange` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00100.14172.34 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_steps_turn` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.14262.35 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_turns_number` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.14352.37 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_light_source` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00080.14432.38 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_output_interface` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00130.14562.40 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_output_circuit_interface` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00530.15092.45 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_operating_temperature` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00310.15402.58 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_resolution` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.01150.16552.70 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_particularchar` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00430.16983.01 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_shaft_solid` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00290.17273.18 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_shaft_hollow` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00180.17453.30 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_pulses_waves` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00120.17573.36 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_output_stages` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00100.17673.38 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_connection` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00150.17823.42 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_connection_types` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00130.17953.46 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_protection_din` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00100.18053.47 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_approvals` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00110.18163.52 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_data_interface` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00420.18583.54 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_resolution1` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.18673.55 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_frame_rate` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.18763.55 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_protection_class` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00110.18873.57 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_color_models` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00090.18963.60 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_sensor` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00110.19073.62 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_pixel_size` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00280.19353.71 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_sensor_type` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00130.19483.73 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_shutter_type` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00080.19563.75 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_application_field` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00200.19763.75 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_cable_length` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00080.19843.76 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_nominal_force` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00100.19943.78 mb
SQL (std)| SELECT `id`,`name_cz`,`priority`,`baumer_value` FROM `mod_ajpcat_list_b_options` WHERE `del`='0' AND `published_cz`='1' ORDER BY `priority` DESC, `name_cz` ASC 0.00220.20163.83 mb
SQL (std)| SELECT `id`,`address_complete`,`idsw_languages`,`default_page`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `active`='1' AND (`hash`='75fd8d3b3a0616fec04967bf79985d53' OR `hash`='c4a3e9b2871ff29ee3d7c49488aee2bf' OR `hash`='a86f5124416166c96d0d3fb309c3e68b' OR `hash`='1f9b5902779cee04aebc43b9af3df1ff' OR `hash`='2b96d36fc5d9bd306f89aa69406877a0' OR `hash`='4e6c289fc828cd2b872f71f2039f864e' OR `hash`='78dbbdf183edda4cfc53722e7b79f950' OR `hash`='0005ba53dde05134825d44e36d160e41' OR `hash`='40fb1e603e6eadd29f6c2329927bf3d1' OR `hash`='54b68a818c216a5b65f521e3382fa428' OR `hash`='48399f1d2a5af65e6a94ffae52ace898' OR `hash`='766f269a7f46a959e6ad156a01914b6a' OR `hash`='00b0b7342032892c82f3723e53553dcb' OR `hash`='caa237bb6fa411861d39a3788cad79a0' OR `hash`='23fd7e686e67353b0333db9a7050728d' OR `hash`='ea0eec799bff035e8daefe97a6564305' OR `hash`='26ee36e1b3016d1c756c9a4f2f2b29e6' OR `hash`='22f8a147d51877b403c8d051883bc159' OR `hash`='a26c06089034e65f883becb493b73c7e' OR `hash`='56aaa804c1bc766898b9523d5a18ec81' OR `hash`='83b4f66de713ccf6ed6714031bb80621' OR `hash`='3e2ccbf57a2e3f0c39430dadb6b07d47' OR `hash`='3885991e8cd70d17147a760c9de7f831' OR `hash`='56e19c2716cf0c08a0803879c12f22f4' OR `hash`='34b55b3b31eebb4e32f4102a5d961847' OR `hash`='2f81fb0f632fcb6b3000d3e3df68a8c0' OR `hash`='9edb8e6c608546fa08d92512bfec8431' OR `hash`='591a3678b7a9e8d96584257ad0cef6b0' OR `hash`='894ddfe23758f72f109bf30868f07e63' OR `hash`='d8770b83746d05ba46aa202402aade84' OR `hash`='4d4d594c46251c96175bf9be323c4dee' OR `hash`='2831cd33368ca32634462f7e1a674fd4') 0.00290.20454.02 mb
CACHE FILE | SET | mod_ajpcat_filtrace_items () ()0.08250.28708.69 mb
SQL (std)| SELECT * FROM mod_ajpeople_items WHERE published_cz='1' AND del='0' AND ( id='38' ) ORDER BY priority DESC, name_cz ASC 0.00130.28833.21 mb
SQL (std)| SELECT `id`,`address_complete`,`idsw_languages`,`id_webpages_data`,`hash`,`mod_class`,`mod_func_settings`,`mod_func_var_both` FROM `webpages_aliases` WHERE `hash`='68bc03b83000ded80b18574e14f41afc' LIMIT 10.00070.28903.24 mb
SQL (std)| SELECT id, `idl_manufacturer`, `idl_type`, `idl_principle`, `idl_base`, `idl_color`, `idl_surface`, `idl_surface_type`, `idl_surface_structure`, `idl_volume`, `idl_marking_type`, `idl_marking_method`, `idl_power_supply`, `idl_marking_size`, `idl_availability`, `idl_b_product_group2`, `idl_b_model_select`, `idl_b_class`, `idl_b_emitter_reciever`, `idl_b_scanning_range`, `idl_b_sensing_distance_max`, `idl_b_features_interface`, `idl_b_type`, `idl_b_dimensions`, `idl_b_housing_version`, `idl_b_size_flange`, `idl_b_steps_turn`, `idl_b_turns_number`, `idl_b_light_source`, `idl_b_output_interface`, `idl_b_output_circuit_interface`, `idl_b_operating_temperature`, `idl_b_resolution`, `idl_b_particularchar`, `idl_b_shaft_solid`, `idl_b_shaft_hollow`, `idl_b_pulses_waves`, `idl_b_output_stages`, `idl_b_connection`, `idl_b_connection_types`, `idl_b_protection_din`, `idl_b_approvals`, `idl_b_data_interface`, `idl_b_resolution1`, `idl_b_frame_rate`, `idl_b_protection_class`, `idl_b_color_models`, `idl_b_sensor`, `idl_b_pixel_size`, `idl_b_sensor_type`, `idl_b_shutter_type`, `idl_b_application_field`, `idl_b_cable_length`, `idl_b_nominal_force`, `idl_b_options`,id_categories,id_baumer_items,abra_quantity, abra_updated, abra_codes,abra_price_czk_nvat, abra_price_eur_nvat,unavailable, last_updated,img_main, code, name_cz, name_menu_cz, auto_text_short_cz, text_short_cz FROM mod_ajpcat_items WHERE published_cz='1' AND del='0' AND (`unavailable`='0' OR `abra_quantity`>0) AND ( id_categories='441' ) ORDER BY priority DESC, name_cz ASC 0.01390.30293.30 mb
SQL (std)| SELECT * FROM `mod_ajpcat_blocks` WHERE `id_categories`='441' AND del='0' ORDER BY priority DESC, id ASC 0.00370.30663.45 mb
TIMING | Text - End generate0.00000.30663.43 mb
CACHE FILE | GET | mod_ajpcat_show_footer_logos (all)0.00070.30733.40 mb
CACHE FILE | READ | mod_ajpcat_show_footer_logos | Unserialized0.00120.30853.41 mb
TIMING | Submenu menu (ID_PARENT: 2) - Start generate0.00010.30863.40 mb
CACHE FILE | GET | sys_menu (ID_PARENT;2|IDSW_LANGUAGES;1|SET_MENU_ID;submenu|SET_MENU_CLASS;submenu|SCHEMA_PARENTNAME;2|LEVEL;0|)0.00010.30873.40 mb
CACHE FILE | READ | sys_menu | Unserialized0.00140.31013.42 mb
TIMING | Submenu menu (ID_PARENT: 2) - End generate0.00010.31023.41 mb
TIMING | Submenu menu (ID_PARENT: 3) - Start generate0.00000.31023.41 mb
CACHE FILE | GET | sys_menu (ID_PARENT;3|IDSW_LANGUAGES;1|SET_MENU_ID;submenu|SET_MENU_CLASS;submenu|SCHEMA_PARENTNAME;3|LEVEL;0|)0.00010.31033.41 mb
CACHE FILE | READ | sys_menu | Unserialized0.00110.31143.41 mb
TIMING | Submenu menu (ID_PARENT: 3) - End generate0.00000.31143.41 mb
TIMING | Submenu menu (ID_PARENT: 7) - Start generate0.00000.31143.41 mb
CACHE FILE | GET | sys_menu (ID_PARENT;7|IDSW_LANGUAGES;1|SET_MENU_ID;submenu|SET_MENU_CLASS;submenu|SCHEMA_PARENTNAME;7|LEVEL;0|)0.00010.31153.42 mb
CACHE FILE | READ | sys_menu | Unserialized0.00100.31253.44 mb
TIMING | Submenu menu (ID_PARENT: 7) - End generate0.00020.31273.42 mb
CACHE FILE | GET | mod_cform_web_show ()0.00000.31273.42 mb
CACHE FILE | READ | mod_cform_web_show | Unserialized0.00150.31423.42 mb
SQL (std)| SELECT * FROM `mod_cform` WHERE `id`='1' LIMIT 10.00110.31533.44 mb
TIMING | Footer menu - Start generate0.00010.31543.43 mb
CACHE FILE | GET | sys_menu (FOOTER_MENU;1-footer_menu|)0.00000.31543.43 mb
CACHE FILE | READ | sys_menu | Unserialized0.00150.31693.44 mb
CACHE FILE | GET | mod_cform_web_show ()0.00000.31693.43 mb
CACHE FILE | READ | mod_cform_web_show | Unserialized0.00100.31793.48 mb
FLUSH | size: 0.00230.32023.47 mb
SQL (std)| Disconnected link0.00150.32173.46 mb
